8
Preparation
If your AV receiver features video output jacks, connect
this unit to the AV receiver (and then to your TV). This
enables you to use one TV for several different video
sources (LD, VDR etc.) by simply switching the input
source selector on your AV receiver.
This unit features three types of video output jacks
(Component, Video and S-Video). Connect the
appropriate video output jack to your equipment.
SCAN MODE selector
This selector switches the type of output signal from the
COMPONENT VIDEO OUT jacks on this unit.
INTERLACE:
Select INTERLACE if you are connecting the component
to a standard (interlace format) TV.
PROGRESSIVE:
Select PROGRESSIVE if your TV accepts NTSC
progressive or PAL progressive signals. This setting will
enable you to enjoy accurate color reproduction and high
quality images. This unit features DCDi circuit. The
PROGRESSIVE indicator on the front panel lights up
during progressive playback.
Notes:
– In the PROGRESSIVE mode, 4:3 aspect images are
stretched horizontally on the wide screen TV. We
recommend to change the TV screen’s aspect ratio
settings for progressive signals if you wish to watch the
original aspect ratio images without distortion. You can
also change the aspect ratio settings in the [4:3 Aspect]
parameter in the On-screen menu.
– Some TVs and projectors are not compatible with this
unit. If you notice picture distortion when outputting the
progressive signals, switch the SCAN MODE selector to
INTERLACE.
1 Connect the AC power cord to the power outlet.
2 Switch on the TV and this unit.
3 Set the TV to the correct Video IN channel. (e.g. EXT1,
EXT2, AV1, AV2, AUDIO/VIDEO, etc. refer to your TV
owner’s manual for detail.)
➜ The front panel display lights up and the default screen
appears on the TV.
4 If you are using an external equipment (e.g. audio system
or receiver), turn them on and select the appropriate
input source that was used to connect to this unit. Refer
to the equipment owner’s manual for detail.
Note:
– If you do not have a proper picture or sound, refer to
“Troubleshooting” section.

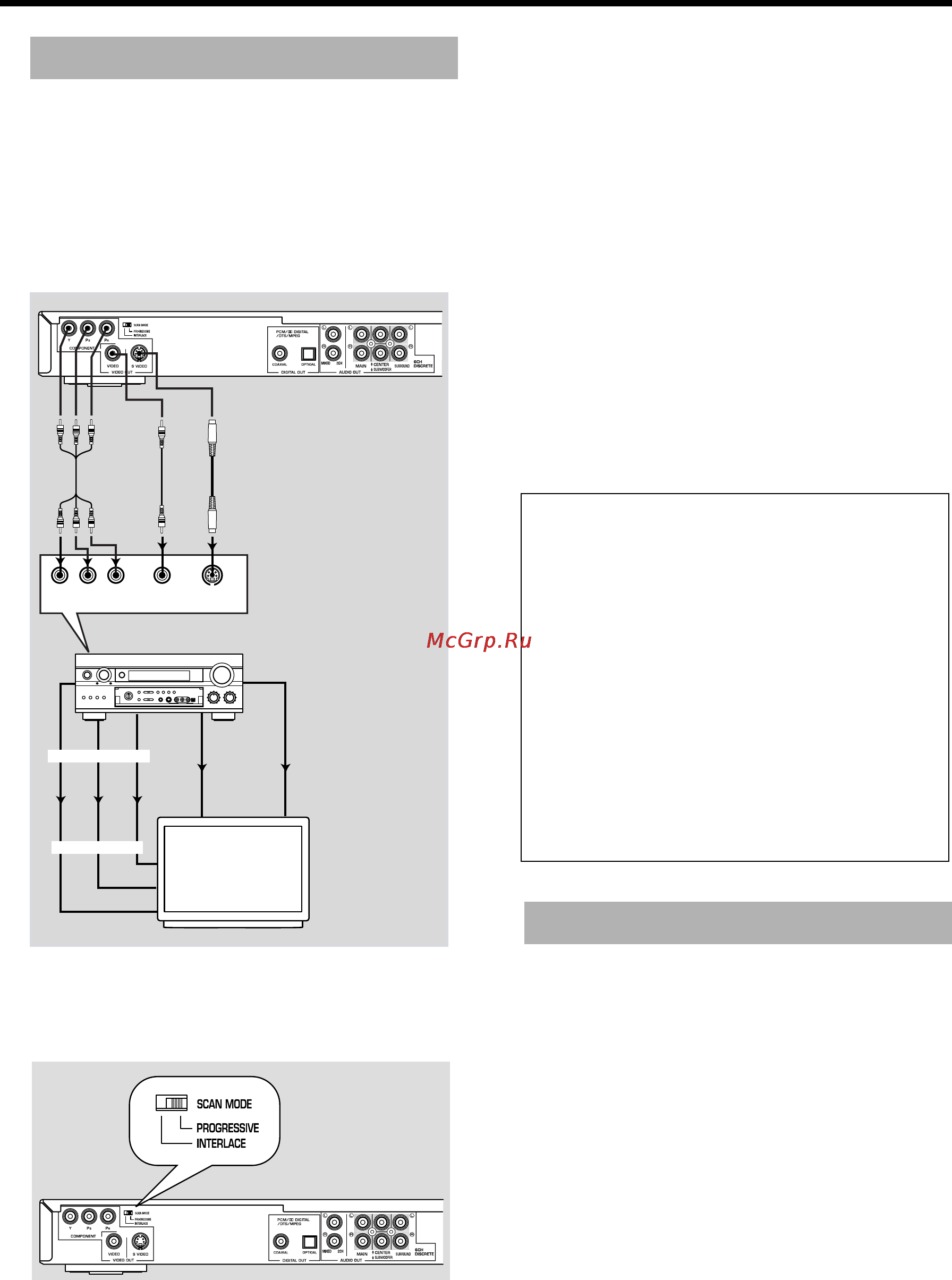

Video connections
COMPONENT IN
S VIDEO
IN
VIDEO
IN
YPB/CB PR/CR
AV receiver
VIDEO
OUT
VIDEO
IN
S VIDEO OUT
S VIDEO
IN
TV
COMPONENT IN
COMPONENT OUT
Y
PB/CB PR/CR
Y
PB/CB
PR/CR
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION TO
THE “STANDARD DEFINITION” OUTPUT. IF
THERE ARE QUESTIONS REGARDING OUR VIDEO
MONITOR COMPATIBILITY WITH THIS MODEL
525P AND 625P DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
This unit is compatible with the complete line of
YAMAHA products, including the projectors DPX-
1100, LPX-510 and the plasma monitor PDM-4210.
Switching on
