5
English
Functional Overview
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.

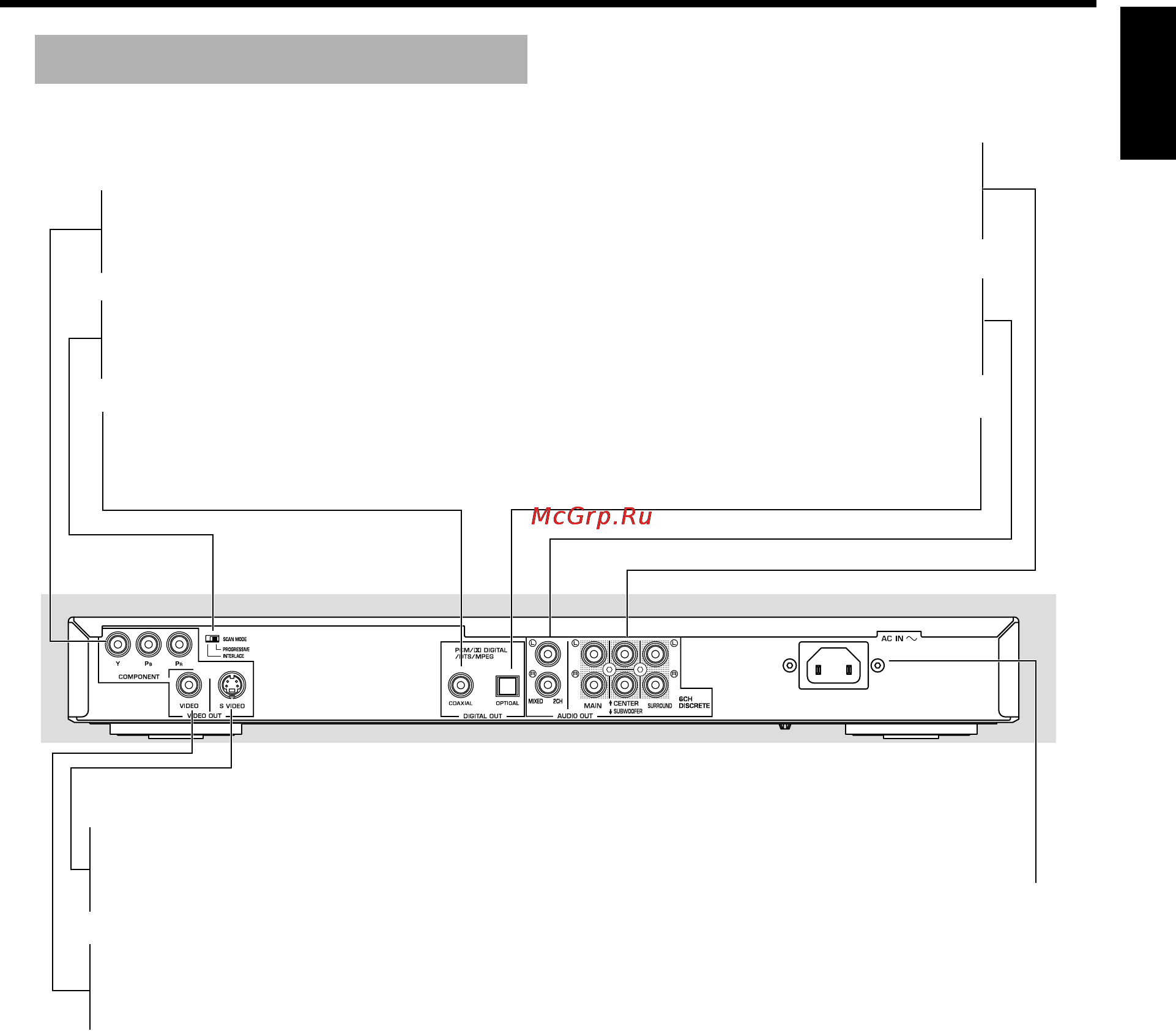

Rear panel
COMPONENT video outputs
– connect to an AV receiver with
Y P
B/CB PR/CR inputs
COAXIAL digital audio output
– connects to an audio input on
digital (coaxial) audio equipment
SCAN MODE
– switches the component video output signals
between progressive and interlace
OPTICAL digital audio output
– connects to an audio input
on digital (optical) audio equipment
AC IN (Mains)
– connects to a standard AC outlet
MIXED 2CH audio outputs
– connect to audio inputs on
your AV receiver or stereo system
6CH DISCRETE audio outputs
– connect to an AV receiver
with 6-ch discrete audio inputs
S VIDEO output
– connects to an S-Video input
on your AV receiver
VIDEO output (composite video out)
– connects to a video input
on your AV receiver
