TL-WDR3500 N600 Wireless Dual Band Router
- 103 -

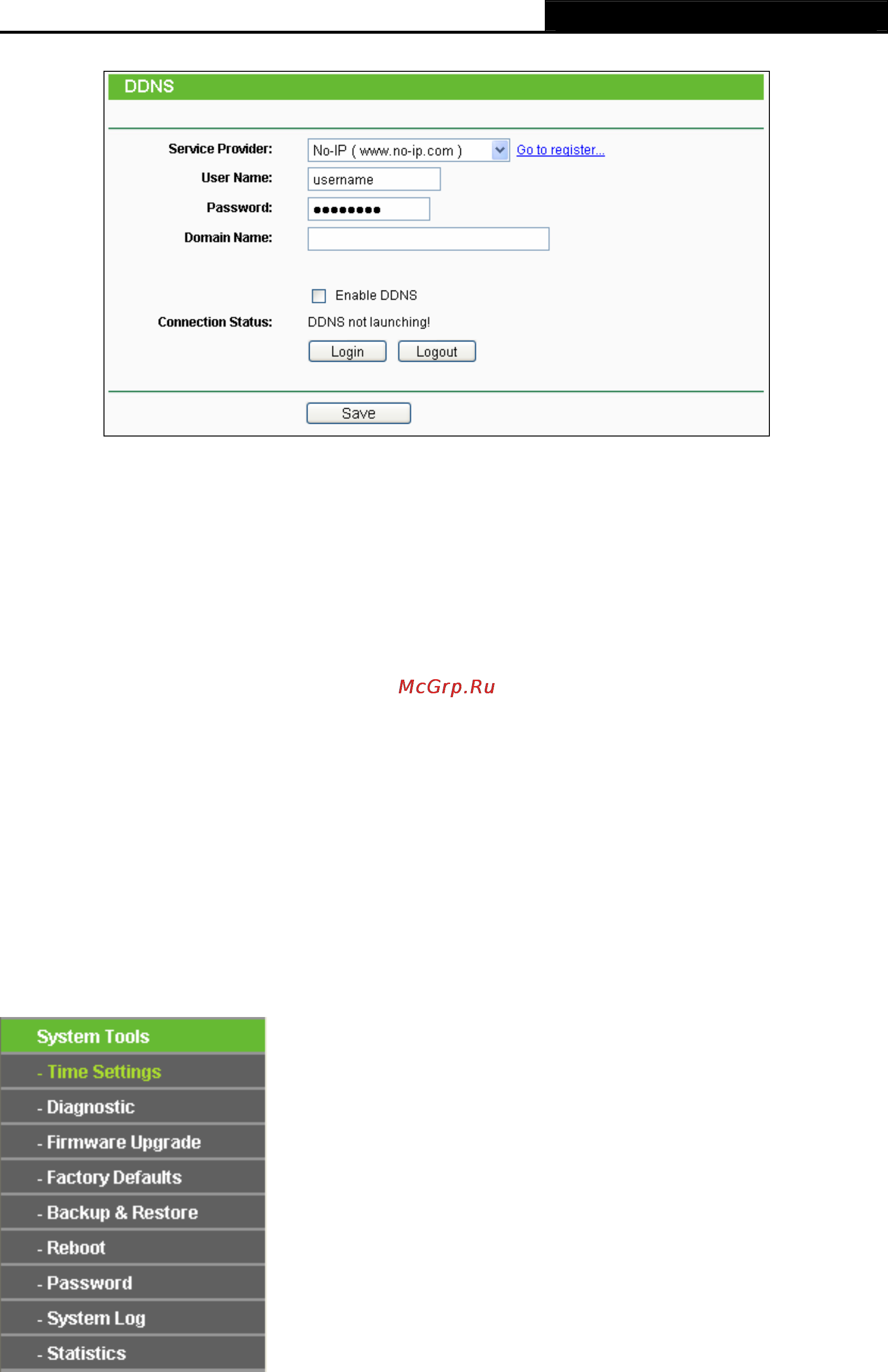

Figure 4-106 No-ip.com DDNS Settings
der.
ce connection is displayed here.
Logout to log out the DDNS service.
ick the Logout
ername and password and click the Login button.
4.19 System Tools
To s
et up for DDNS, follow these instructions:
1. Enter the User Name for your DDNS account.
2. Enter the Password for your DDNS account.
3. Enter the Domain Name you received from dynamic DNS service provi
4. Click the Login button to login to the DDNS service.
Connection Status - The status of the DDNS servi
Click
Note:
If you want to login again with another account after a successful login, please cl
button, then input your new us
Figure 4-107 The System Tools menu
