Tp-Link TL-WDR3500 [70/134] Usb settings

TL-WDR3500 N600 Wireless Dual Band Router

- 61 -

4.9 USB Settings

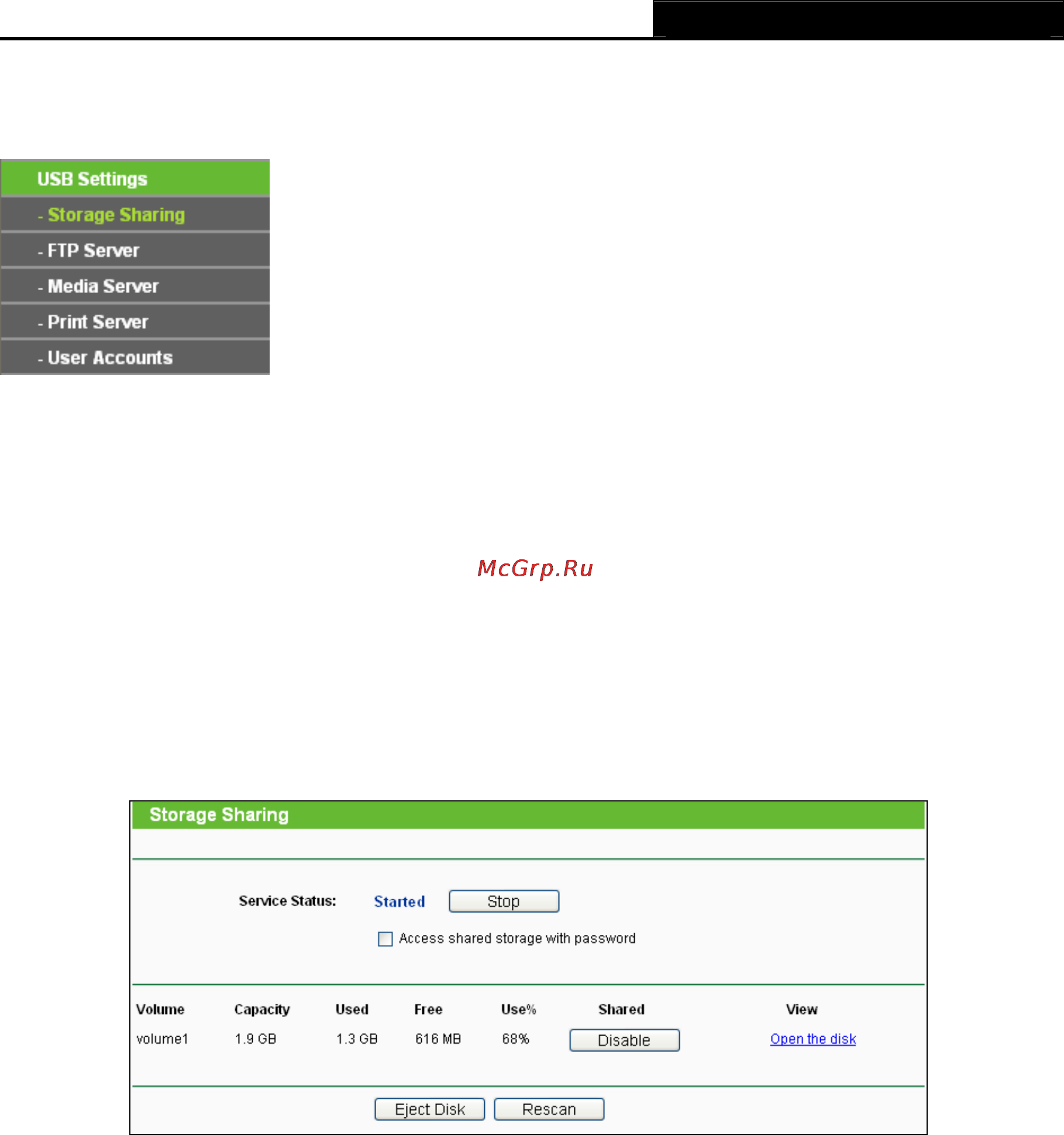

Figure 4-48 The USB Settings menu

There are four submenus under the USB Settings menu (shown in Figure 4-48), S

torage Sharing,

FTP Server, Media Server, Print Server and User Accounts. Click any of them, and you will be

able to configure the corresponding function.

4.9.1 Storage Sharing

Choose menu “USB Settings→Storage Sharing”, you can configure a USB disk drive attached

to the Router and view volume and share properties such as share name, capacity, used space,

and free space, etc on this page as shown below.

Figure 4-49 Storage Sharing

 Service Status - Indicates the Network Sharing service's current status. You can click the

Start button to start the Storage Sharing service and click the Stop button to stop it.

 Volume - The volume name of the USB drive the users have access to.

 Capacity - The storage capacity of the USB driver.

 Used - The used space of the USB driver.

 Free - The available space of the USB driver.

 Use% - The percentage of the used space.

 Shared - Indicates the shared or non-shared status of the volume. When the volume is

shared, you can click the Disable to stop sharing the volume; when volume is non-shared,

you can click the Enable button to share the volume.
