TL-WDR3500 N600 Wireless Dual Band Router
- 122 -

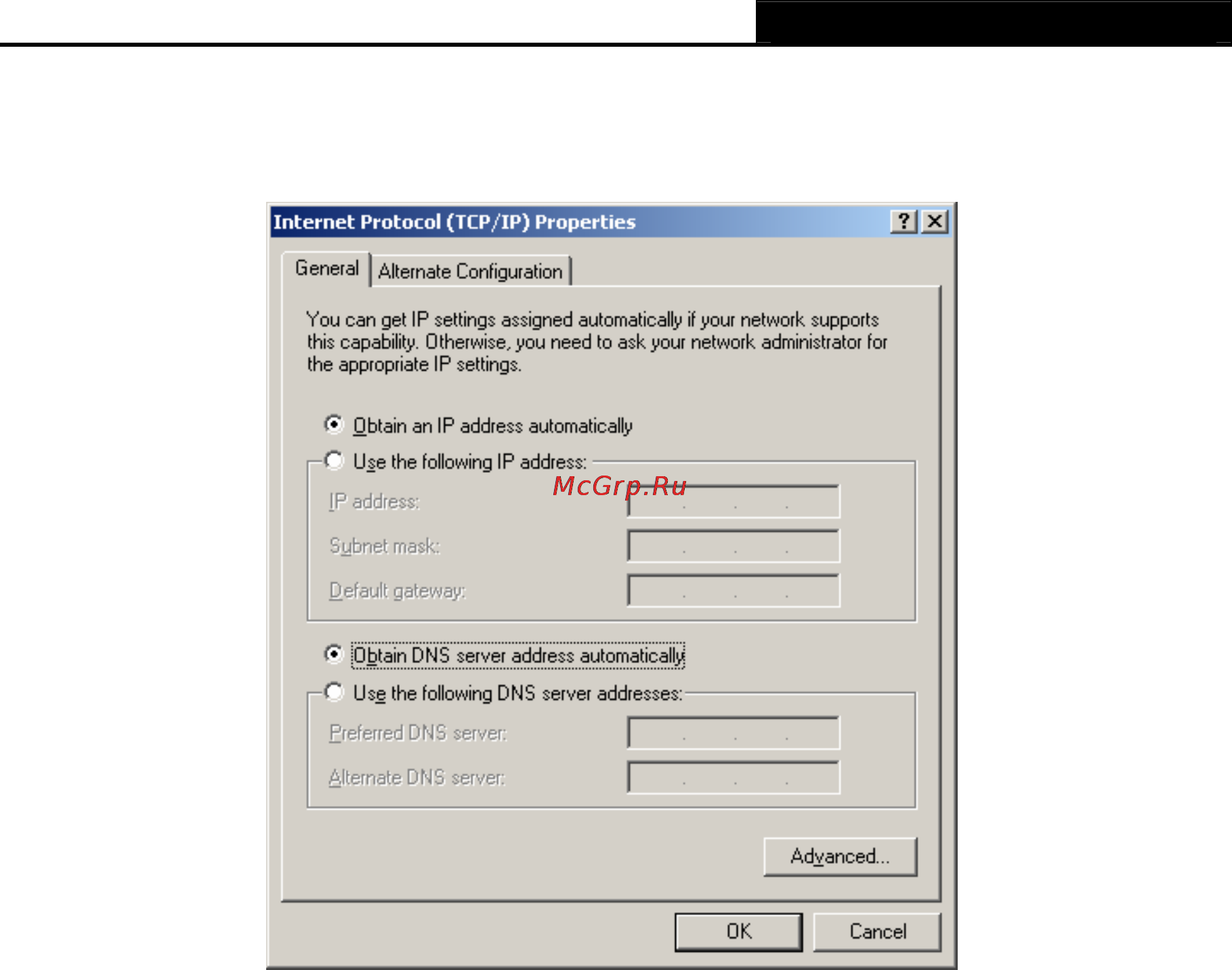

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as
shown in the Figure below:
Figure B-3
