TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router User Guide

- 15 -

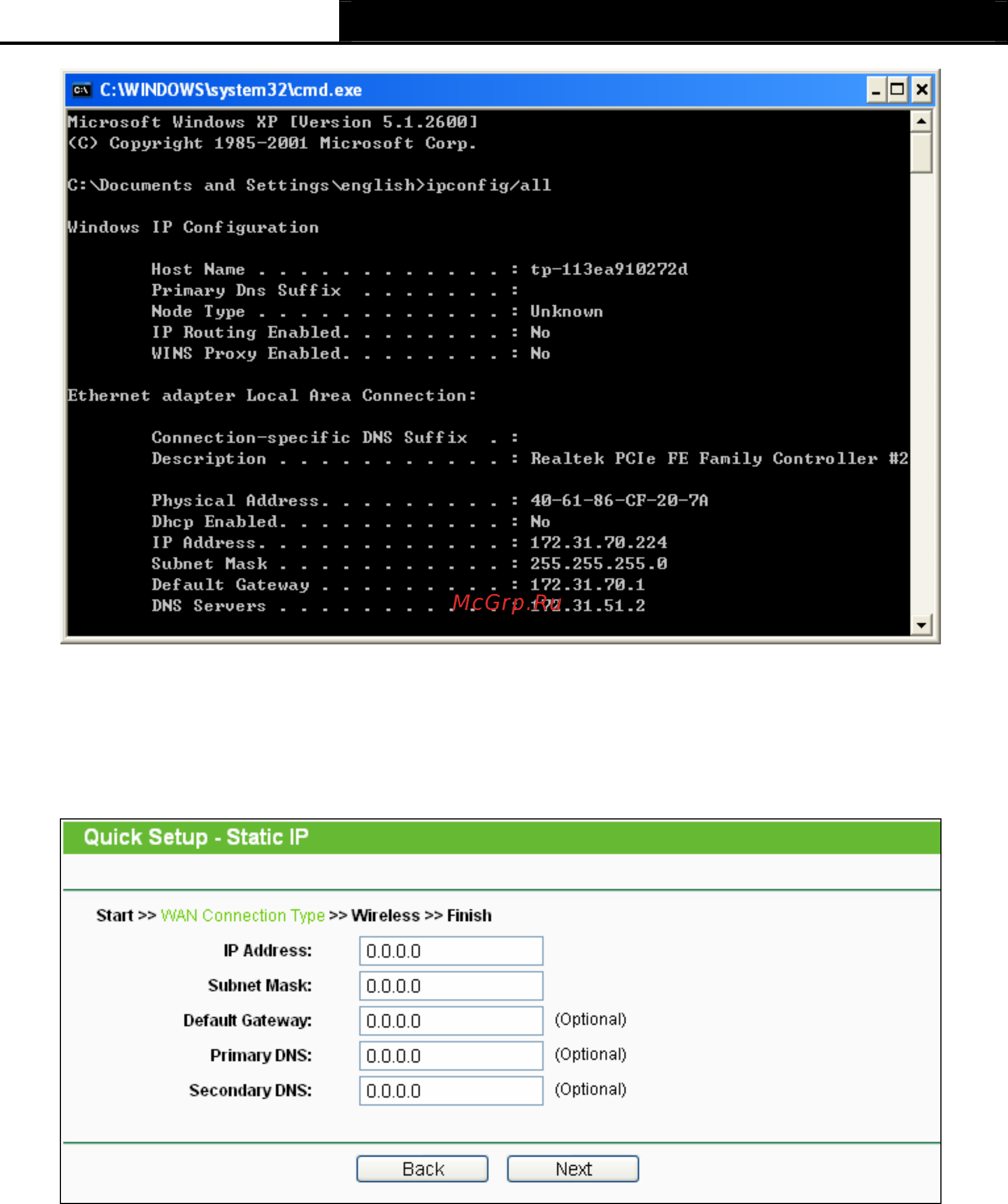

Figure 3-11 Find MAC Address

3) If the connection type detected is Static IP, the next screen will appear as shown in Figure

3-12.

Figure 3-12 Quick Setup - Static IP

¾ IP Address - This is the WAN IP address as seen by external users on the Internet

(including your ISP). Your ISP will provide you with the IP address you need to enter

here. Enter the IP address into the field.

¾ Subnet Mask - The Subnet Mask is used for the WAN IP address. Your IPS will provide

you with the subnet mask which is usually 255.255.255.0.

¾ Default Gateway - Your ISP will provide you with the Gateway address which is the ISP

server’s address. Enter the gateway IP address into the box if required.
