TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router User Guide

- 76 -

If the MAC Address is selected, you can see the following item:

¾ MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.

00-11-22-33-44-AA).

2. Click Next when finishing creating the host entry, and the next screen will appear as shown in

Figure 4-64.

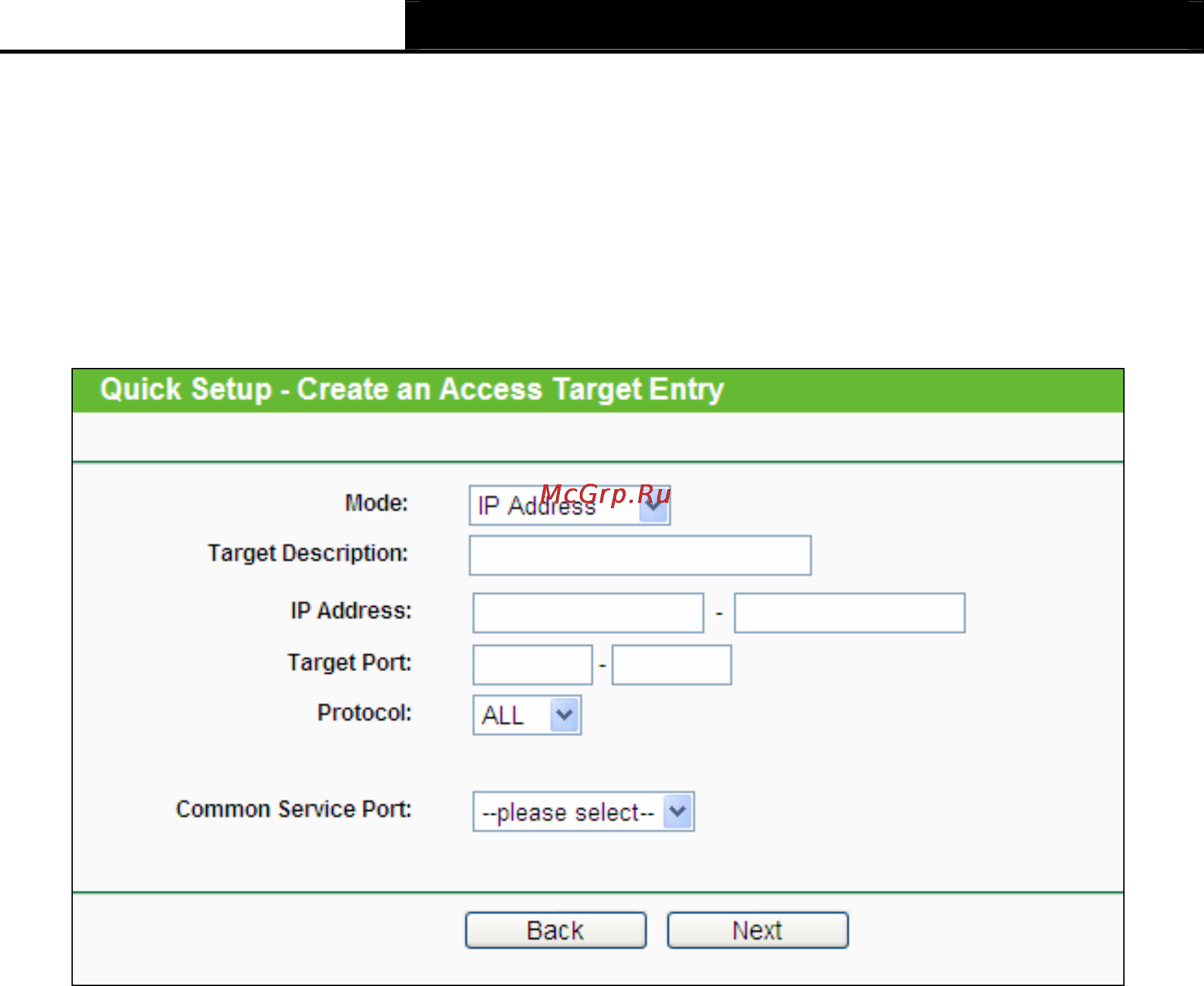

Figure 4-64 Quick Setup – Create an Access Target Entry

¾ Mode - Here are two options, IP Address and Domain Name. You can choose either of

them from the drop-down list.

¾ Target Description - In this field, create a description for the target. Note that this

description should be unique (e.g. Target_1).

If the IP Address is selected, you will see the following items:

¾ IP Address - Enter the IP address (or address range) of the target (targets) in

dotted-decimal format (e.g. 192.168.0.23).

¾ Target Port - Specify the port or port range for the target. For some common service

ports, you can make use of the Common Service Port item below.

¾ Protocol - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the

drop-down list for the target.

¾ Common Service Port - Here lists some common service ports. Select one from the

drop-down list, and the corresponding port number will be filled in the Target Port field

automatically. For example, if you select "FTP", "21" will be filled in the Target Port

automatically.
