TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

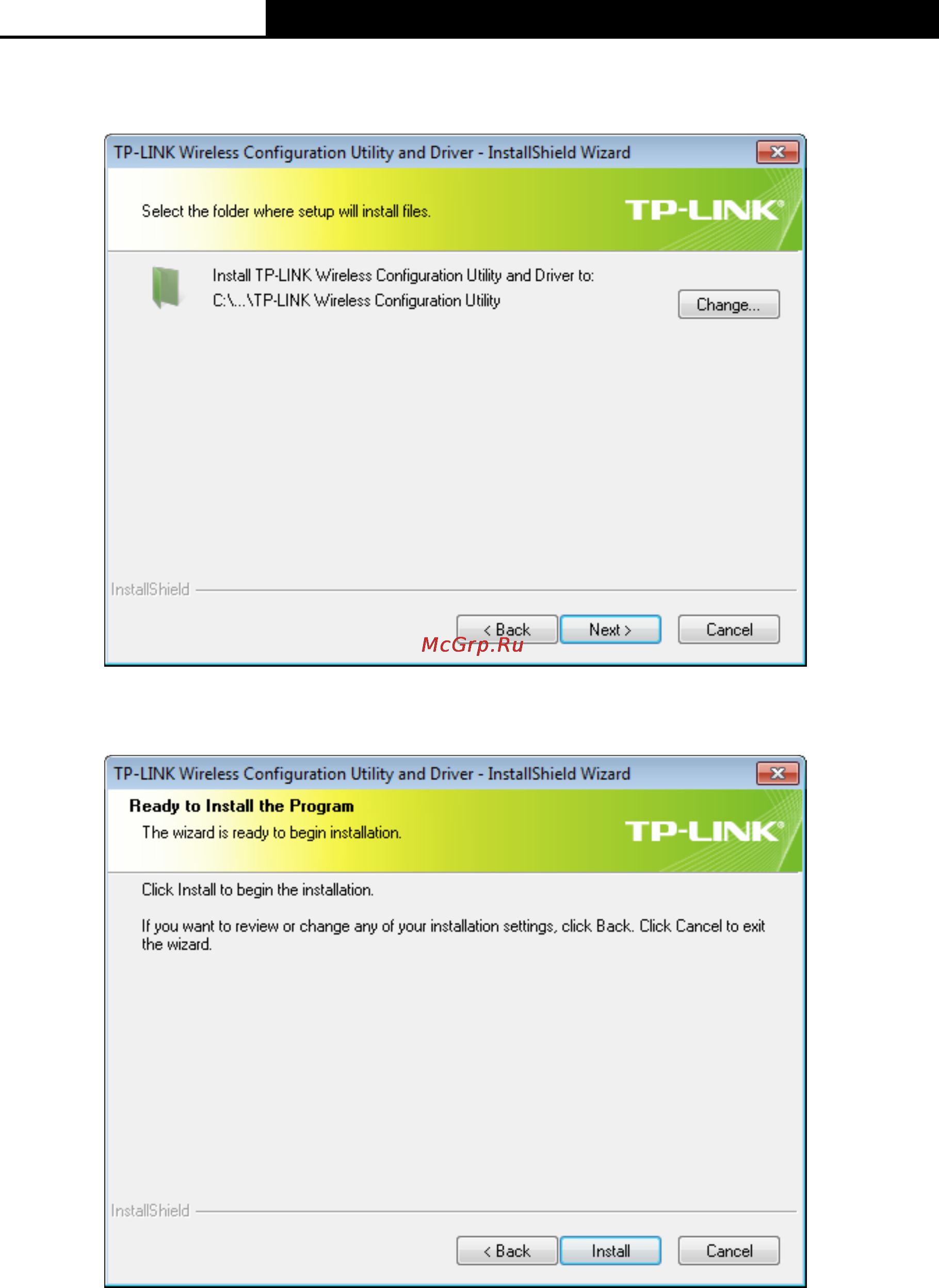

4. Click Change to specify the destination location for the software or you can leave it default.

Click Next in the screen below to continue.

Figure 2-6

5. Click Install to continue the setup.

Figure 2-7
