TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

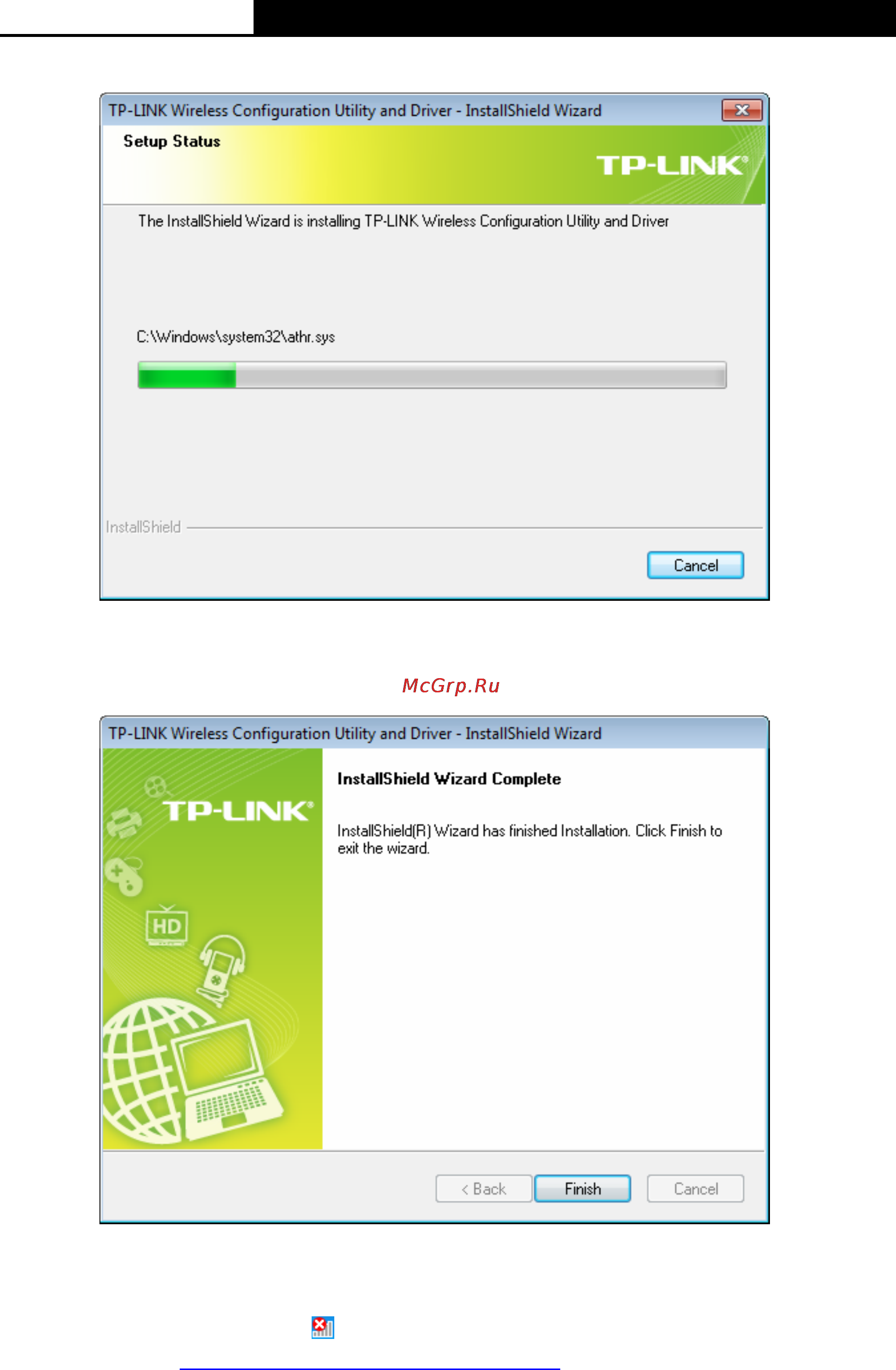

6. The utility and drivers will install. It may take 1~2 minutes.

Figure 2-8

7. After all the steps above, you will see the screen below. Click Finish to complete the setup.

Figure 2-9

8. After installation, the utility configuration page will automatically pop up as shown in the

following figure and the icon

will appear in your system tray. To connect to a network,

please refer to Chapter 3 Connect to a Wireless Network.
