TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

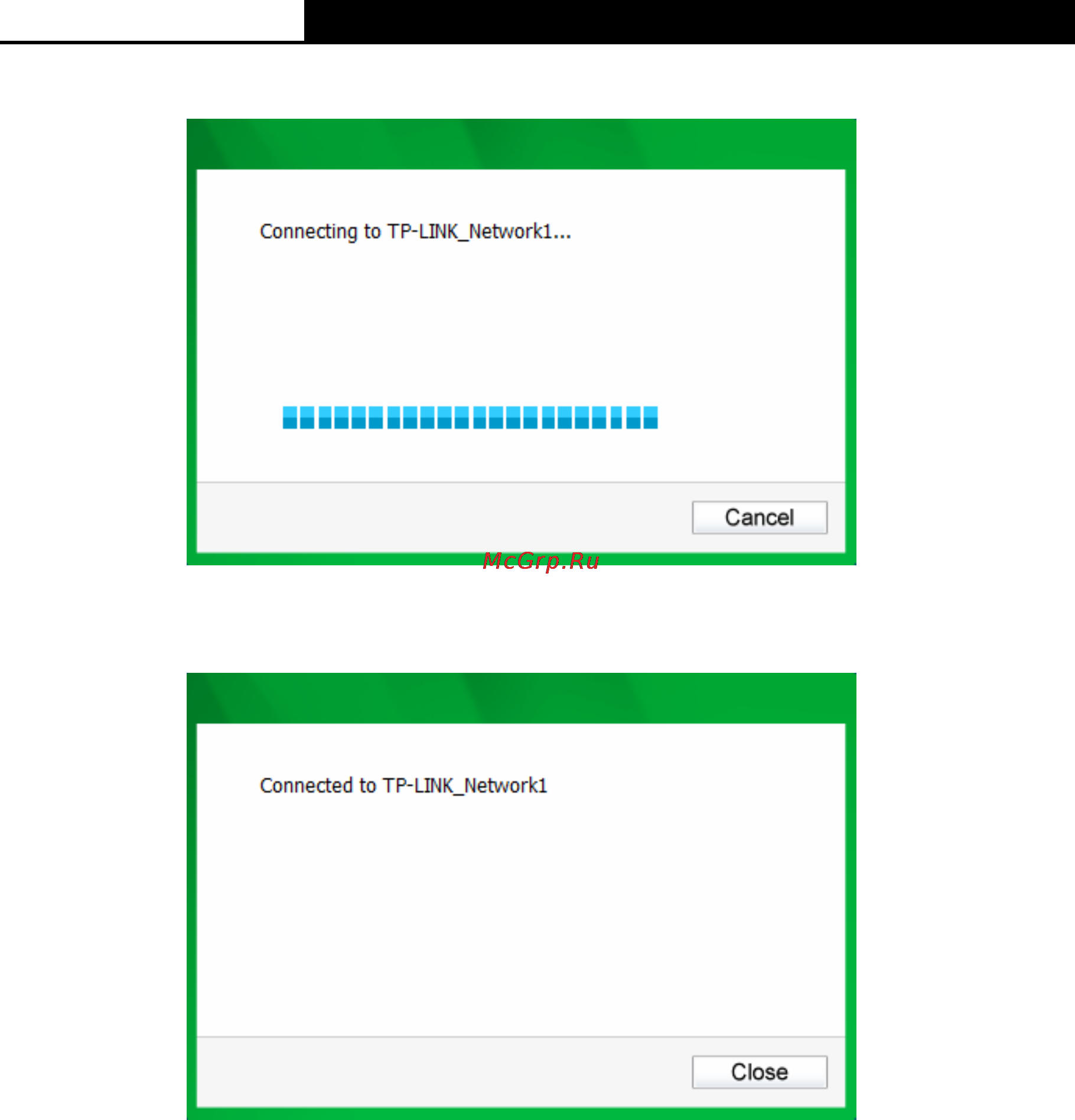

4. Please wait a few minutes for the connection process.

Figure 3-6

5. You have now successfully connected to your network. Click Close to enjoy the Internet.

Figure 3-7

6. To view more information about the network currently connected, click Status in the tools

section and the page will display information such as the network type, channel, rate, etc.
