TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

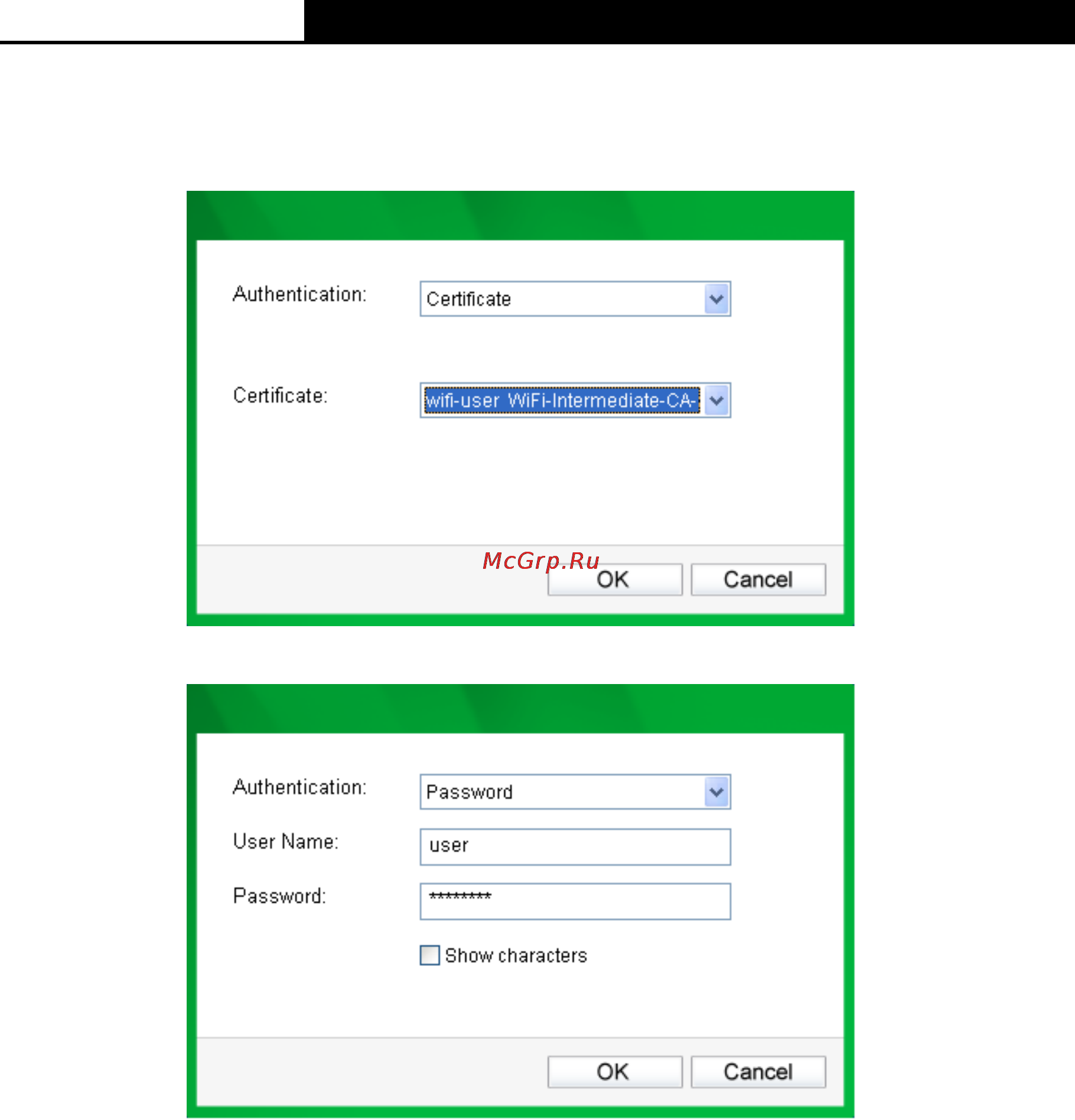

Certificate as your authentication, you need to select one specific certificate from the

drop-down list, as shown in Figure 3-4. With Passw

ord as your authentication, you should

enter the right user name and password in the corresponding field, as shown in Figure 3-5.

Figure 3-4

Figure 3-5

3) Wireless network of None

If you selected a wireless network of None (that is, no security is set.), you can get directly

connected to this network without any further configuration.
