TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

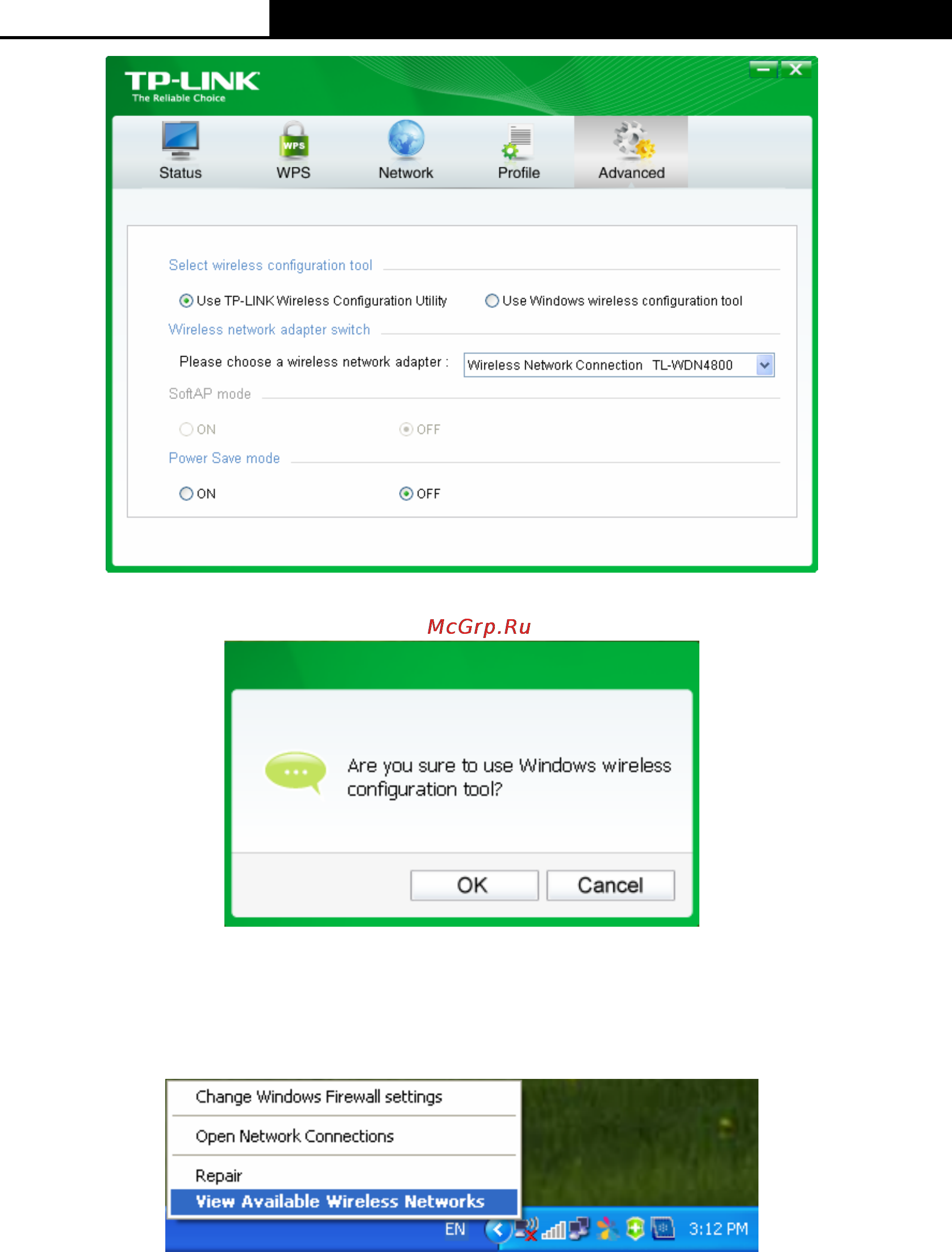

Figure 3-26

Figure 3-27

2. Right-click on the wireless computer icon in your system tray (lower-right corner). Select

View Available Wireless Networks.

Figure 3-28

3. The utility will display any available wireless networks in your area. Click on a network

(displayed using the SSID) and click the Connect button.
