TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

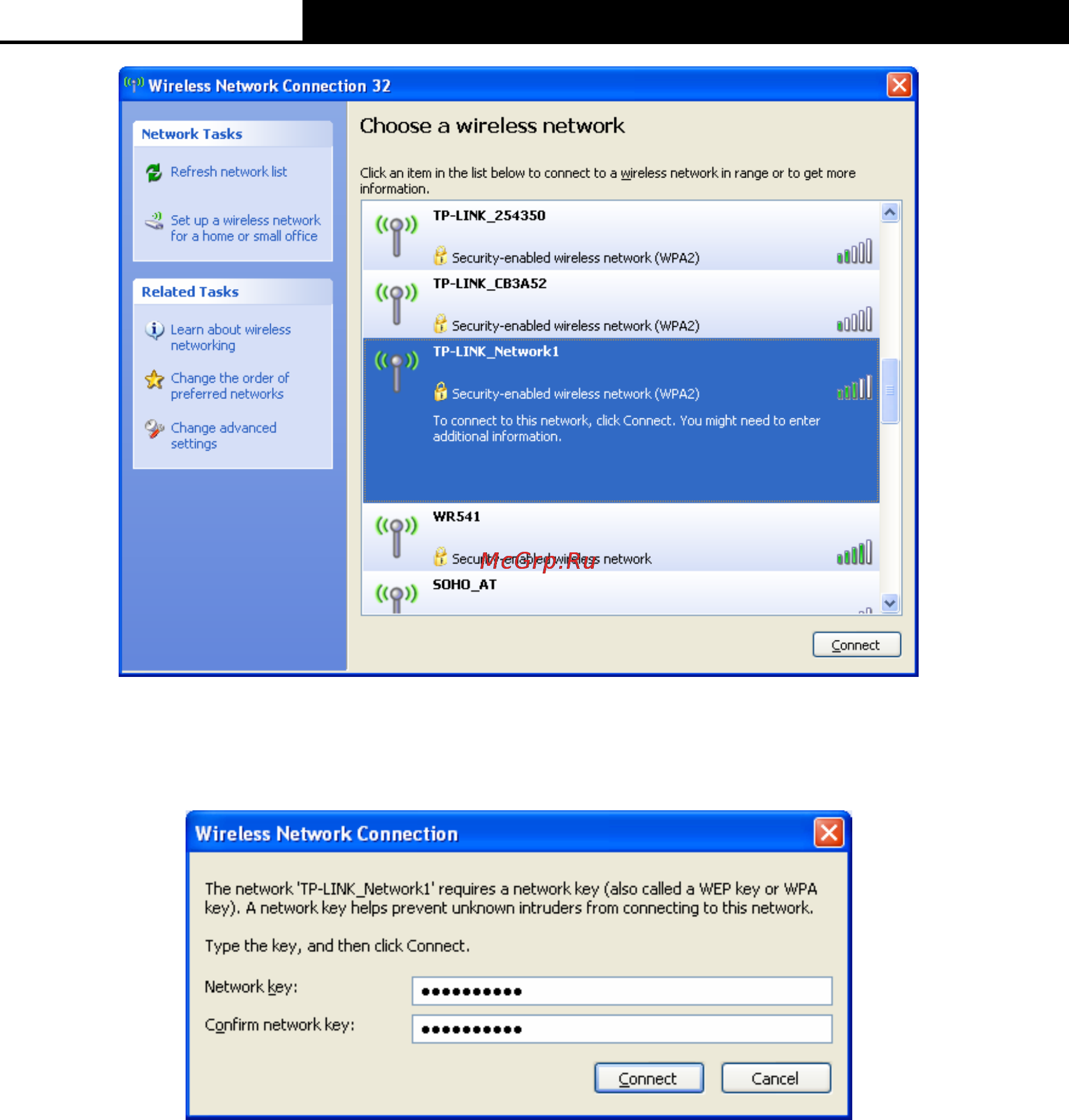

Figure 3-29

4. If the network is security-enabled, you will be prompted to enter the key as shown below. If

not, you will connect to the network directly without entering a key.

Figure 3-30
