TL-WDN3200 N600 Wireless Dual Band USB Adapter

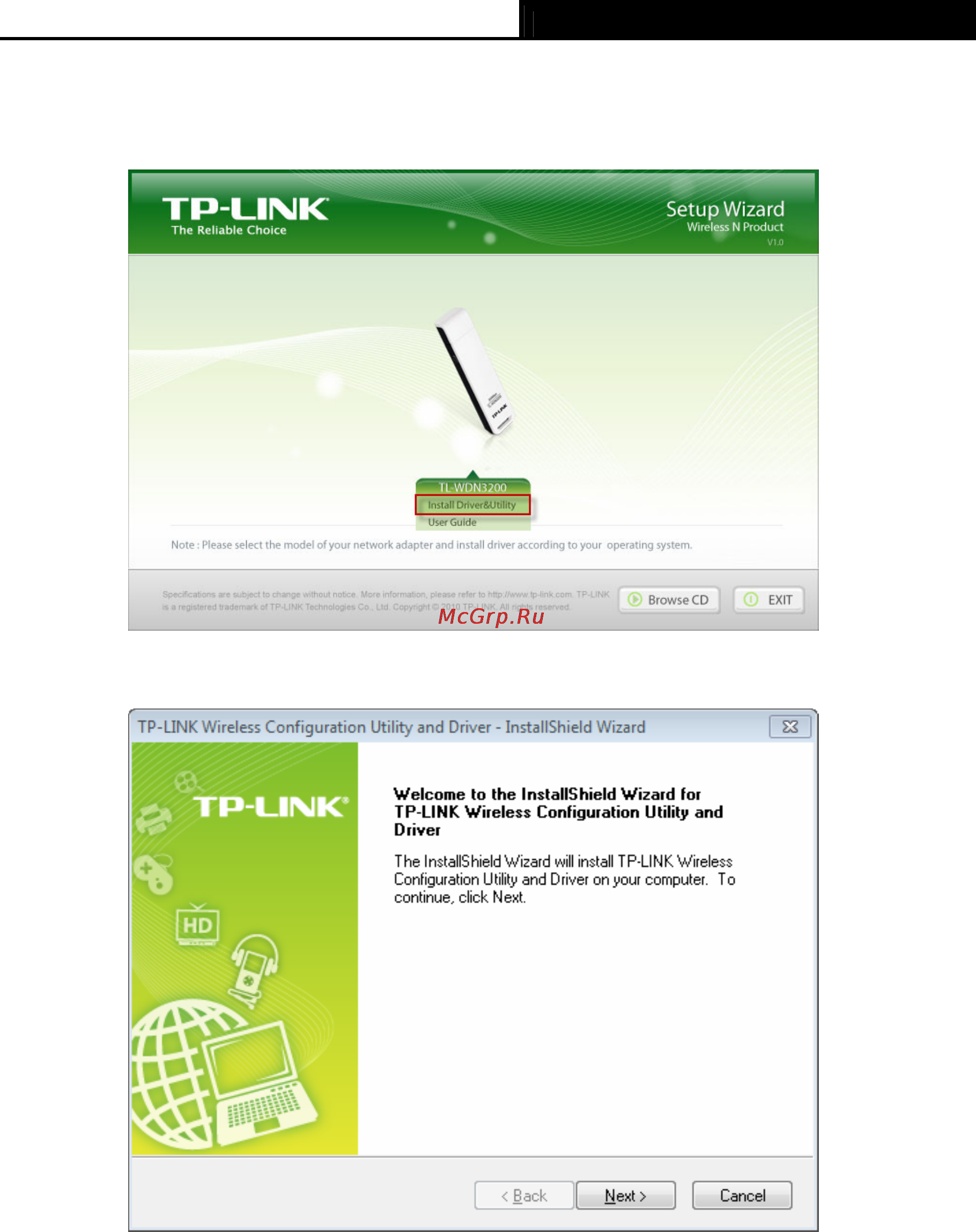

1. Insert the Resource CD into your CD-ROM drive, and the window below will appear. Select

model TL-WDN3200. There will be a menu including: Install Driver&Utility and User

Guide. Click Install Driver&Utility to begin.

Figure 2-1

2. The InstallShield Wizard window will appear. Click Next to continue.

Figure 2-2
