Tp-Link TL-WDN3200 [11/45] Chapter 2 installation

TL-WDN3200 N600 Wireless Dual Band USB Adapter

Chapter 2 Installation

Please insert the USB adapter into your computer before installing the driver software from the

Resource CD.

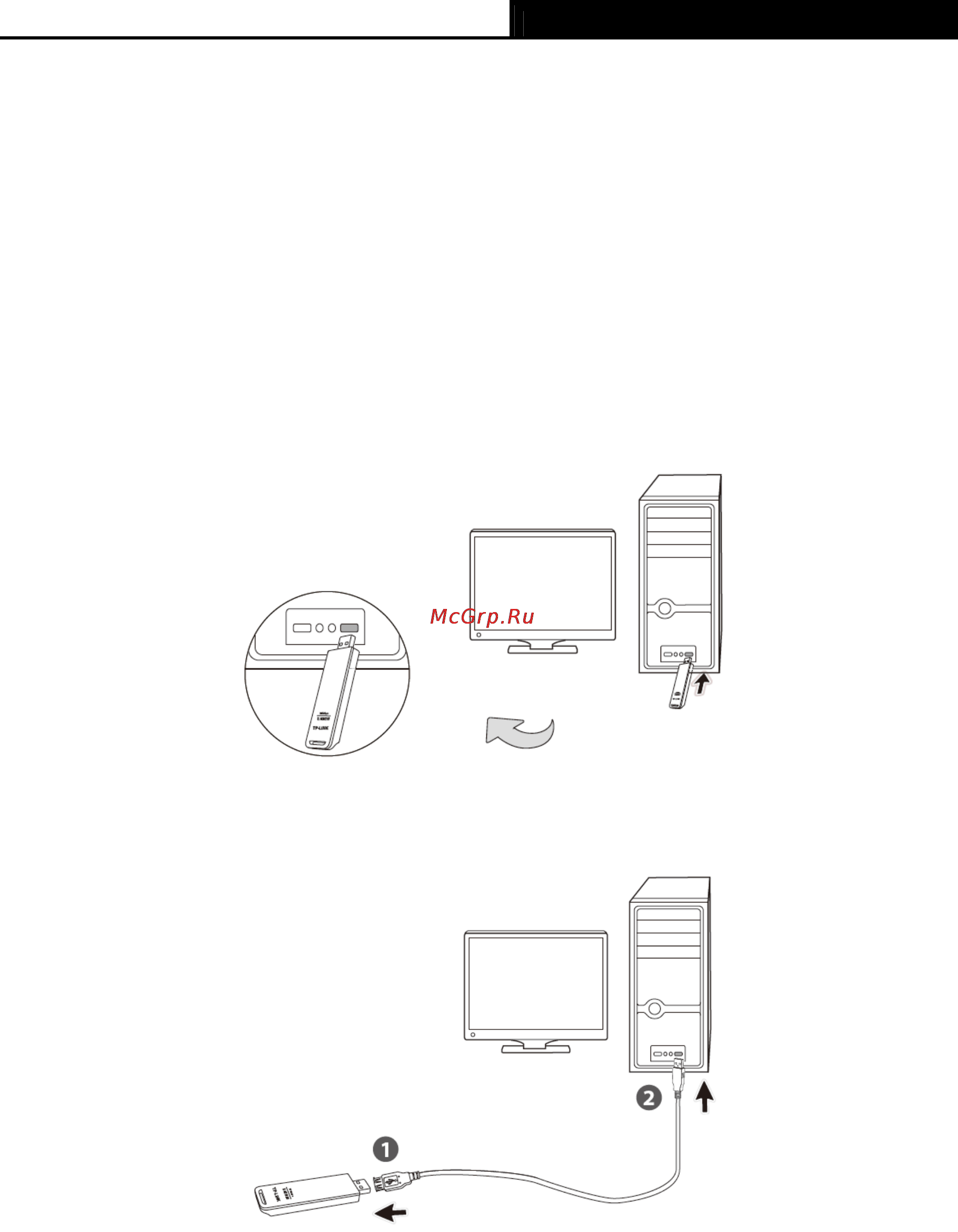

2.1 Hardware Installation

There are two methods:

Method One:

Plug the adapter into an available USB interface on your computer directly.

Method Two:

Connect the adapter and your computer with the provided USB cable.

When the Found New Hardware wizard appears, click Cancel.

2.2 Software Installation

The adapter’s Setup Wizard will guide you through the installation procedures for Windows 7,

Windows Vista, and Windows XP. The procedures in different systems are quite similar,

therefore here takes the procedures in Windows 7 for example.
