TL-WDN3200 N600 Wireless Dual Band USB Adapter

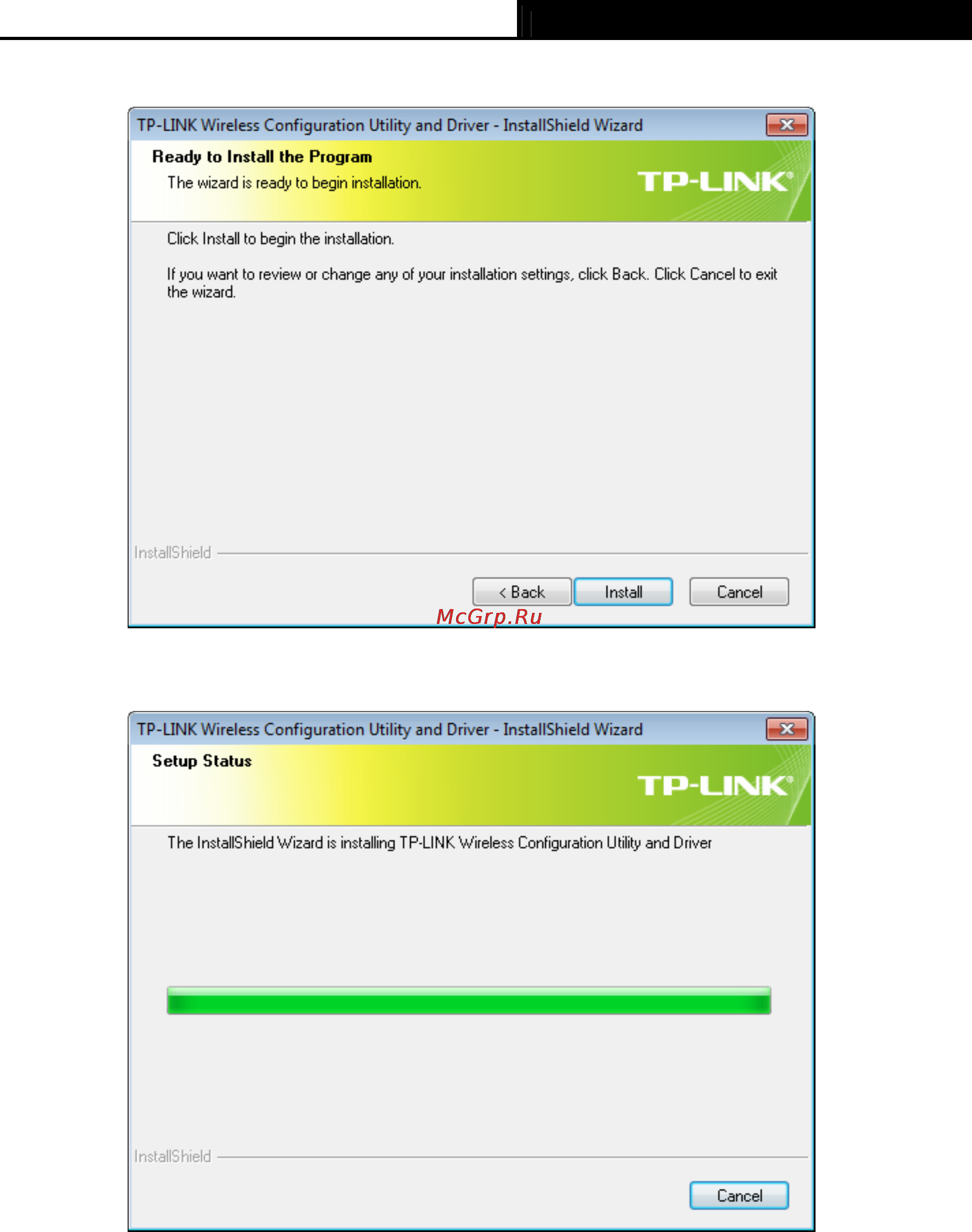

5. Click Install to continue the setup.

Figure 2-5

6. The utility and drivers will install. This may take 1~2 minutes.

Figure 2-6
