TL-WDN3200 N600 Wireless Dual Band USB Adapter
10
automatically connect to your target network next time and automatically save it as a profile
if you tick Connect automatically.

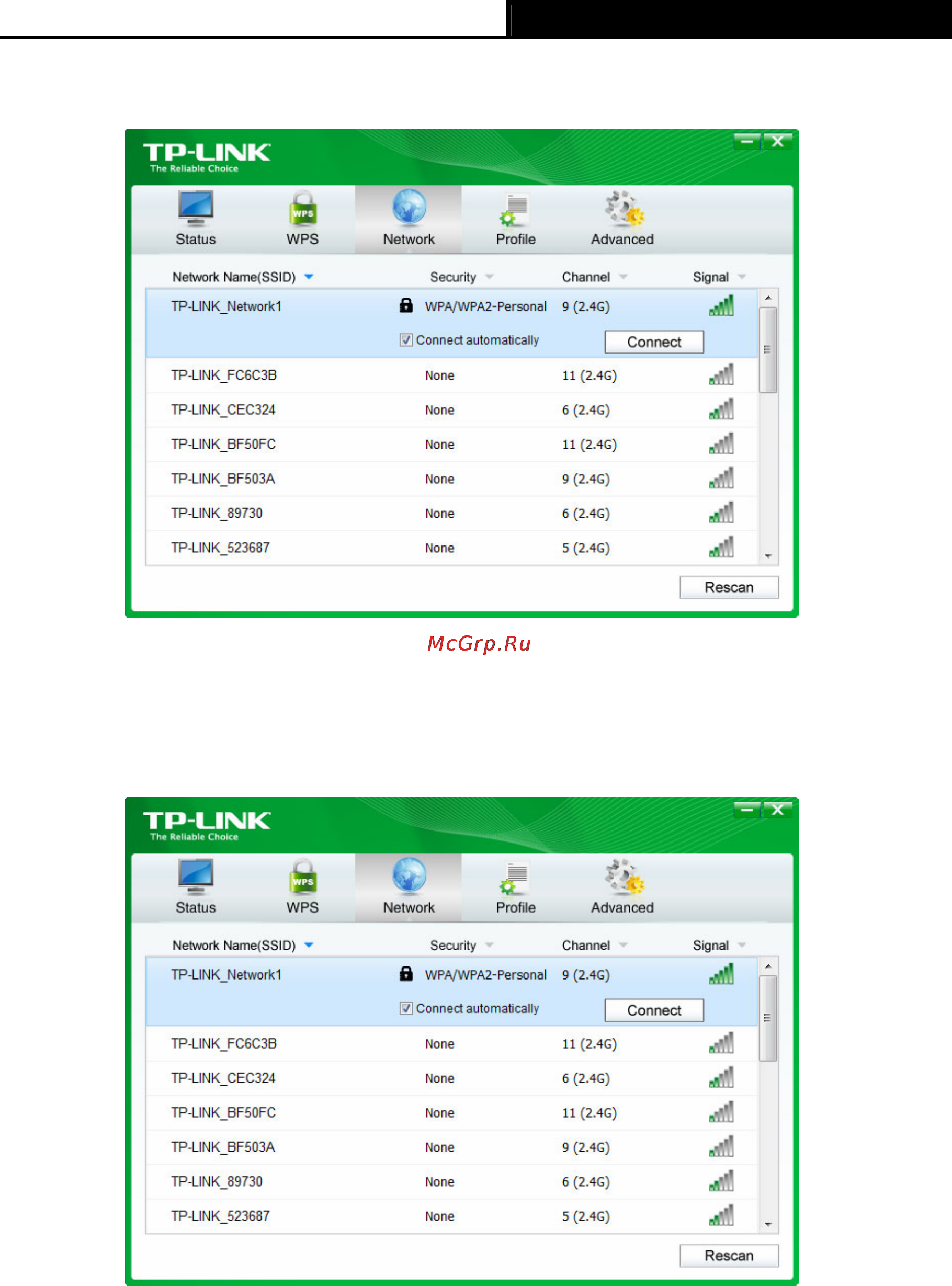

Figure 3-2
3. If word None appears behind the SSID, this means the network to be connected is not
security-enabled and you can connect to the network without entering a key. To prevent
outside intrusion and safeguard your network, it is strongly recommended that you set a
password to your router or access point.
Figure 3-3
If there is a “lock” icon behind the SSID, this means the wireless network is secure and the
corresponding security type will display. You must know the encryption key/security
settings to connect.
Input the password which can be found on the configuration page of your router or access
point, then click OK to continue. Or push the WPS / QSS button on your router if your
router features the WPS / QSS function to quickly build a connection without having to
