Dell Optiplex 7450-8428 [13/77] Installing the back cover

Installing the back cover

1 Align the notches on the back cover to the holes on the computer, and press the back cover until it snaps in.

2 Install the:

a cable cover

b stand

3 Follow the procedure in After working inside your computer.

Оптический дисковод

Removing the optical drive assembly

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a stand

b back cover

3 To remove the optical drive assembly:

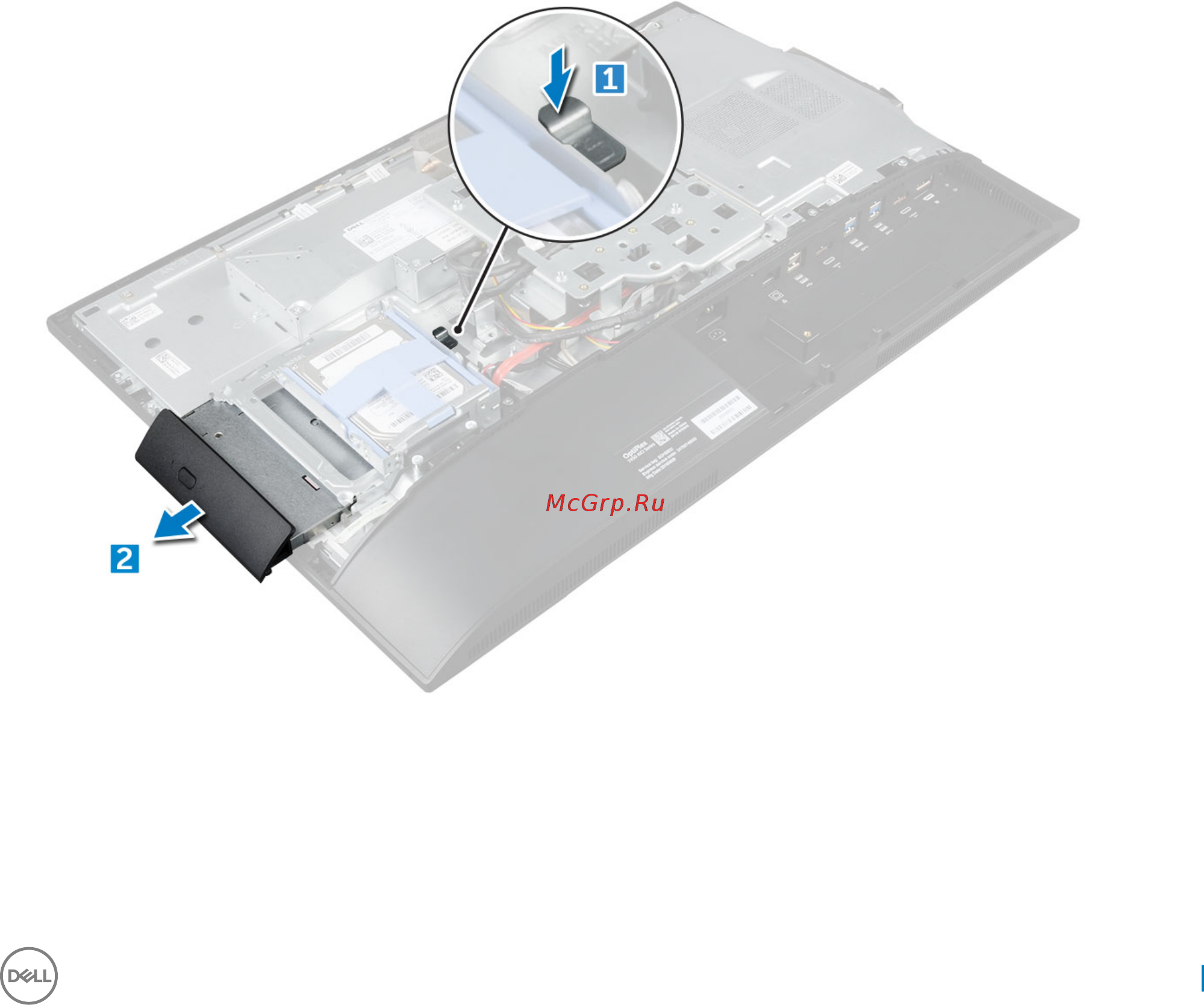

a Press the securing tab at the base of the drive to release the optical drive assembly [1].

b Slide the optical drive assembly to remove it away from the computer [3][2].

4 To remove the optical drive bracket:

a Remove the screws that secure the optical drive bracket [1].

b Remove the bracket away from the optical drive [2].
