Dell Optiplex 7450-8411 [11/77] Cable cover

Cable cover

Removing the cable cover

1 Follow the procedure in Before working inside your computer.

2 Remove the stand.

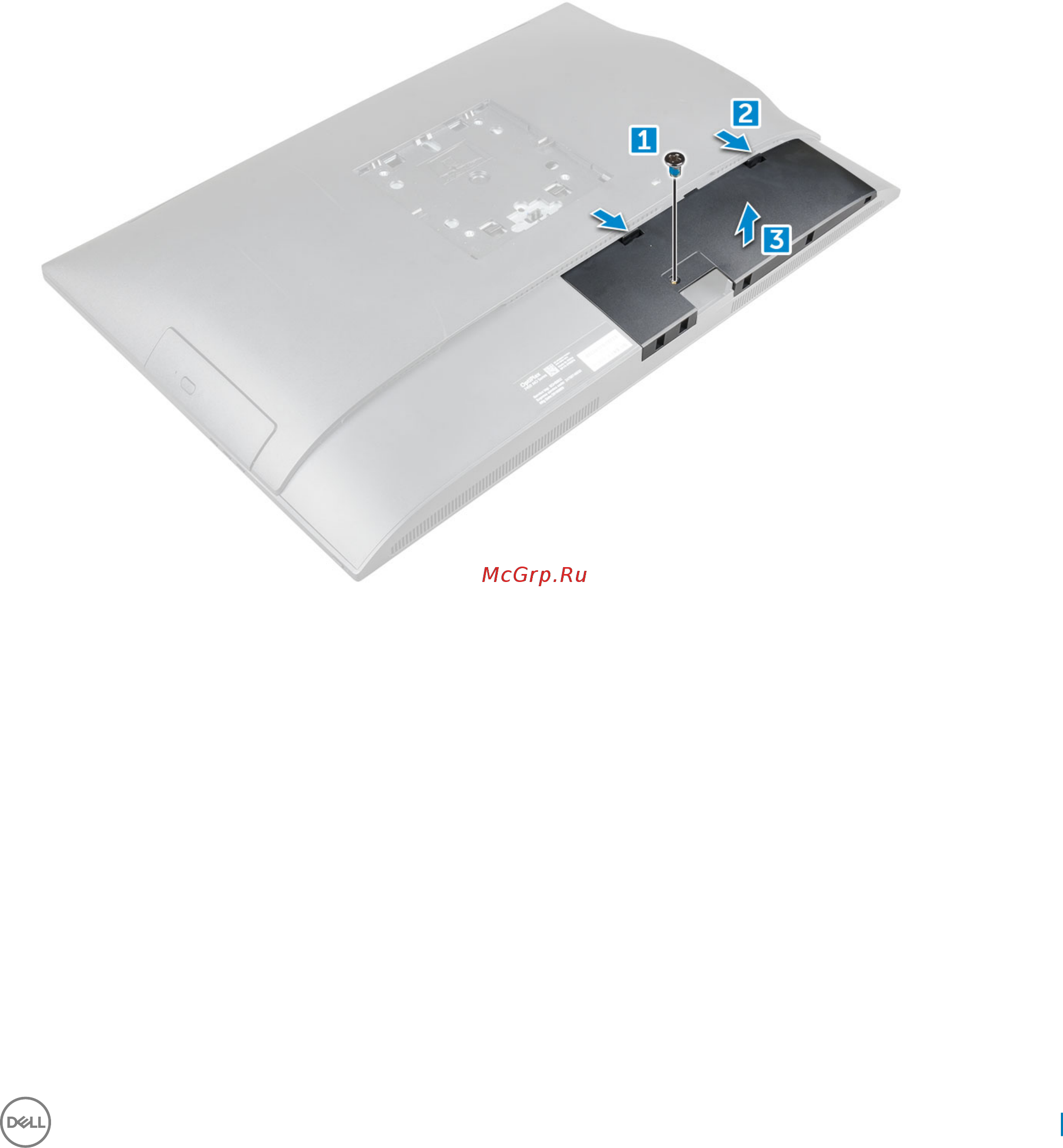

3 To remove the cable cover:

a Remove the screw that secures the cable cover to the computer [1].

b Push the release tabs to release the cable cover [2].

c Lift the cable cover away from the computer [3].

Installing the cable cover

1 Align the notches on the cable cover to the holes on the computer and press the cable cover until it snaps in.

2 Tighten the screw to secure the cable cover to the computer.

3 Install the stand.

4 Follow the procedure in After working inside your computer.

Задняя крышка

Removing the back cover

1 Follow the procedure in Before working inside your computer.

2 Remove the:

Извлечение и установка компонентов 11
