Dell Optiplex 7450-8411 [18/77] Installing the hard drive assembly

Installing the hard drive assembly

1 Align the hard drive until the notches are aligned and the hard drive is secured in the bracket.

2 Place the hard drive onto the hard drive cage until the notches are aligned, then slide the Hard Drive assembly until the tab locks into

the cage.

3 Install the:

a back cover

b stand

4 Follow the procedure in After working inside your computer.

System board shield

Removing the system board shield

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a stand

b back cover

3 To remove the system board shield:

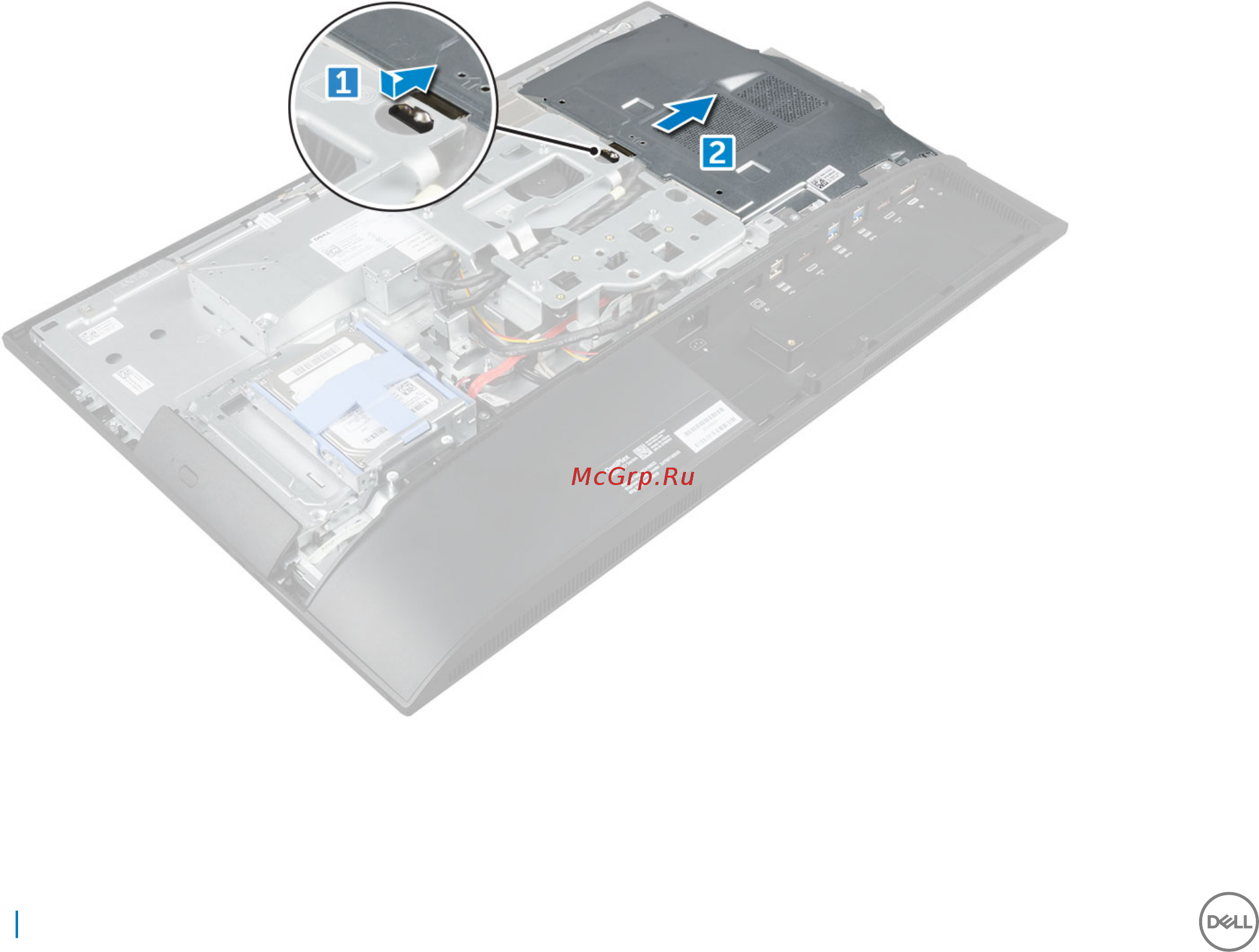

a Press the securing tab to release the system board shield from the slots on the computer [1].

b Slide the system board shield away from the computer [2].
