Installing the optical drive assembly

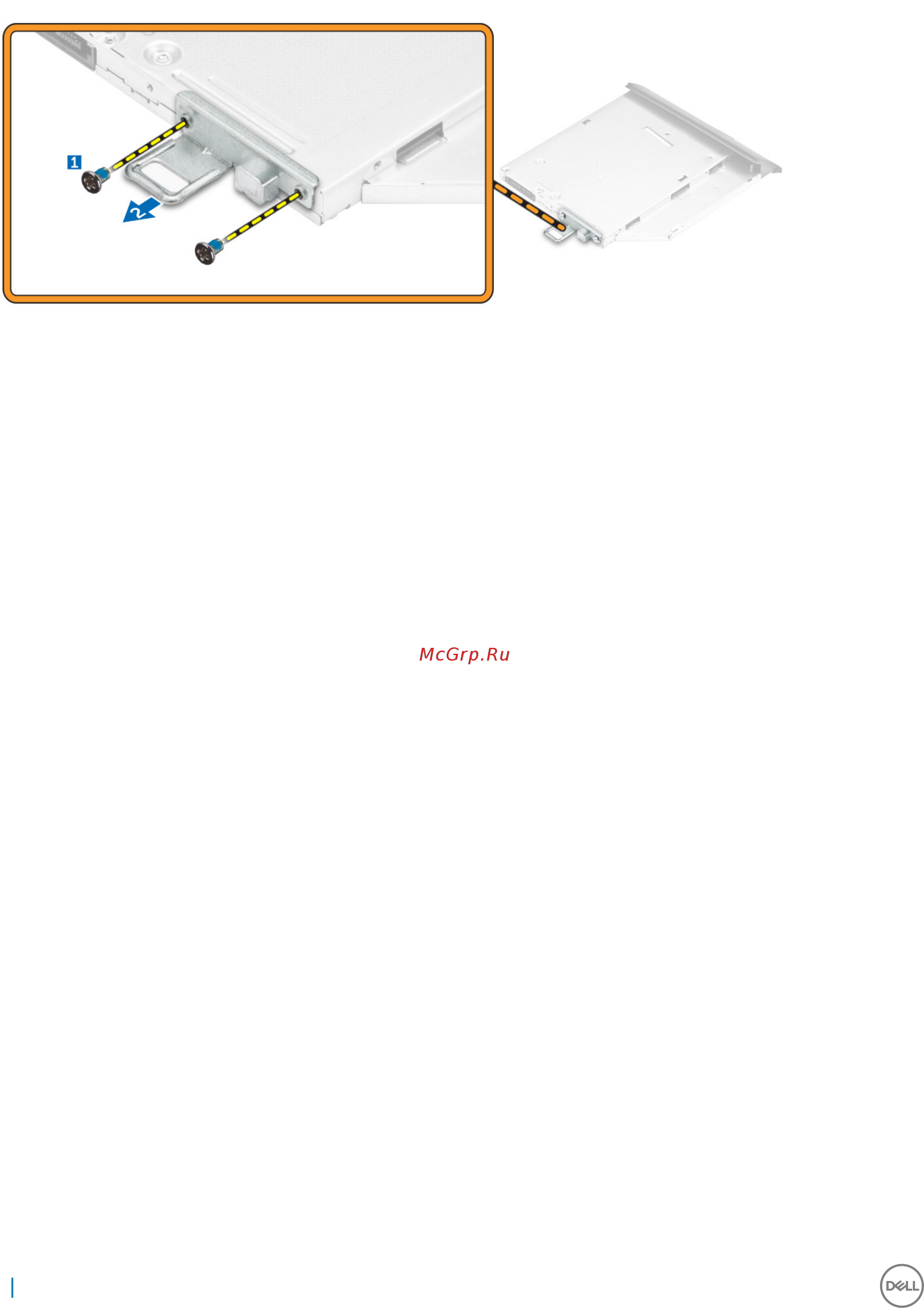

1 Place the bracket to align the screw holders on the optical drive.

2 Tighten the screws to secure the bracket to the optical drive.

3 Insert the optical drive assembly into the drive slot, until it snaps in.

4 Install the:

a back cover

b stand

5 Follow the procedure in After working inside your computer.

Power and On-Screen Display (OSD) buttons board

3 To remove the power and OSD buttons board:

a Remove the screw to remove the metal plate that secures the power and OSD buttons board to the computer [1].

b Peel o the tape from the OSD buttons board [2].

c Remove the power and OSD buttons board from the chassis.

d Disconnect the cables from the power and OSD buttons board to release the board from the computer [3].
