TL-WR543G 54M Wireless AP Client Router User Guide
- 8 -
If the result displayed is similar to that shown in Figure 3-2, it means that your PC has not
connected to the router.

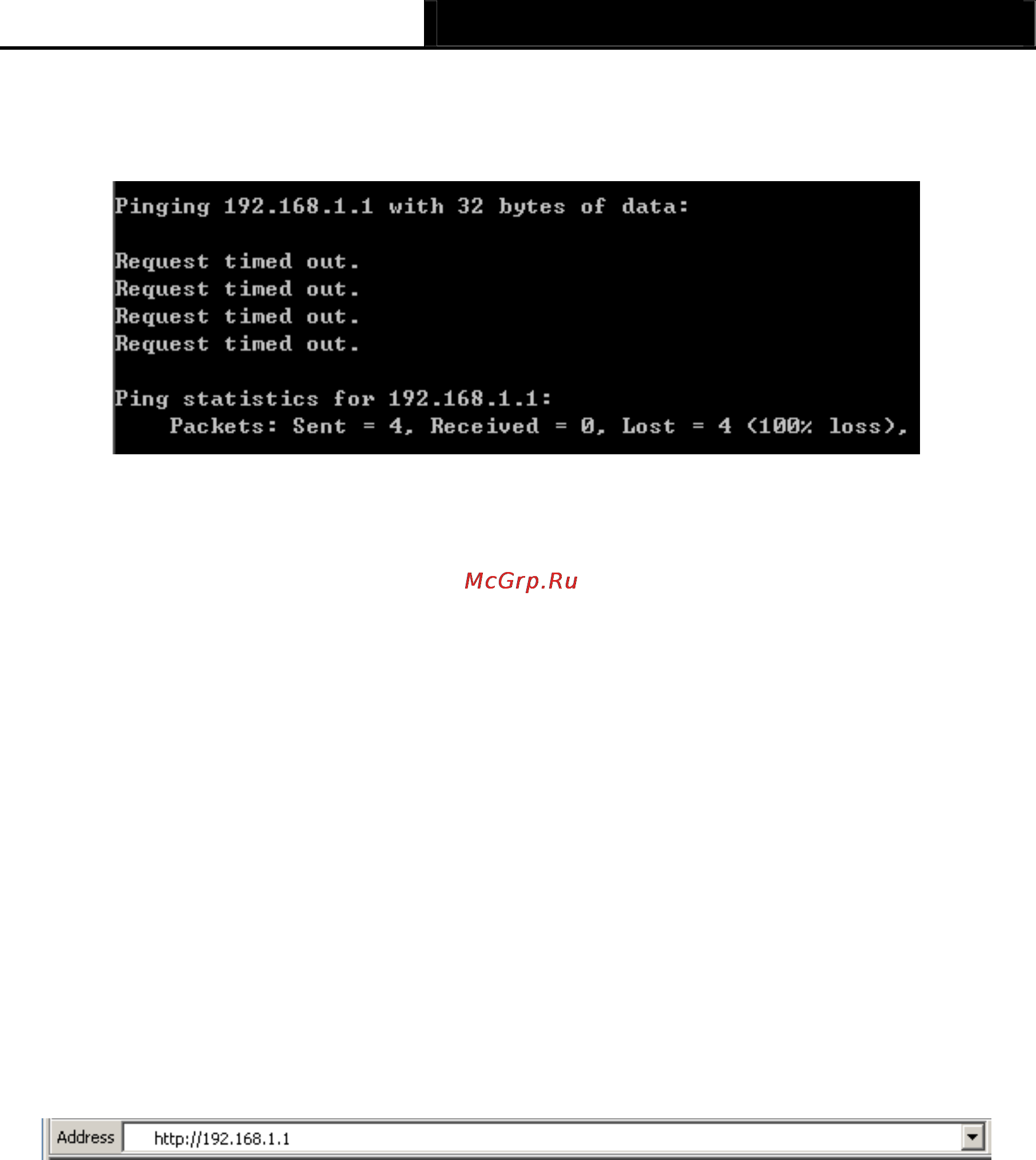

Figure 3-2 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the router correct?
)
Note:
The 1/2/3/4 LEDs of LAN port which you link to on the router and LEDs on your PC's adapter
should be lit.
2. Is the TCP/IP configuration for your PC correct?
)
Note:
If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of
192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1
3.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, it is easy to configure and
manage the TL-WR543G 54M Wireless AP Client Router. The Web-based utility can be used on
any Windows, Macintosh or UNIX OS with a Web browser.
Connect to the router by typing http://192.168.1.1 in the address field of Web browser.
Figure 3-3 Login the router
After a moment, a login window will appear similar to that shown in
Figure 3-4. Enter admin for
the User Name and Password, both in lower case letters. Then click the OK button or press the
Enter key.
