TL-WR543G 54M Wireless AP Client Router User Guide

- 50 -

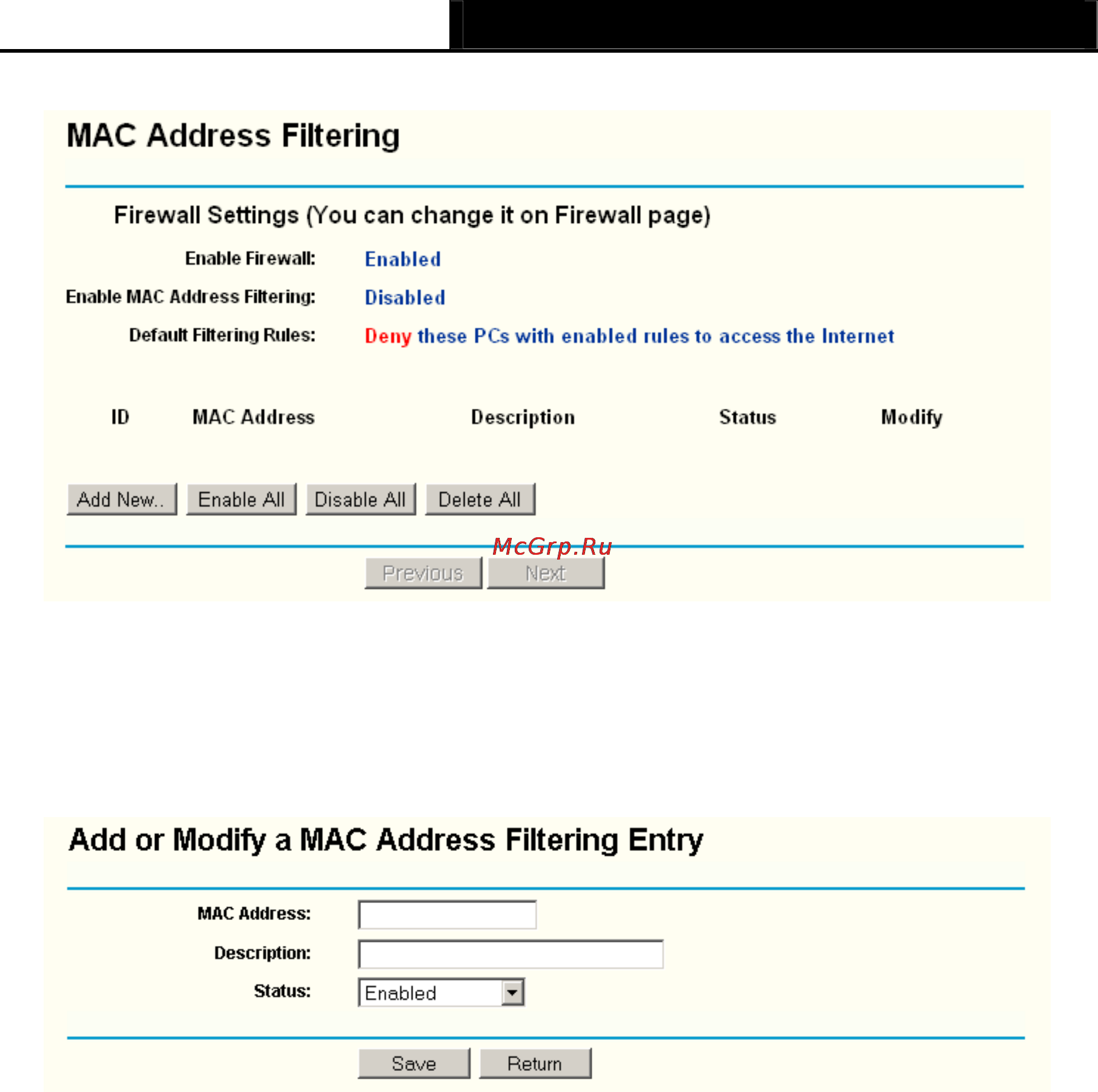

Figure 4-42 MAC address Filtering

Before setting up MAC Filtering entries, you must ensure that Enable Firewall and Enable MAC

Filtering have been selected on the Firewall page. To Add a MAC Address filtering entry, clicking

the Add New… button. The page "Add or Modify a MAC Address Filtering entry" will appear,

shown in

Figure 4-43:

Figure 4-43 Add or Modify a MAC Address Filtering entry

To add or modify a MAC Address Filtering entry, follow these instructions:

1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC

Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-0E-AE-B0-00-0B.

2. Type the description of the PC in the Description field. Fox example: John’s PC.

3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.

4. Click the Save button to save this entry.

To add additional entries, repeat steps 1-4.

When finished, click the Return button to return to the MAC Address Filtering page.

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable All button to make all entries enabled.
