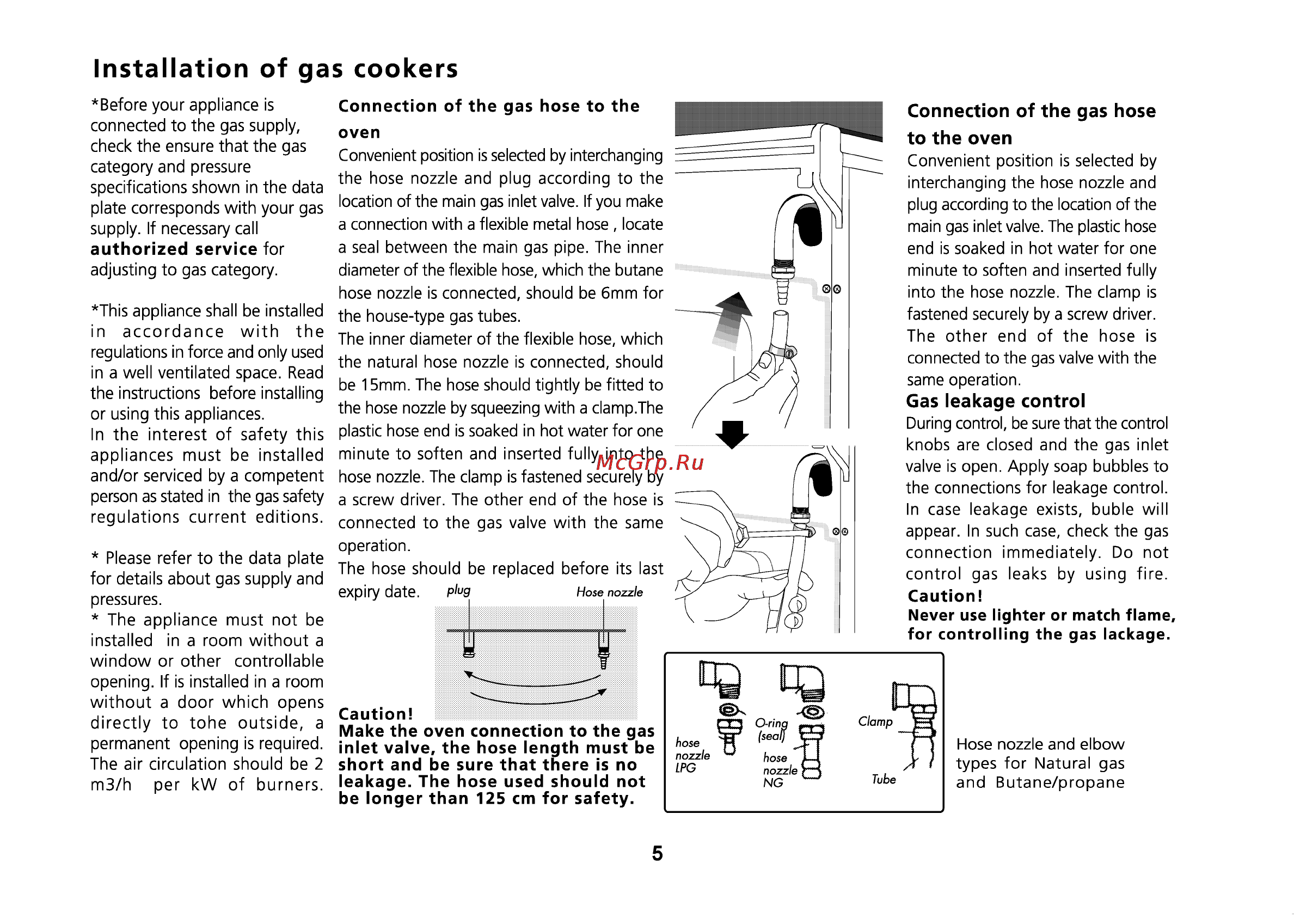

Installation of gas cookers Before your appliance is connected to the gas supply check the ensure that the gas category and pressure specifications shown in the data plate corresponds with your gas supply If necessary call authorized service for adjusting to gas category This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space Read the instructions before installing or using this appliances In the interest of safety this appliances must be installed and or serviced by a competent person as stated in the gas safety regulations current editions Please refer to the data plate for details about gas supply and pressures The appliance must not be installed in a room without a window or other controllable opening If is installed in a room without a door which opens directly to tohe outside a permanent opening is required The air circulation should be 2 m3 h per kW of burners Connection of the gas hose to the oven to the oven Convenient position is selected by interchanging Convenient position is selected by Connection of the gas hose the hose nozzle and plug according to the interchanging the hose nozzle and location of the main gas inlet valve If you make plug according to the location of the a connection with a flexible metal hose locate main gas inlet valve The plastic hose a seal between the main gas pipe The inner end is soaked in hot water for one diameter of the flexible hose which the butane minute to soften and inserted fully hose nozzle is connected should be 6mm for into the hose nozzle The clamp is the house type gas tubes fastened securely by a screw driver The inner diameter of the flexible hose which The the natural hose nozzle is connected should connected to the gas valve with the other end of be 15mm The hose should tightly be fitted to same operation the hose nozzle by squeezing with a clamp The Gas leakage control the hose is During control be sure that the control plastic hose end is soaked in hot water for one knobs are closed and the gas inlet minute to soften and inserted fully into the valve is open Apply soap bubbles to hose nozzle The clamp is fastened securely by the connections for leakage control a screw driver The other end of the hose is In connected to the gas valve with the same case leakage exists buble will appear In such case check the gas operation connection The hose should be replaced before its last control gas leaks by using fire expiry date Caution Never use lighter or match flame for controlling the gas lackage plug Hose nozzle Caution Make the oven connection to the gas inlet valve the hose length must be short and be sure that there is no leakage The hose used should not be longer than 125 cm for safety immediately Clamp hose nozzle LPG 5 nozzle NG Tube Hose nozzle and elbow types for Natural gas and Butane propane Do not
