TD-8817 ADSL2+ Modem Router User Guide

2. Define VLAN Group

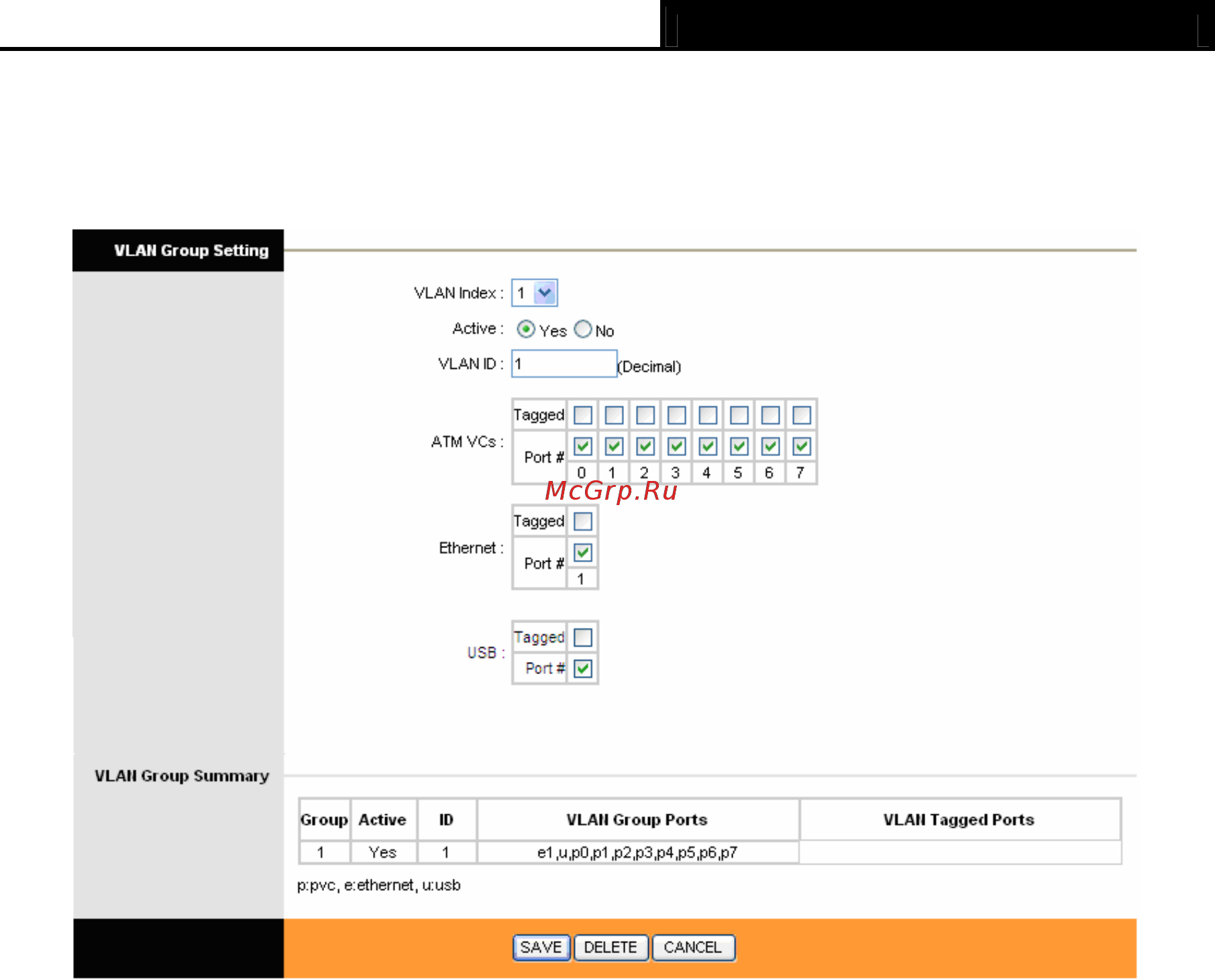

Click Define VLAN Group in Figure 4-24, you can define VLAN groups in the next screen (shown

in Figure 4-26).

Figure 4-26

¾ VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum.

¾ VLAN ID: This indicates the VLAN group.

¾ ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the

tag in frames will be deleted when transmitted from the VC.

¾ Ethernet: Select the Ethernet port as a member of VLAN, and if you leave the Tagged blank,

the tag in frames will be deleted when transmitted from the port.

¾ USB: Select the USB port as a member of VLAN, and if you leave the Tagged blank, the tag

in frames will be deleted when transmitted from the port.

¾ VLAN Group Summary: This displays the information about the VLAN Groups.

4.4.6 ADSL

Choose “Advanced Setup→ADSL”, you can select the ADSL Type and ADSL Mode in the next

screen. The ADSL feature can be selected when you meet the physical connection problem.

Please check the proper settings with your Internet service provider.
