13
L2 Lite Managed Switch
Connection

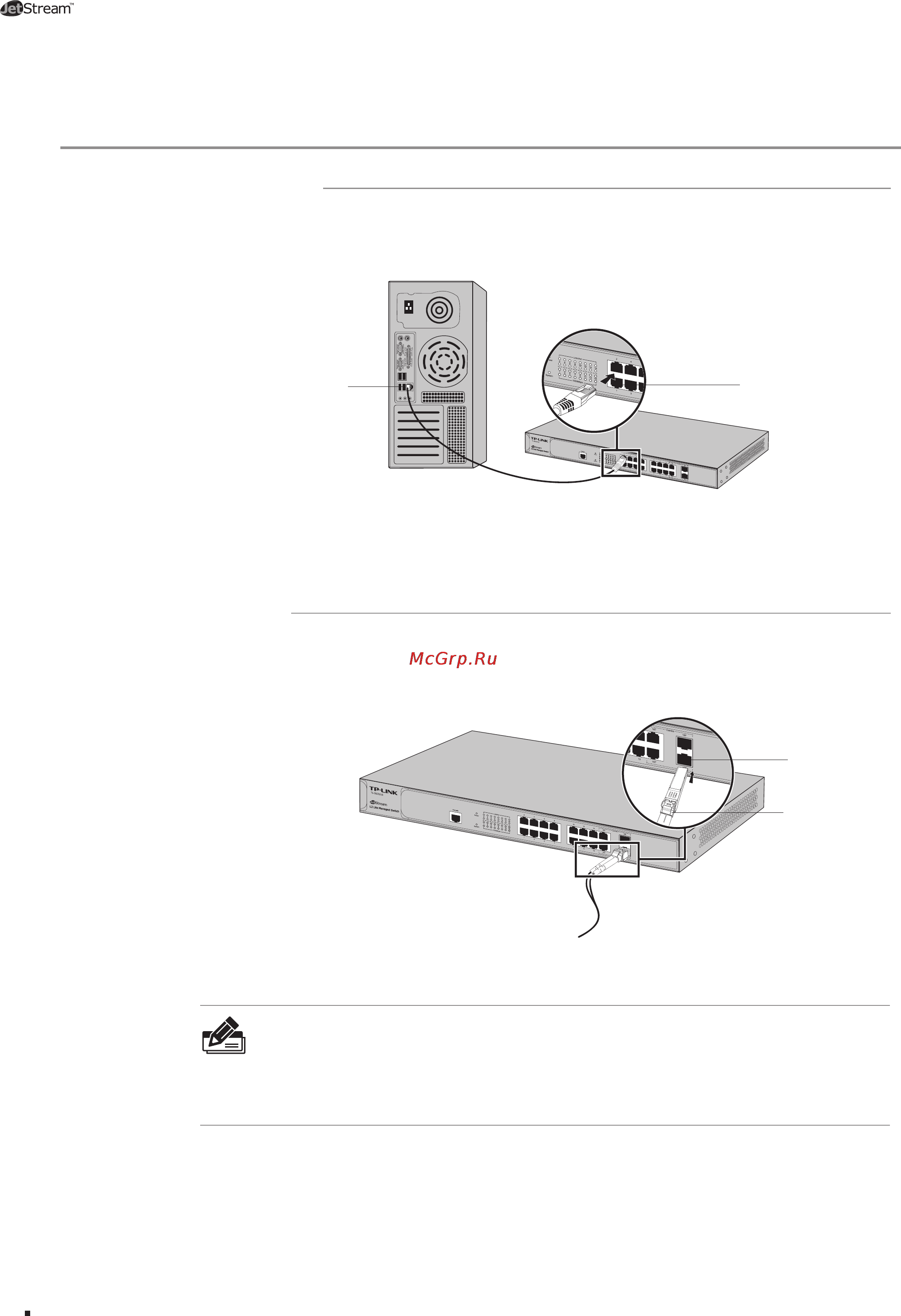

Connect the Ethernet ports of the Switch to the network devices by RJ45 cable as the
following figure shown.
RJ45 Cable
RJ45 Port
Connecting the RJ45 PortFigure 4-1
Connect the SFP port to a SFP module. For TL-SG3216/TL-SG3424, if an SFP transceiver
(purchased separately) is installed in a slot and has a valid link on the port, the
associated RJ45 port will be disabled and cannot be used.
SFP Port
Inserting the SFP ModuleFigure 4-2
Note:
The TL-SG3216/TL-SG3424 Switch supports 100/1000Base-FX SFP module at full-
duplex mode. When using a SFP module, you need log on to the GUI of the Switch and
configure the corresponding Speed and Duplex mode on Switching
→
Port
→
Port
Config page. TL-SG3210 supports 1000M SFP module connection only.
SFP Module
