02
L2 Lite Managed Switch

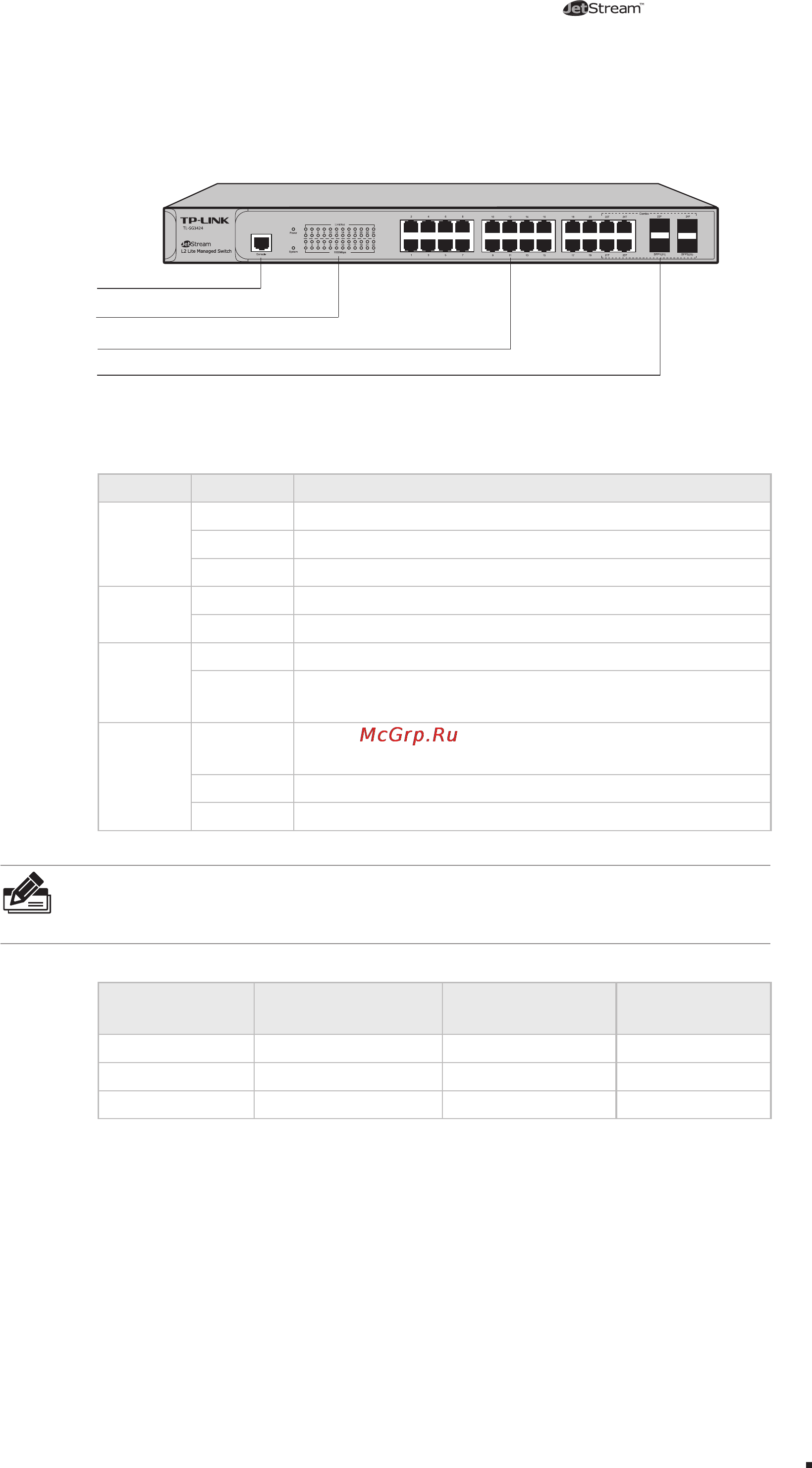

The front panel of TL-SG3424 is shown as the following figure.
Front Panel of TL-SG3424Figure 1-3
LEDs
LED Status Indication
Power
On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
System
Flashing The Switch works properly
On/Off The Switch works improperly
1000Mbps
On A 1000Mbps device is connected to the corresponding port
Off
A 10/100Mbps device or no device is connected to the
corresponding port
Link/Act
On
A device is connected to the correspondi
ng port, but no
activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Note:
TL-SG3216/TL-SG3424 Switch features some
“
Combo
”
ports. A
“
Combo
”
port
consists of a RJ45 port and a SFP port, and the two ports share the same LED.
Port Feature
Model
10/100/1000Mbps
RJ45 Port
Console Port SFP Port
TL-SG3210 8 1 2
TL-SG3216 16 1 2
TL-SG3424 24 1 4
10/100/1000Mbps Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding 1000Mbps LED.
Console Port
Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the Switch.
Introduction
Console Port
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
