03
L2 Lite Managed Switch
SFP Port
Designed to install the SFP module. TL-SG3216/TL-SG3424 Switch features some SFP
transceiver slots that are shared with the associated RJ45 ports. The associated
two ports are referred as a
“
Combo
”
port, which means they cannot be used
simultaneously, otherwise only SFP port works. TL-SG3210 features two individual
SFP ports.
Note:
For TL-SG3216 and TL-SG3424, when using the SFP port with a 100M module or
a gigabit module, you need log on to the GUI (Graphical User Interface) of the Switch
and congure its corresponding Speed and Duplex mode on Switching
→
Port
→
Port
Cong page. For 100M module, please select 100MFD while select 1000MFD for gigabit
module. By default, the Speed and Duplex mode of SFP port is 1000MFD. TL-SG3210
supports 1000M SFP module connection only.
Rear Panel
■

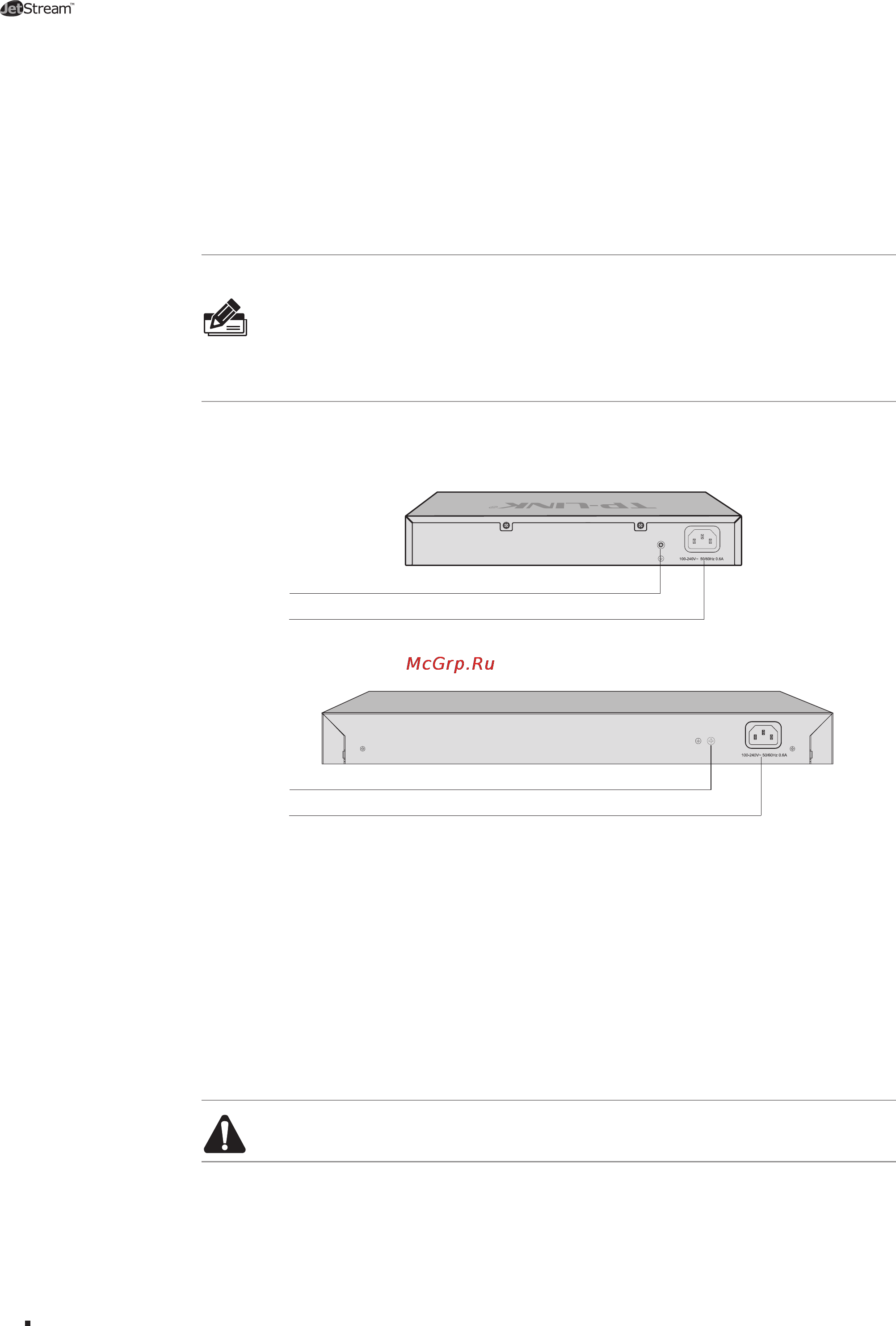

The rear panel of TL-SG3210 is shown as the following figure.
Rear Panel of TL-SG3210Figure 1-4
The rear panel of TL-SG3216/TL-SG3424 is shown as the following figure.
Rear Panel of TL-SG3216/TL-SG3424Figure 1-5
Grounding Terminal
The Switch already comes with lightning protection mechanism. You can also ground
the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage (100-240V~ 50/60Hz).
Caution: Please use the provided power cord.
Introduction
Grounding Terminal
Power Socket
Grounding Terminal
Power Socket
