16
17

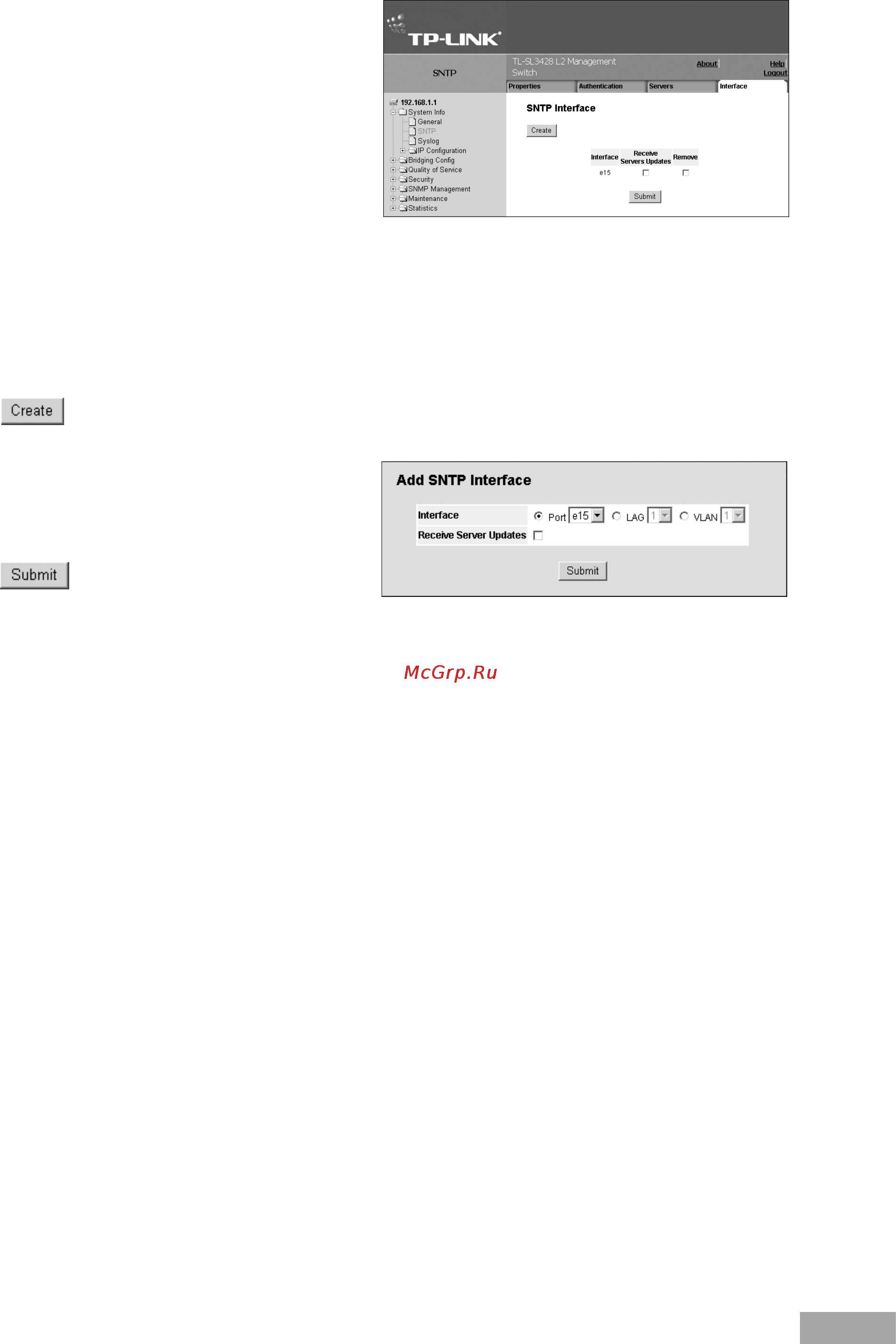

Figure 17: SNTP Interface Settings Page
The SNTP Interface Settings Page contains the following
elds:
Interface — Indicates the interface on which SNTP
can be enabled.
The possible eld values are:
– Port — Indicates the specic port number on which
SNTP is enabled.
– LAG — Indicates the specic LAG number on which SNTP is enabled.
– VLAN — Indicates the specic VLAN number on which SNTP is enabled.
Receive Servers Updates — Enables the server to receive or not receive updates.
Remove — Removes SNTP interfaces.
– Checked — Removes the selected SNTP interface.
– Unchecked — Maintains the dened SNTP interfaces.
2. Click . The Add SNTP Interface Page opens.
Figure 18: Add SNTP Interface Page
3. Select the Interface.
4. Check the Receive Server Updates option.
5. Click . The SNTP interface is added, and the
device is updated.
