Tp-Link TL-SL3452 [55/120] Configuring lacp

48

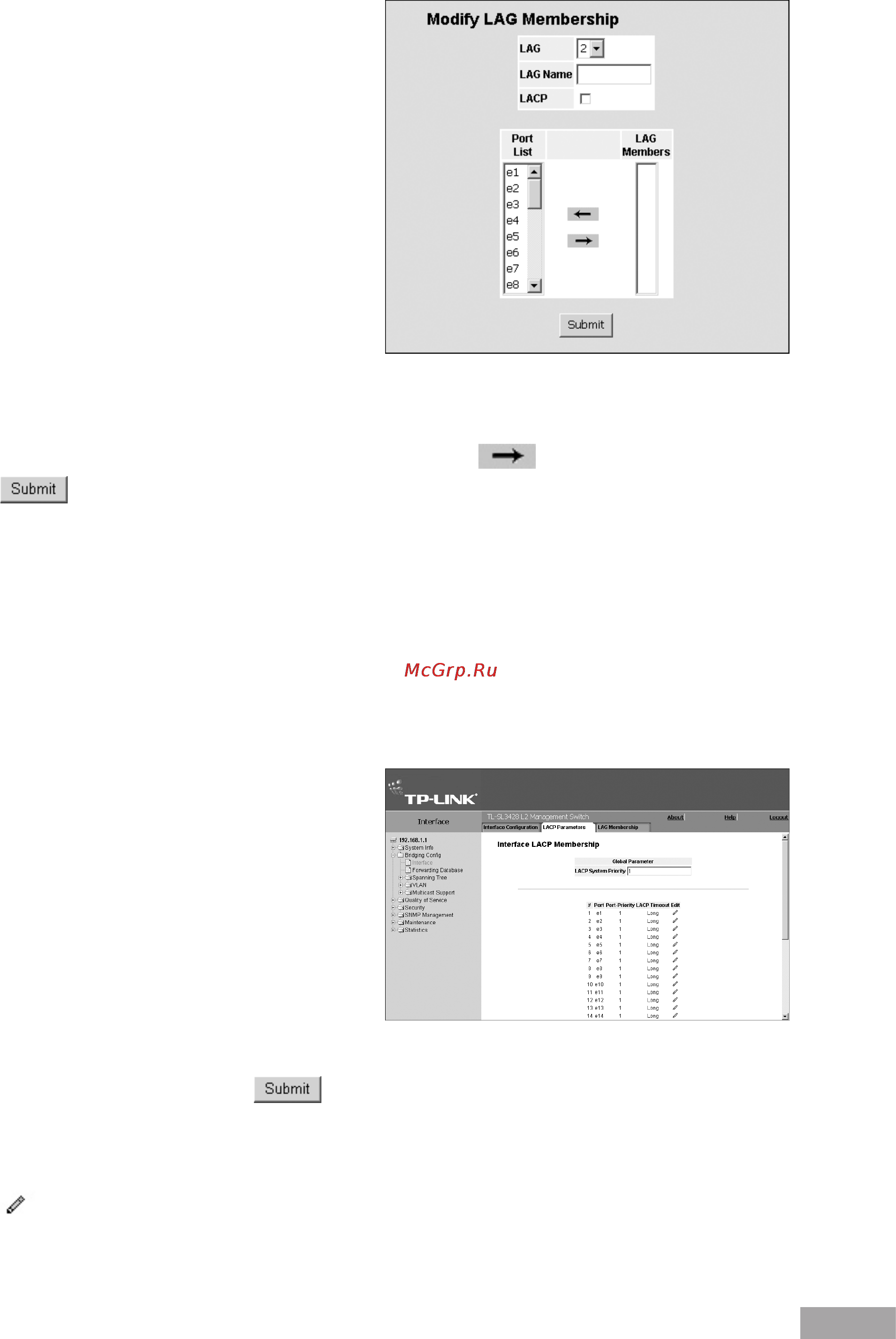

Figure 68: LAG Membership Settings Page

The LAG Membership Settings Page contains the following

elds:

LAG — Contains a user-dened drop-down LAG list.

Lag Name — Displays the user-dened LAG name.

LACP — Indicates if LACP is dened on the LAG. The

LAG Members — Displays the list of the ports included

in the LAG.

2. Dene the LAG elds for the LAG port.

3. Click ports in the Port List and add the ports to the LAG Members list, using .

4. Click . The interface LAG membership properties are modied, and the device is updated.

7.2.2 Conguring LACP

LAG ports can contain different media types if the ports are operating at the same speed. Aggregated links can be set

up manually or automatically established by enabling LACP on the relevant links. Aggregate ports can be linked into link-

aggregation port-groups. Each group is comprised of ports with the same speed. The LACP Parameters Page contains elds

for conguring LACP LAGs.

Port — Displays the port number to which timeout and

priority values are assigned.

Port Priority — Displays the LACP priority value for the

port. The eld range is 1-65535.

LACP Timeout — Displays the administrative LACP

timeout.

2. Dene the LACP System Priority and click . The system priority for LACP is saved and the device is updated.

To modify LACP parameters:

1. Click System > Bridging Cong > Interface > LACP Parameters. The LACP Parameters Page opens.

2. Click . The LACP Parameters Settings Page opens:






