Tp-Link TL-SL3452 Инструкция по эксплуатации онлайн [27/120] 38907
![Tp-Link TL-SL3452 Инструкция по эксплуатации онлайн [27/120] 38907](/views2/1042098/page27/bg1b.png)
20
21

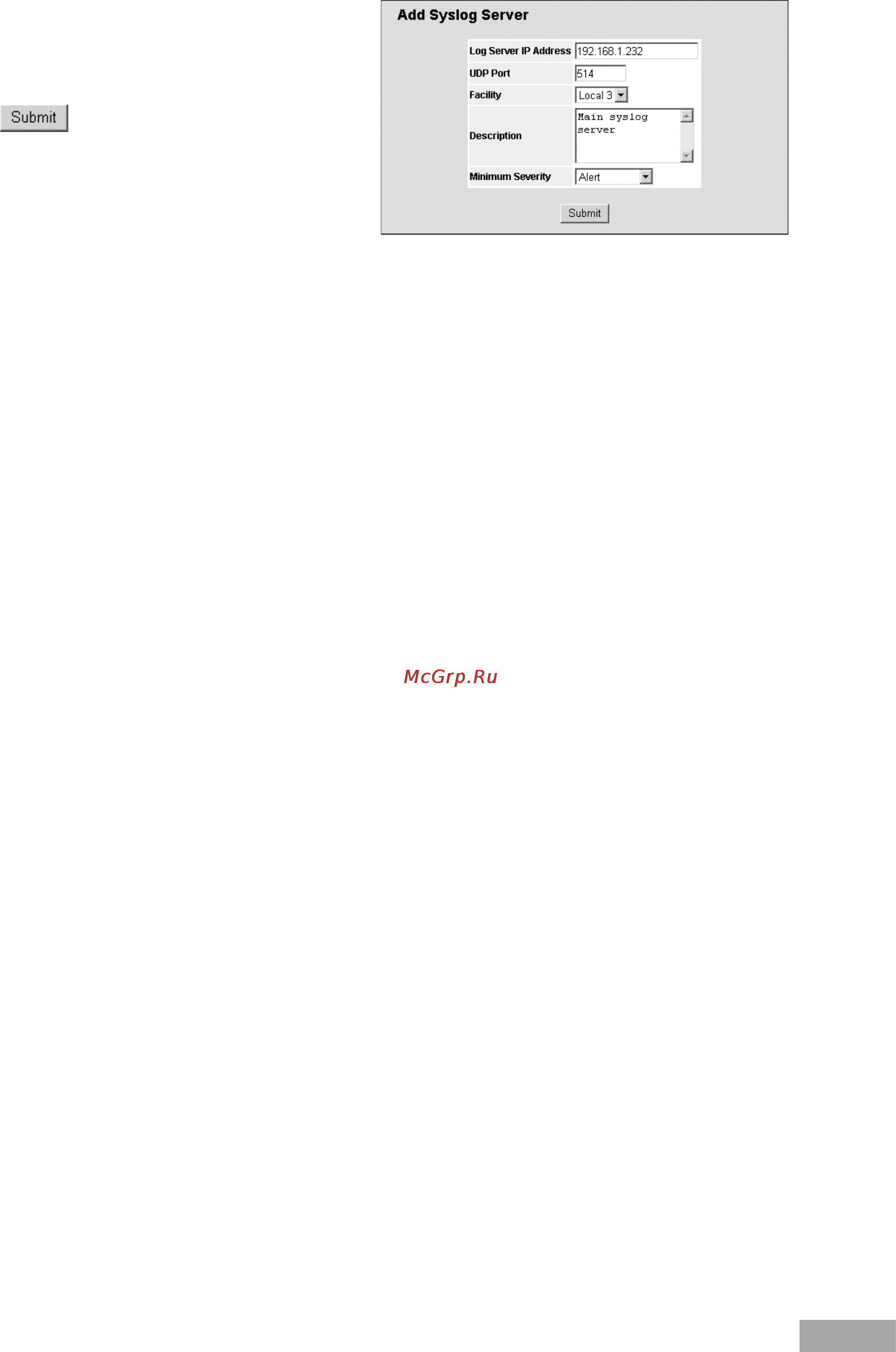

Figure 23: Add Syslog Server Page
3. Dene the IP Address, UDP Port, Facility, Description,
and Minimum Severity elds.
4. Click . The Log server is defined and the
device is updated.
