44
45

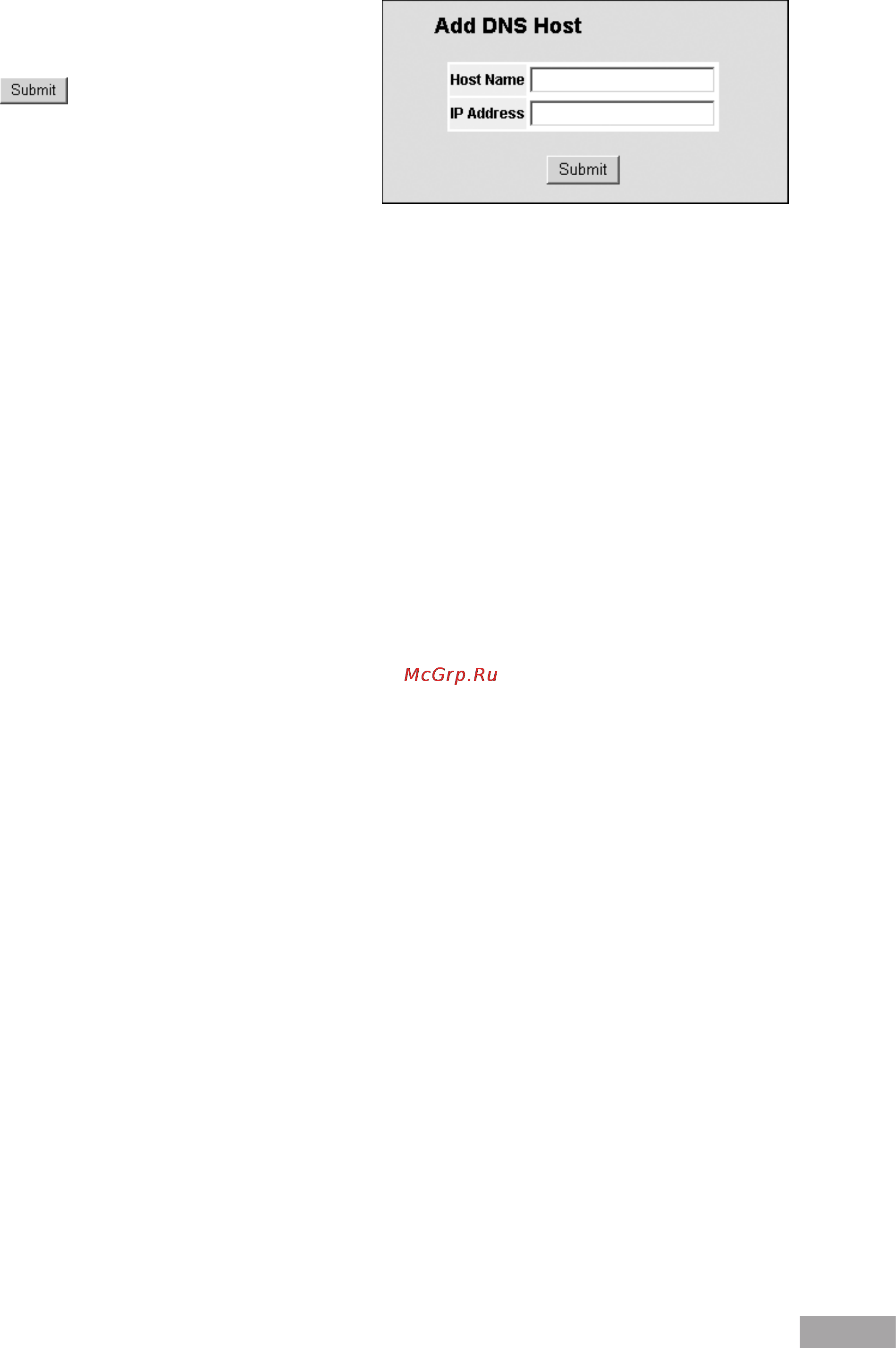

Figure 64: Add DNS Host Page
3. Enter the Host Name and IP Address.
4. Click . The new DNS host is added to the
hosts list in the Host Mapping Page.
