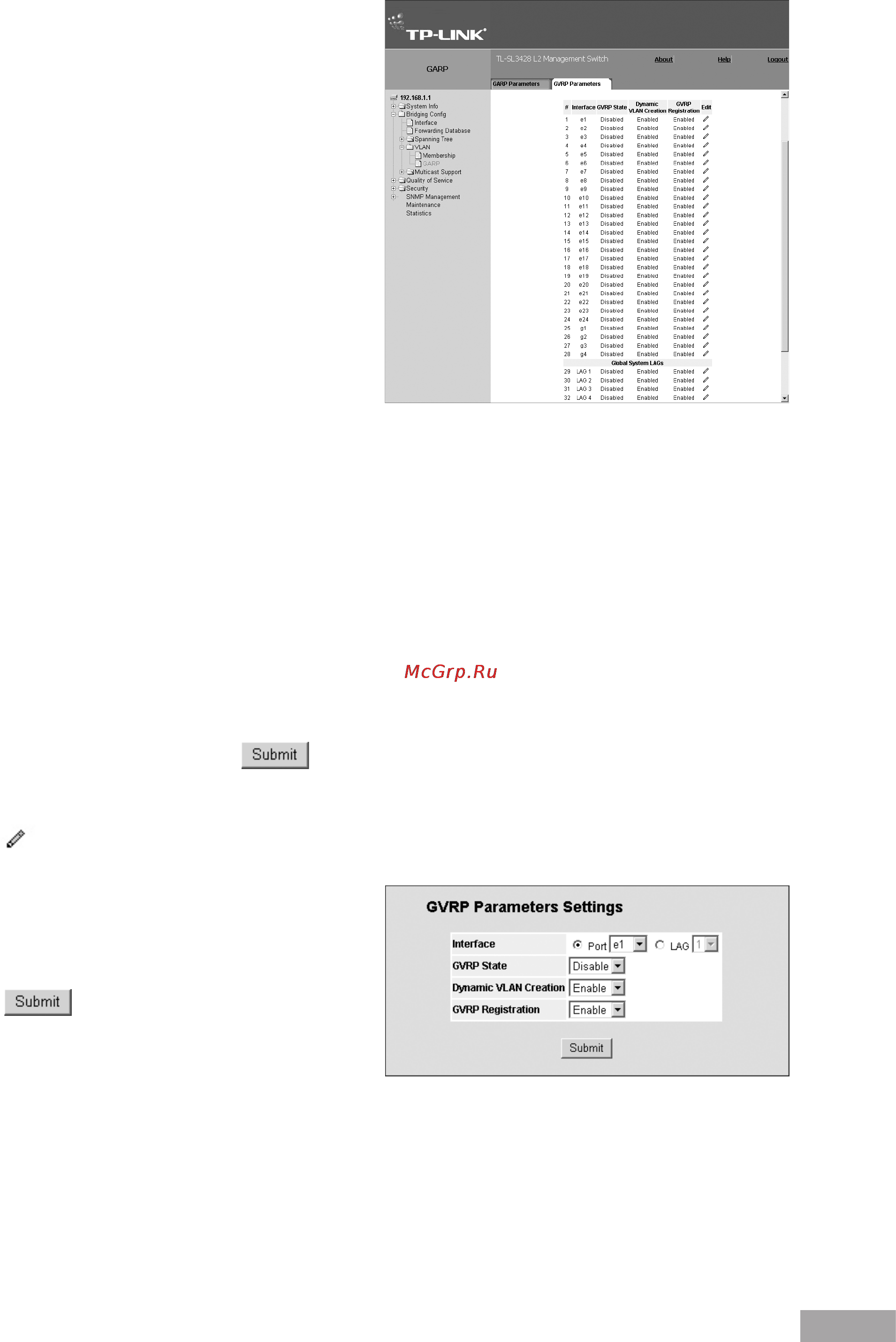

Figure 79: GVRP Parameters Page
The GVRP Parameters Page is divided into port and LAG
parameters. The eld denitions are the same.
The GVRP Parameters Page contains the following elds:
GVRP Global — Indicates if GVRP is enabled on the
device. The possible eld values are:
– Enable — Enables GVRP on the selected device.
– Disable — Disables GVRP on the selected device.
Interface — Displays the port on which GVRP is
enabled. The possible eld values are:
– Port — Indicates the port number on which GVRP is
enabled.
– LAG — Indicates the LAG number on which GVRP
is enabled.
GVRP State — Indicates if GVRP is enabled on the
port. The possible eld values are:
– Enable — Enables GVRP on the selected port.
– Disable — Disables GVRP on the selected port.
Dynamic VLAN Creation — Indicates if Dynamic VLAN creation is enabled on the interface. The possible eld values
are:
– Enable — Enables Dynamic VLAN creation on the interface.
– Disable — Disables Dynamic VLAN creation on the interface.
GVRP Registration — Indicates if VLAN registration through GVRP is enabled on the device. The possible eld values
are:
– Enable — Enables GVRP registration on the device.
– Disable — Disables GVRP registration on the device.
2. Select the GVRP Global status and click . The global GVRP parameters are saved.
To modify global GVRP or LAG parameters:
1. Click next to GVRP or LAG global interface settings item. The GVRP Parameters Settings Page opens:
Figure 80: GVRP Parameters Settings Page
2. Enable or disable GVRP State, Dynamic VLAN
Creation and GVRP Registration.
3. Click . The global GVRP or LAG parameters
are modied, and the device is updated.
