64
65
The possible eld values are:
Root Provides the lowest cost path to forward packets to the root device.
Designated Indicates the port or LAG through which the designated device is attached to the LAN.
Alternate Provides an alternate path to the root device from the root interface.
Backup Provides a backup path to the designated port path toward the Spanning Tree leaves. Backup ports occur
only when two ports are connected in a loop by a point-to-point link or when a LAN has two or more connections
connected to a shared segment.
Disabled Indicates the port is not participating in the Spanning Tree.
Mode Indicates the STP mode by which STP is enabled on the device. The possibleeld values are:
Classic STP Classic STP is enabled on the device. This is the default value.
Rapid STP Rapid STP is enabled on the device.
Multiple STP Multiple STP is enabled on the device.
Type Indicates whether the port is a Boundary or Master port. The possibleeld values are:
Boundary Port Indicates that the port is a Boundary port. A Boundary port attaches MST bridges to LANs in an
outlying region. If the port is a Boundary port, this eld also indicates whether the device on the other side of the link is
working in RSTP or STP mode
Master Port Indicates the port is a master port. A Master port provides connectivity from a MSTP region to the
outlying CIST root.
Interface Priority Denes the Interface priority for the specied instance. The default value is 128.
Path Cost Indicates the port contribution to the Spanning Tree instance. The range should always be 1-200,000,000.
Port State Indicates whether the port is enabled for the specic instance. The possibleeld values are:
Enabled Enables the port for the specic instance.
Disabled Disables the port for the specic instance.
Designated Cost — Indicates that the default path cost is assigned according to the method selected on the Spanning
Tree Global Settings page.
Designated Bridge ID Displays the ID of the bridge that connects the link or shared LAN to the root.
Designated Port ID — Displays the ID of the port on the designated bridge that connects the link or the shared LAN to
the root.
Remain Hops Indicates the hops remaining to the next destination.
2. Select the Instance.
3. Modify the Port Priority and Path Cost.
4. Click . The device information is updated.
To add new interface settings for MSTP:

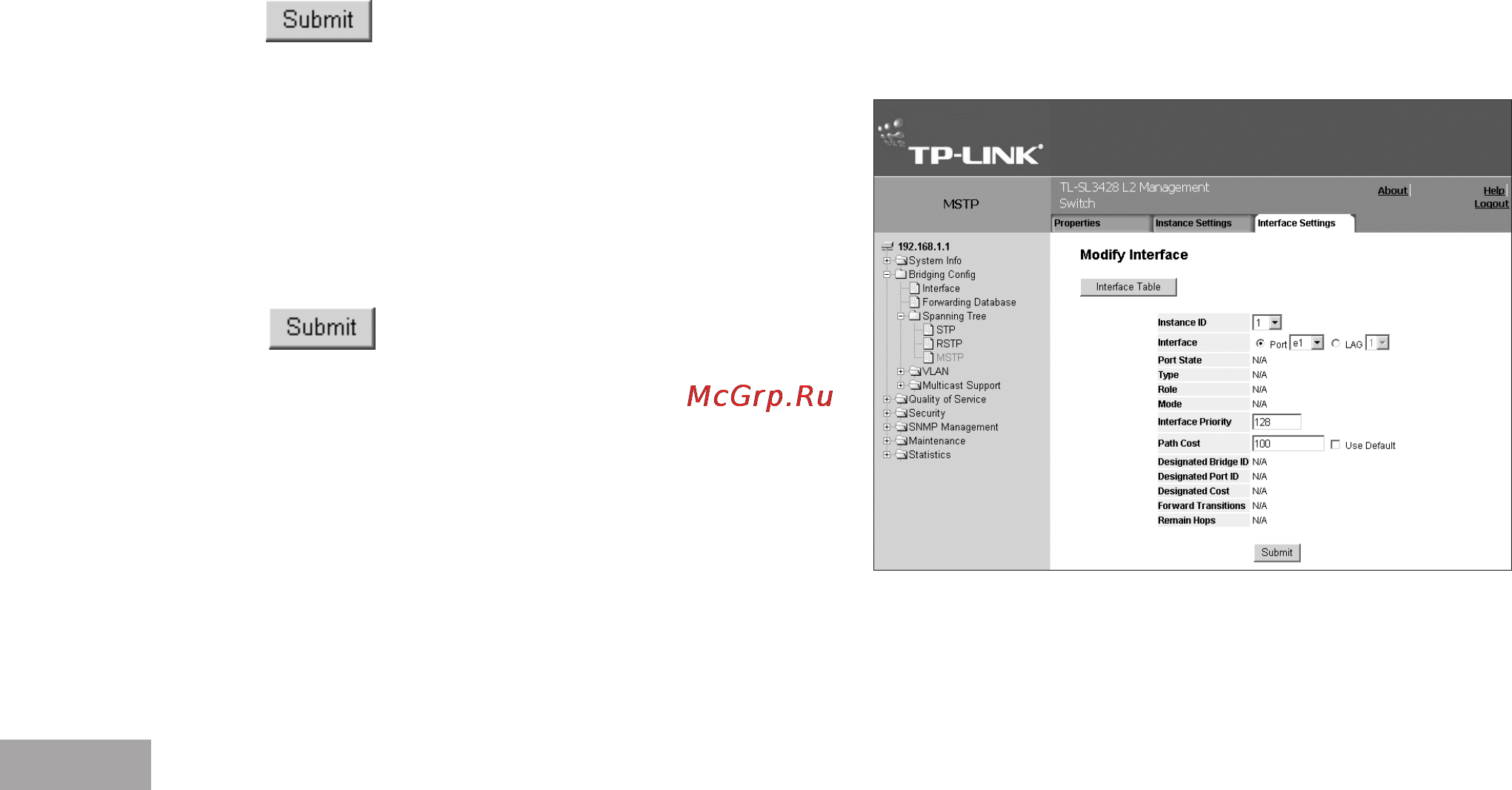

Figure 93: MSTP Interface Settings Page
1. Dene the instance properties elds.
2. Click . The interface settings are added to the
list in the MSTP Interface Settings Page. The device
information is updated.
