SafeStream

Gigabit Broadband VPN Router User GuideTL-R600VPN

Click the Previous button to view the information in the previous screen, click the Next button to

view the information in the next screen.

4.9.3 Connection Status

Choose the menu PPTP VPN Server→Connection Status, you can view the connection status

of each user in the next screen (shown in Figure 4-47).

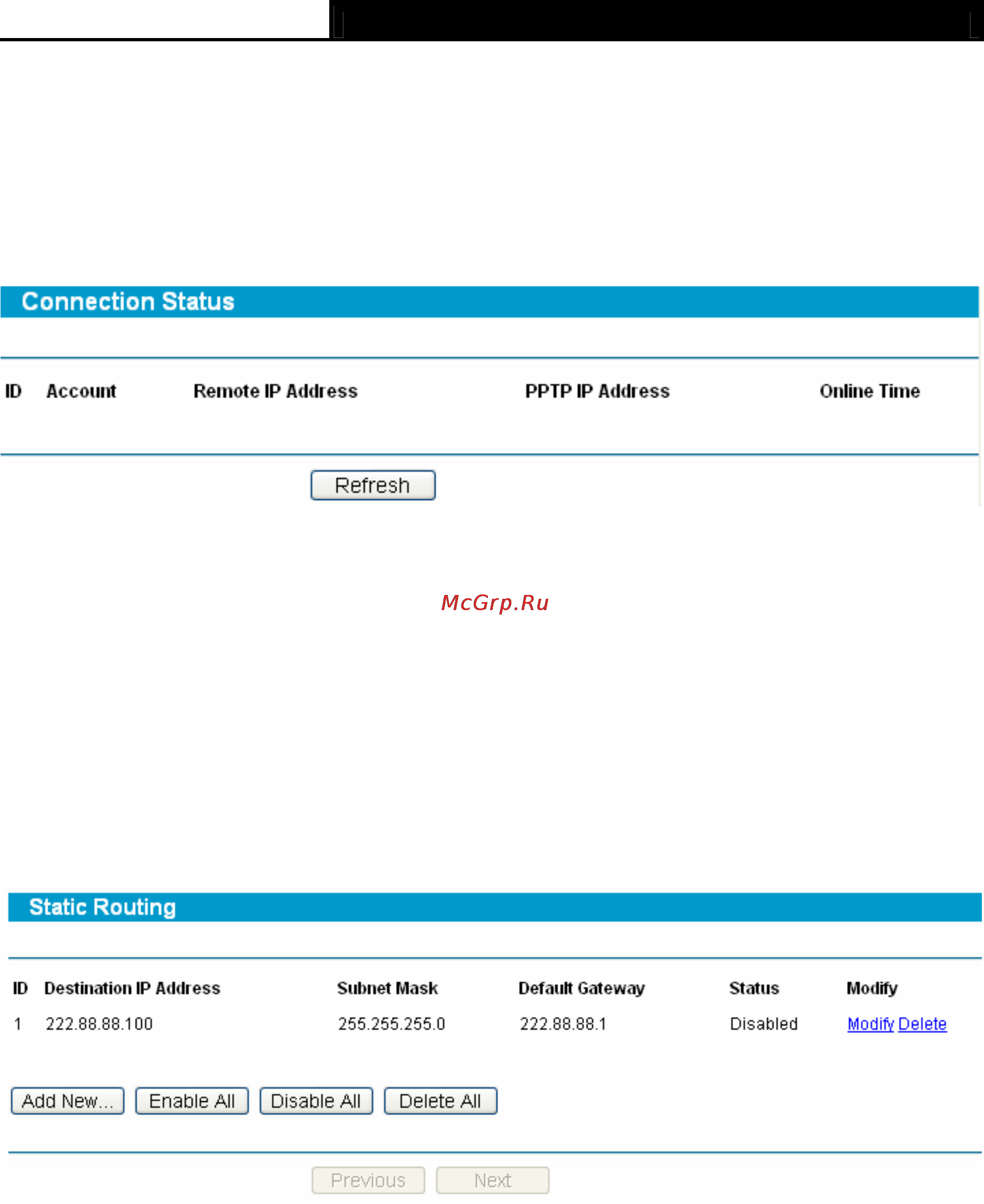

Figure 4-47

¾ Remote IP Address – Displays the original IP address of the remote client.

¾ PPTP IP Address – Displays the IP address the PPTP Server assigned to the remote client.

¾ Online Time – Displays the online time of the PPTP Server.

4.10 Static Routing

Choose menu “Static Routing”, you can configure the static route in the next screen (shown in

Figure 4-48). A static route is a pre-determined path that network information must travel to reach

a specific host or network.

Figure 4-48

¾ Destination IP Address - The “Destination IP Address” is the address of the network or host

that you want to assign to a static route.

¾ Subnet Mask - The “Subnet Mask” determines which portion of an IP address is the network

portion, and which portion is the host portion.

¾ Default Gateway - This is the IP address of the gateway device that allows for contact

between the router and the network or host.

¾ Status - This field displays the status, Enabled means the rule is effective, Disabled means

the rule is ineffective.
