SafeStream

Gigabit Broadband VPN Router User GuideTL-R600VPN

Chapter 2. Hardware installation

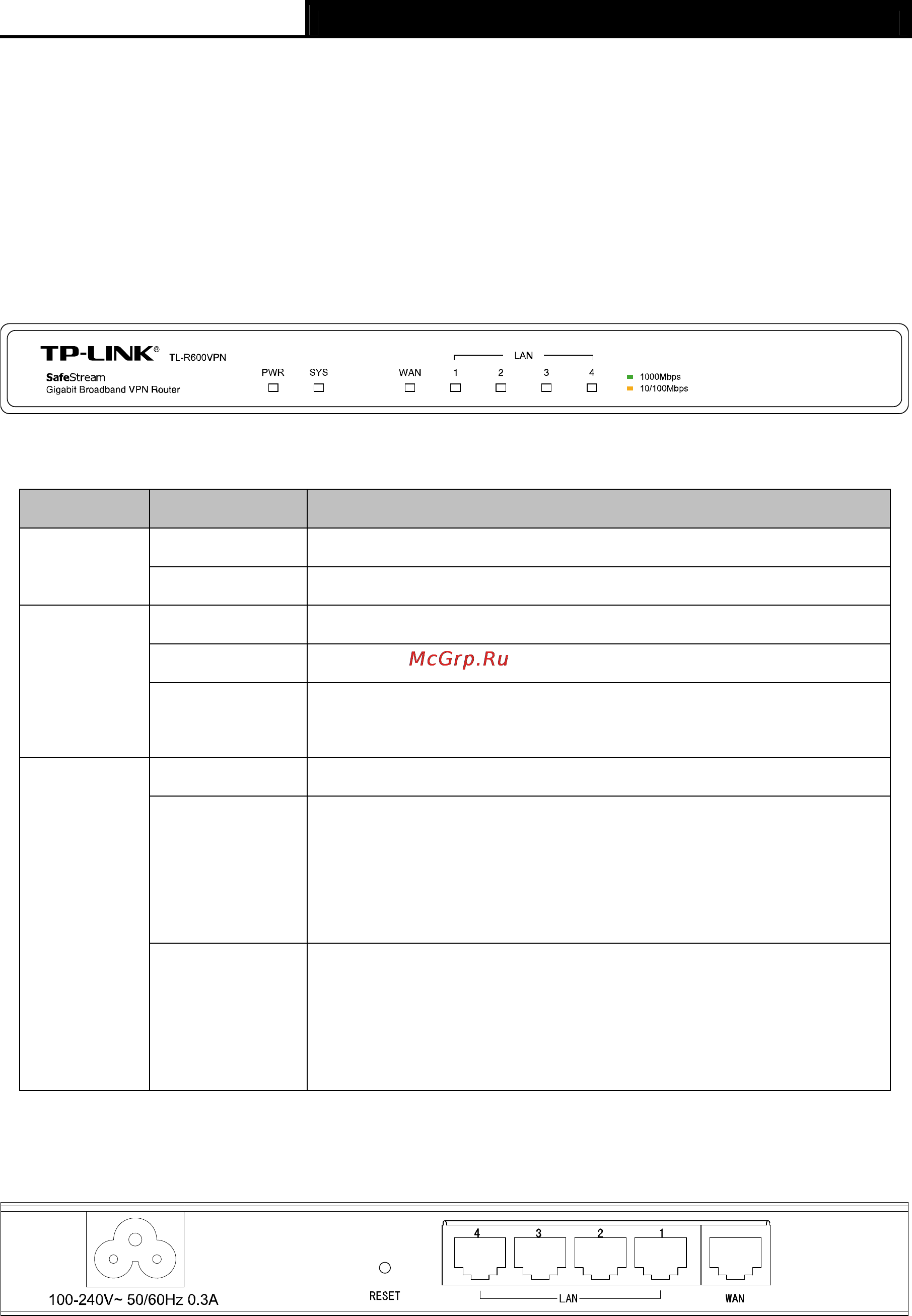

2.1 Panel Layout

2.1.1 The Front Panel

The Router’s LEDs are located on the front panel (Viewed from left to right).

Figure 2-1

LED Descriptions:

Name Status Indication

Not lit The router is powered off.

PWR

Lit up (Green) The router is powered on.

Not lit The router has a hardware error.

Lit up (Green) The router has a hardware error.

SYS

Flashing

(Green)

The router works properly.

Not lit There is no device linked to the corresponding port.

Lit up

(Green/Yellow)

There is a device linked to the corresponding port but no

activity. (Green light indicates the linked device is running at

1000Mbps, and yellow indicates the linked device is running

at 10/100Mbps.)

WAN, LAN

Flashing

(Green/Yellow)

The corresponding port is transmitting or receiving data.

(Green light indicates the linked device is running at

1000Mbps, and yellow indicates the linked device is running

at 10/100Mbps.)

2.1.2 The Rear Panel

The rear panel contains the following features (Viewed from left to right).

Figure 2-2

¾ AC power receptacle: Connect the female of the power cord head here, and the male head

to the AC power outlet.

¾ RESET: Use the button to restore the router to the factory defaults.

There are two ways to reset the router:
