TL-PA211
AV200 Mini Powerline Adapter
3
On
The Adapter has connected to a Powerline network.
Flashing
The Adapter is transmitting or receiving data.
Ethernet LED
Off
The Ethernet port is not connected to a device or the
device is power off.
On
The Ethernet port is linked, but there is no activity.
Flashing
Data is being transmitted through the Ethernet port
Note:
5 minutes later since the device connected to the Homeplug is powered off, the Homeplug will switch to
Power-saving Mode automatically.

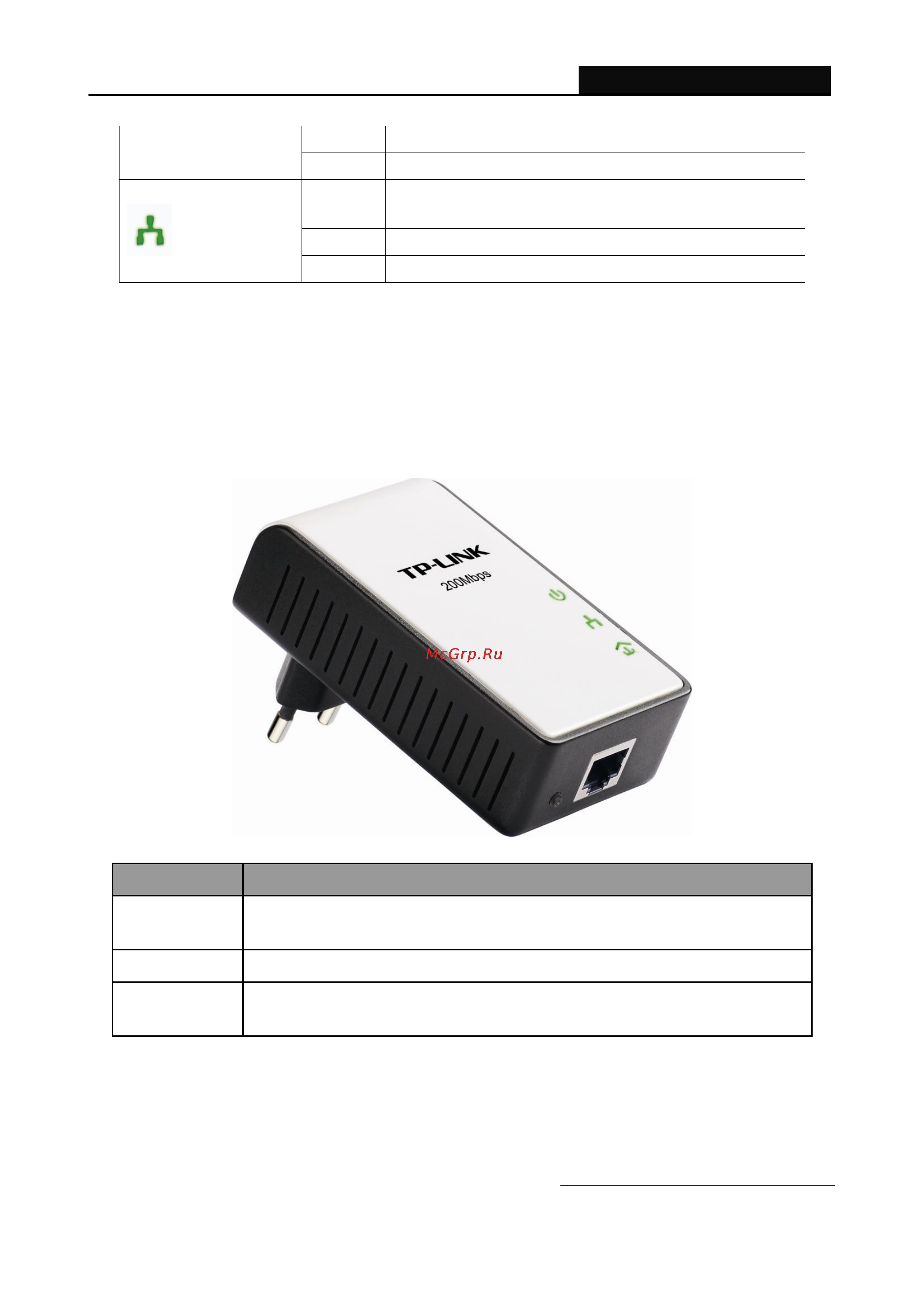

2.3 Physical Interface
There are four physical interfaces on this Mini Powerline Adapter.
Interface
Description
Ethernet
One 10/100Mbps Ethernet port connected to PC LAN card or broadband
device
Power Plug
Power Plug connected to any 100V ~ 240V AC power socket
Pair
Press and hold the Pair button for about 3 to 8 seconds, then release it. The
Power LED will begin flashing.
Note:
1. If you press the Pair button for more than 10 seconds, the Powerline Adapter will leave the network
which it is associated with and its network name assumes a random value. The Power LED turns off
when it disconnects from the Powerline network.
2. For detail information about the Pair button, please refer to Charpter 5 Advanced Feature:How to
