Tp-Link TL-PA211 [9/27] Hardware connection computer

TL-PA211

AV200 Mini Powerline Adapter

Use the Push buttons

2.4 Hardware Connection – Computer

For those computers you wish to be networked by Mini Powerline Adapter, each of the computers must

be properly connected with a Mini Powerline Adapter through an Ethernet (RJ-45) cable.

Following are the steps to properly connect the Mini Powerline Adapter to your computer:

1． Connect the provided Ethernet (RJ-45) cable to the Mini Powerline Adapter‟s Ethernet port.

2． Connect the other end of the Ethernet (RJ-45) cable to you computer‟s LAN port.

3． Plug the Mini Powerline Adapter into a wall socket next to the computer.

4． Turn on your computer.

5． Check and confirm that the Power LED and Ethernet LED on the Mini Powerline Adapter

are ON.

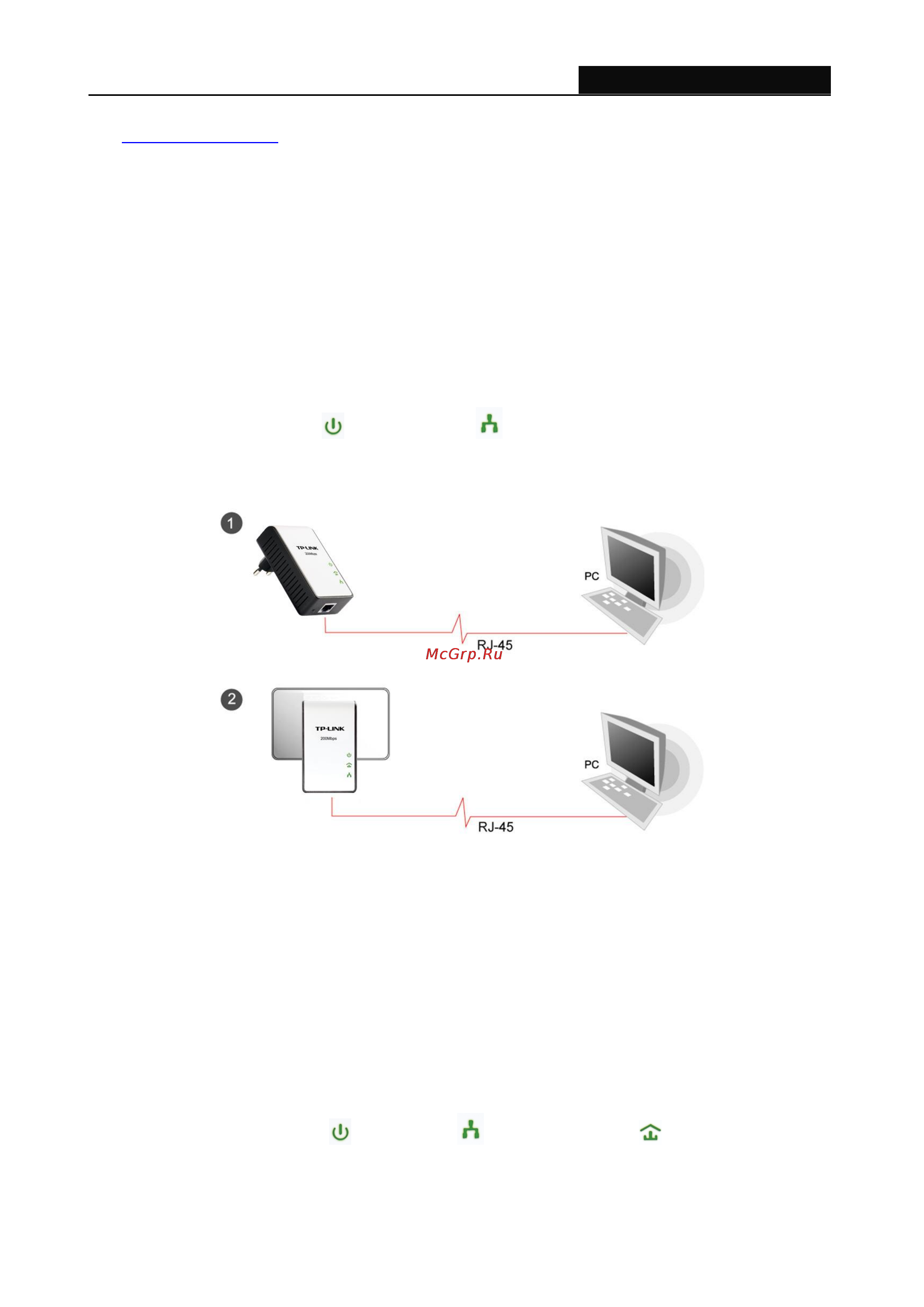

The hardware connection mechanism is shown below:

2.5 Hardware Connection – Internet

This section describes how to connect the Mini Powerline Adapter into your existing ADSL broadband

connection via ADSL Ethernet port. Follow the procedures describe below to connect the Mini Powerline

Adapter to your ADSL broadband connection:

1． Connect the provided Ethernet (RJ-45) cable to the Mini Powerline Adapter‟s Ethernet port.

2． Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL

broadband Router.

3． Plug the Mini Powerline Adapter into a wall socket next to the computer.

4． Turn on your computer.

5． Check and confirm that the Power LED, Ethernet LED, and Powerline LED on the

Mini Powerline Adapter are ON.
