Tp-Link TL-PA101KIT [17/24] Rename

TL-PA101 85Mbps Powerline Ethernet Adapter

y Device Name: Shows the default device name. One may redefine or change the name by

clicking on the name and editing in place or by clicking the “Rename” button.

y Password: Shows the current password of the Powerline Ethernet Adapter.

y Quality: Shows the quality of the Powerline Ethernet Adapter connection.

y Rate (Mbps): Shows the current transmission rate of the selected Powerline Ethernet

Adapter.

y MAC Address: Shows the Powerline Ethernet Adapter’s MAC address.

¾ Rename: Click to change the name of the selected Powerline Ethernet Adapter.

¾ Enter Password: Shows the supplied Powerline Ethernet Adapter’s password (Initially left blank). To

set the Powerline Ethernet Adapter password (Which is required when creating a private network),

click and select the device shown in the lower panel and click on the “Enter Password” button.

Follow the pop-up dialog box to complete your password setting.

¾ Add: Click this button to add a remote Powerline Ethernet Adapter to your network that is not on the

lower panel displayed list. You will advice to locate the passwords for all Powerline Ethernet Adapter

you wish to manage and add them to the local logical network by clicking the “Add” button. Follow

the pop-up dialog box to complete your setting.

¾ Scan: Click the “Scan” button to perform an immediate search of the Powerline Ethernet Adapter

connected to the computer. The Management Utility will automatically perform the scanning process

and update the display every few seconds by default.

4.1.1 Rename

This Management Utility allows you to change the name of the listed Powerline Ethernet Adapter. Click

and select the Powerline Ethernet Adapter you wish to change from the list, then click on the “Rename”

tab and editing-in-place to change the name.

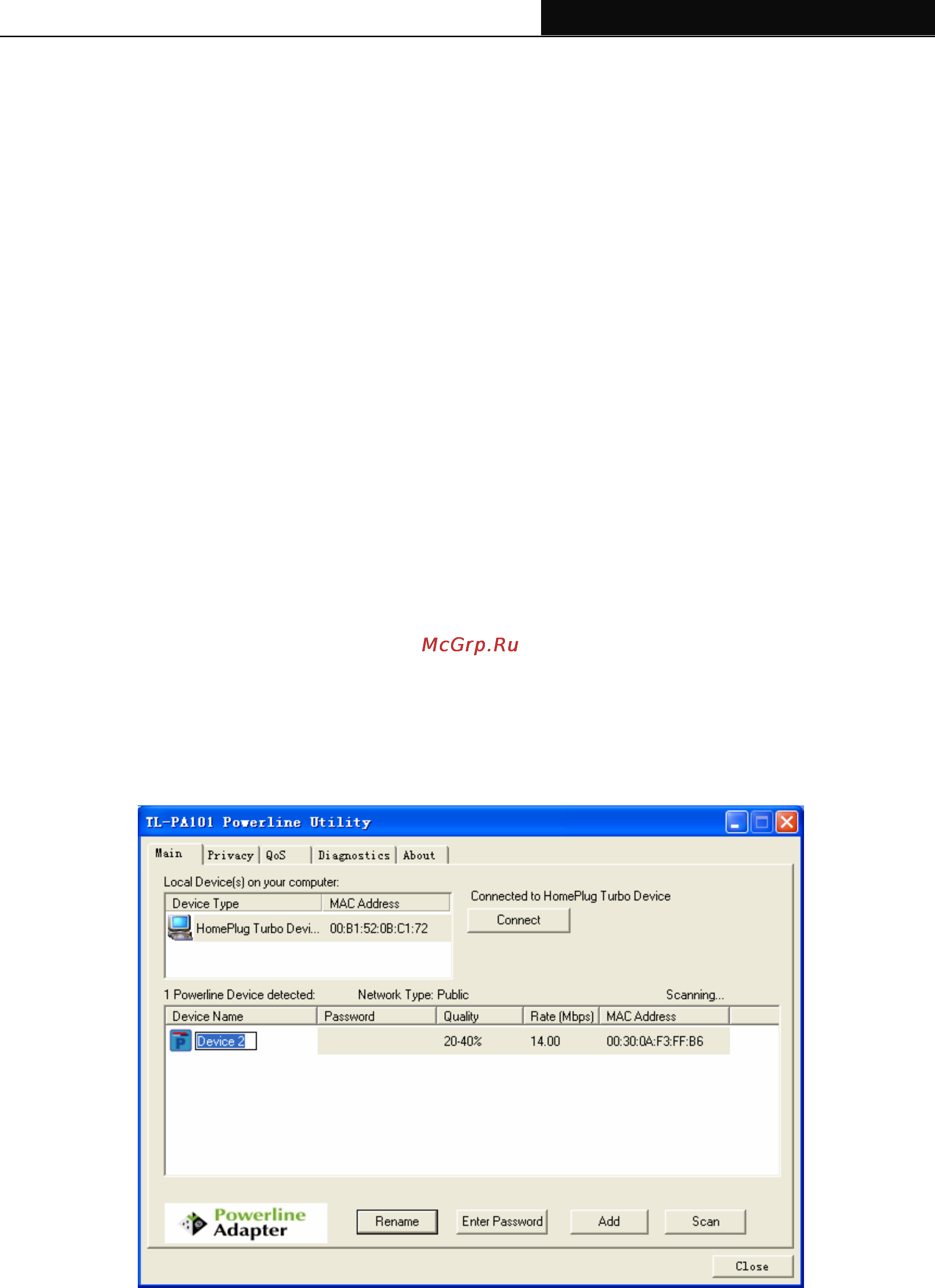

4.1.2 Enter Password

To set or change your Powerline Ethernet Adapter’s password, click and select the Powerline Ethernet

Adapter you wish to change from the list, then click on the “Enter Password” tab, the following screen

display
