TL-PA101 85Mbps Powerline Ethernet Adapter

2.5 Hardware Connection – Internet

This section describes how to connect the Powerline Ethernet Adapter into your existing ADSL

broadband connection via ADSL Ethernet port. Follow the procedures describe below to connect the

Powerline Ethernet Adapter to your ADSL broadband connection:

1. Power off your PC or Notebook.

2. Connect the provided Ethernet (RJ-45) cable to the Powerline Ethernet Adapter’s Ethernet port.

3. Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL

broadband Router.

4. Plug the Powerline Ethernet Adapter into a wall socket next to the computer.

5. Turn on your computer.

6. Check and confirm that the Power, Powerline and Ethernet LEDs on the Powerline Ethernet

Adapter are ON.

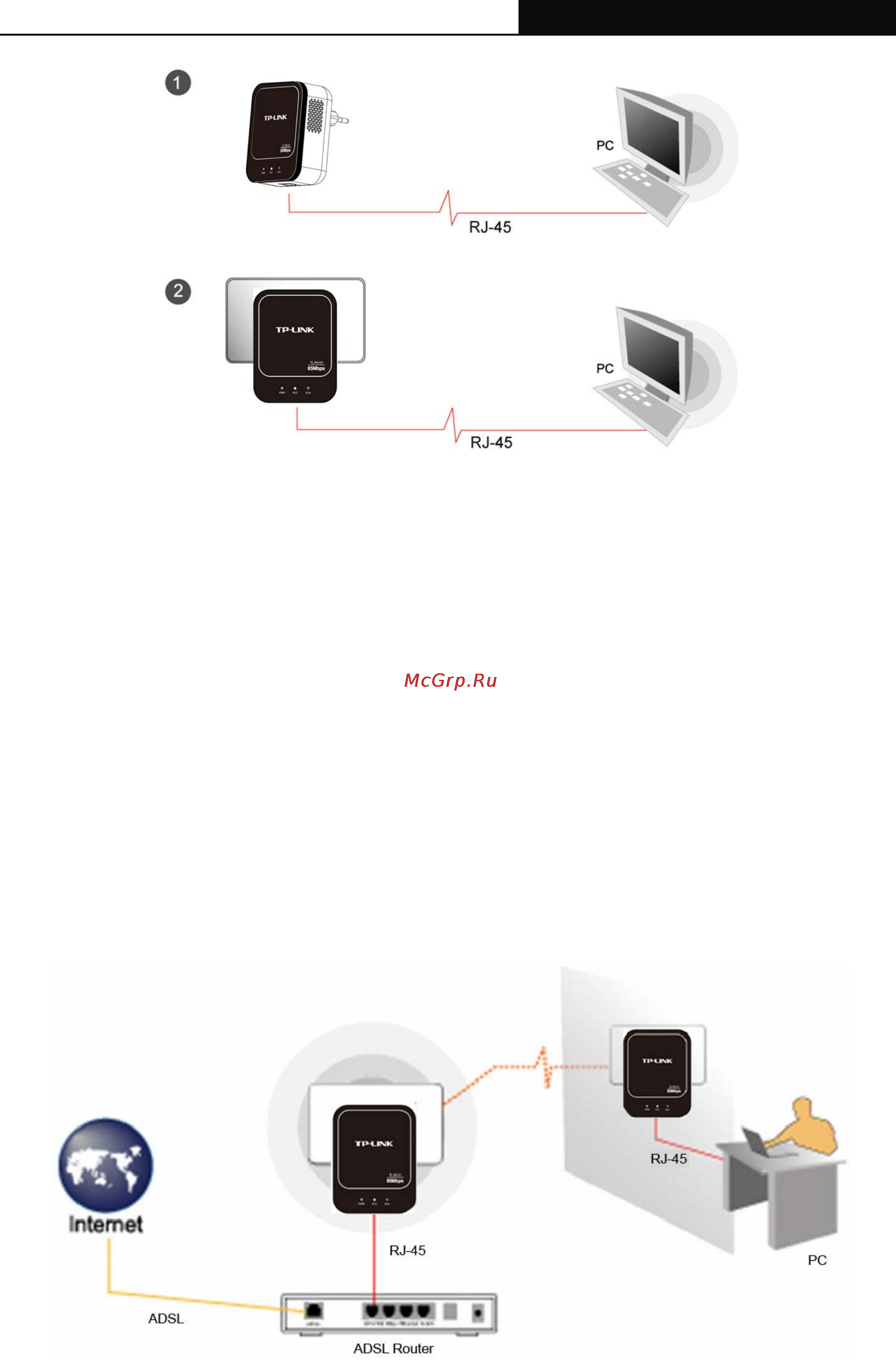

The hardware connection mechanism is shown below:
