Tp-Link TL-PA101KIT [18/24] Add device

TL-PA101 85Mbps Powerline Ethernet Adapter

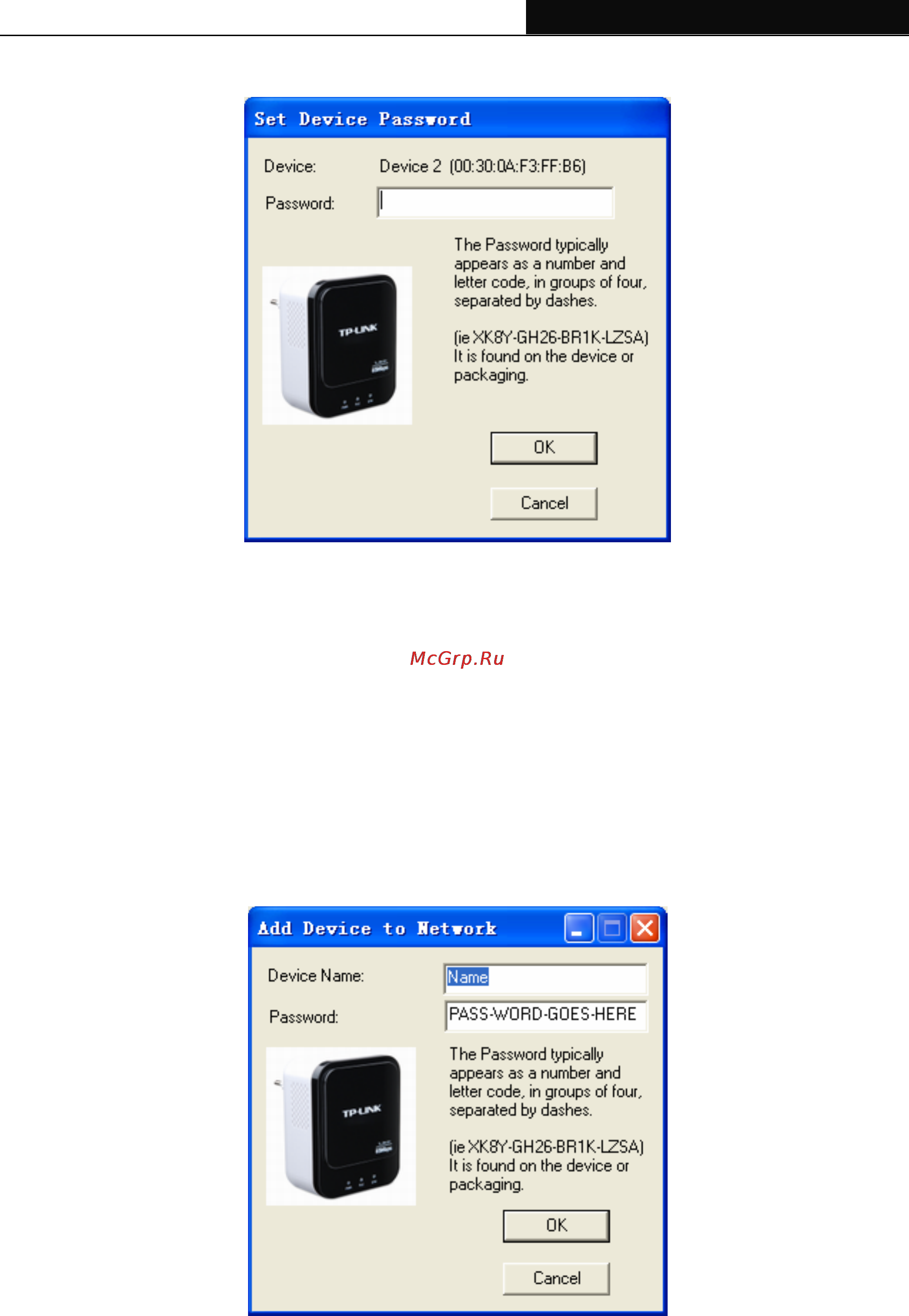

Enter your Password (Take note to the password format) and click “OK” after setup.

) Note:

The Powerline Ethernet Adapter device must be present on the power line (plugged in) in order for the

password to be confirmed and added to the network. If the Powerline Ethernet Adapter device could not

be located, a warning message will be shown.

4.1.3 Add Device

The following dialog box pop-up when clicking the “Add” button under Main configuration homepage.

The dialog box allows you to enter both the selected device’s name and password. Noted that the

Powerline Ethernet Adapter must be present on the power grid in order to activate the set password and

added to the local network.

Enter your Device Name and Password (Take note to the password format) and click “OK” after setup.

The following screen display after the naming and password setting process, which is also the

Diagnostics configuration homepage.
