Tp-Link TL-PA101KIT [21/24] Diagnostics

TL-PA101 85Mbps Powerline Ethernet Adapter

QoS requirements are different for various data types such as streaming video or music, voice and raw

data. To provide higher QoS for streaming data, priority levels can be set using tags at the beginning of

data frames. Virtual Local Area Network (Vlan) 802.1p priority tags on Ethernet frames are used to

specify 8 (0~7) levels of ‘user priority’. Powerline AV powerline allows for 4 levels of Channel Access

Priority (CAP(0-3)). Therefore, the 8 levels of VLAN Ethernet tags must be mapped to the 4 levels of

CAP priority, where CAP 3 is the highest priority and CAP 0 is the lowest. CAP 3 priority might be used

for voice and network management frames, CAP 2 is used for streaming video-and must while CAP 1

can CAP 0 are used for data. Mapping VLAN tags to CAP levels is easily done using the VLAM Priority

Mapping function on the QoS tab window.

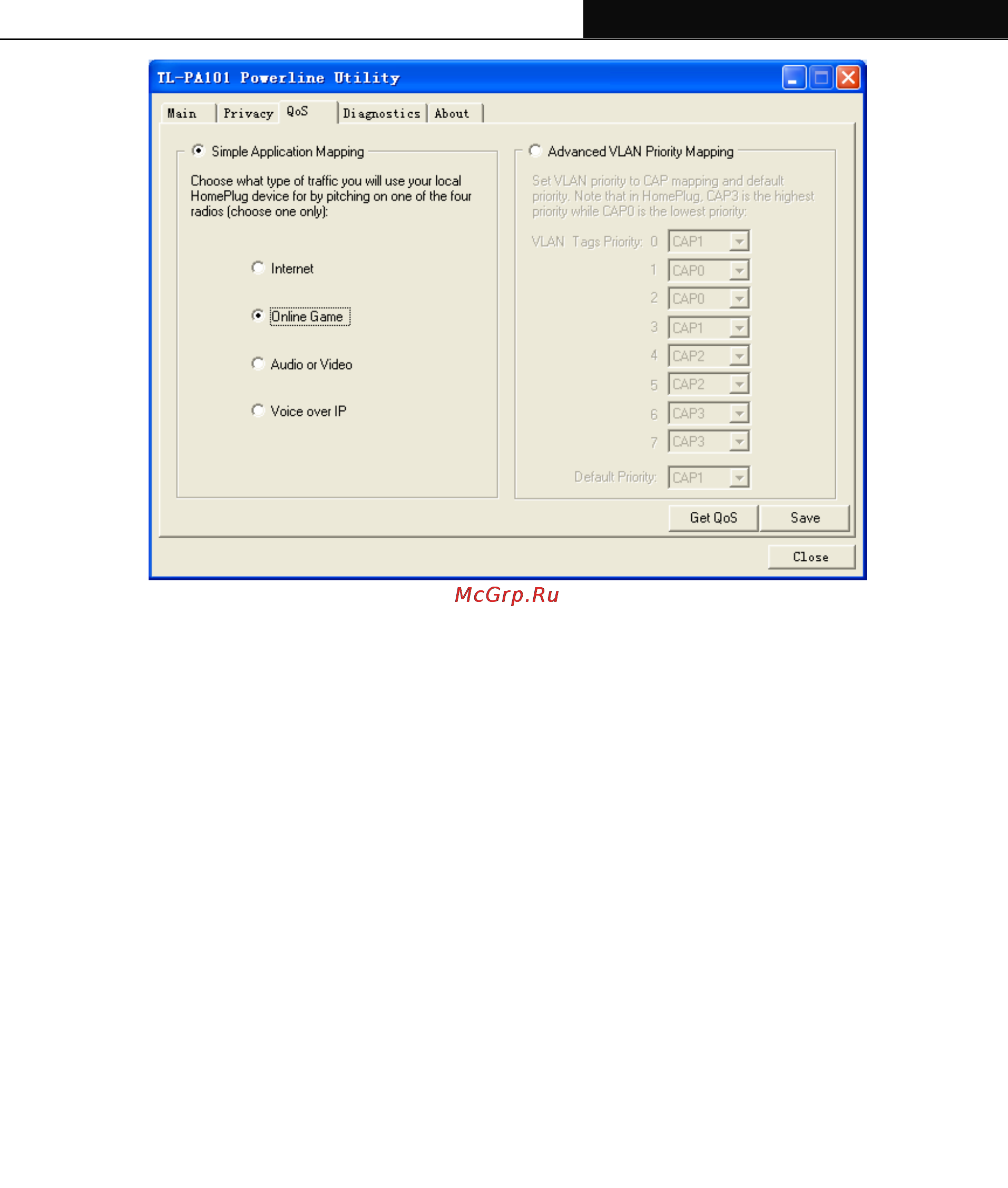

Simple Application Mapping: The group allows you to choose the type of traffic you will use your local

HomePlug device for by pitching on one of the following four radios. Please select the radio type

according to your demand.

Advanced VLAN Priority Mapping: The group sets VLAN priority to CAP mapping and default

priority.Note that in HomePlug, CAP 3 is the highest priority while CAP 0 is the lowest priority. The

values shown in VLAN Tags Priority are the default settings for the first running.

Get QoS：Click this button and you will see the current QoS information showed below Advanced

VLAN Priority Mapping .

4.4 Diagnostics

The Diagnostics homepage shows the System Information and Remote Device History of all remote

devices seen over a period of time which are only readable. Click on the “Diagnostics” tab and the

following screen display.
