Spanning Tree Algorithm Configuration
3-119
3
Web – Click Spanning Tree, MSTP, Port or Trunk Information. Select the required
MST instance to display the current spanning tree values.

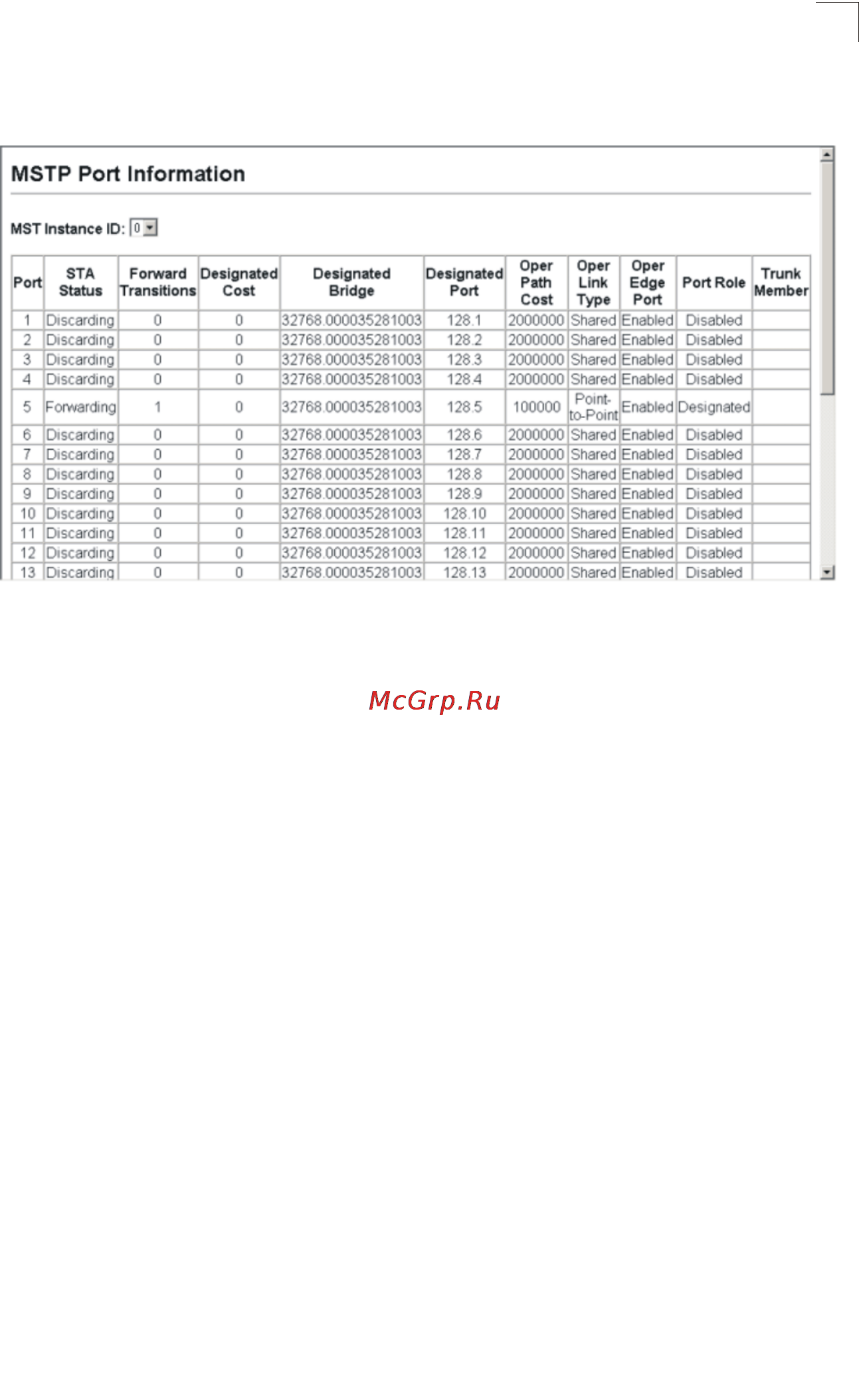

Figure 3-69 Displaying MSTP Interface Settings
