TL-WR340G/TL-WR340GD 54M Wireless Router User Guide
Chapter 2. Hardware Installation
2.1 The Front Panel

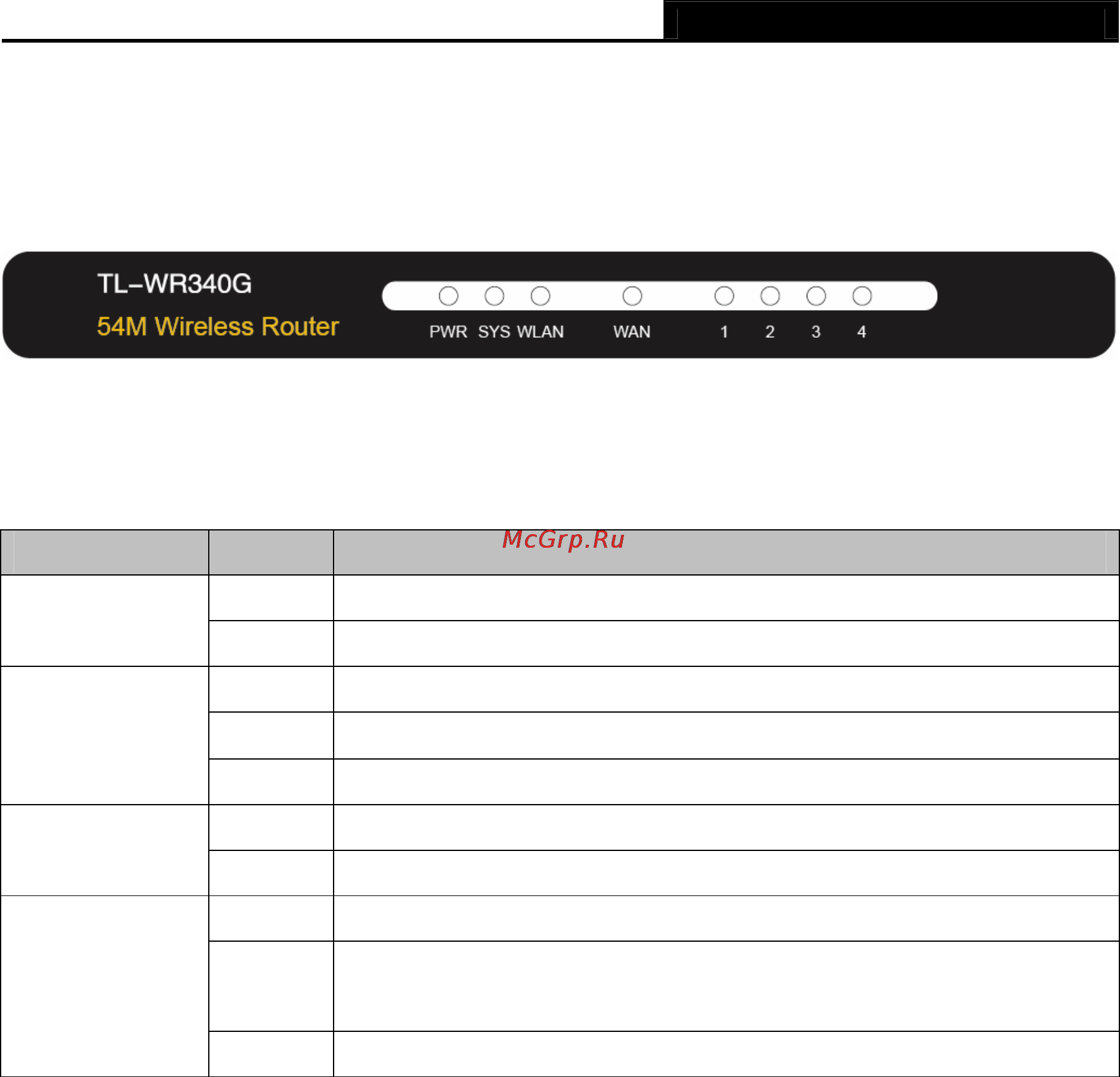

Figure 2-1
The Router’s LEDs are located on the front panel (View from left to right).
LED Explanation:
Name Status Indication
Off No Power
PWR
On Power on
Off The Router has an error
On The Router is initializing
SYS
Flashing The Router is working properly
Off The Wireless function is disabled
WLAN
Flashing The Wireless function is enabled
Off There is no device linked to the corresponding port
On
There are devices linked to the corresponding ports but no data
transmitted or received.
WAN/1-4 (LAN)
Flashing Sending or receiving data over corresponding port
