TL-WR340G/TL-WR340GD 54M Wireless Router User Guide

3.9.2 ARP List

To manage the computer, you could observe the computers in the LAN by checking the

relationship of MAC address and IP address on the ARP list, and you could configure the items on

the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding

entries (shown in Figure 3-49).

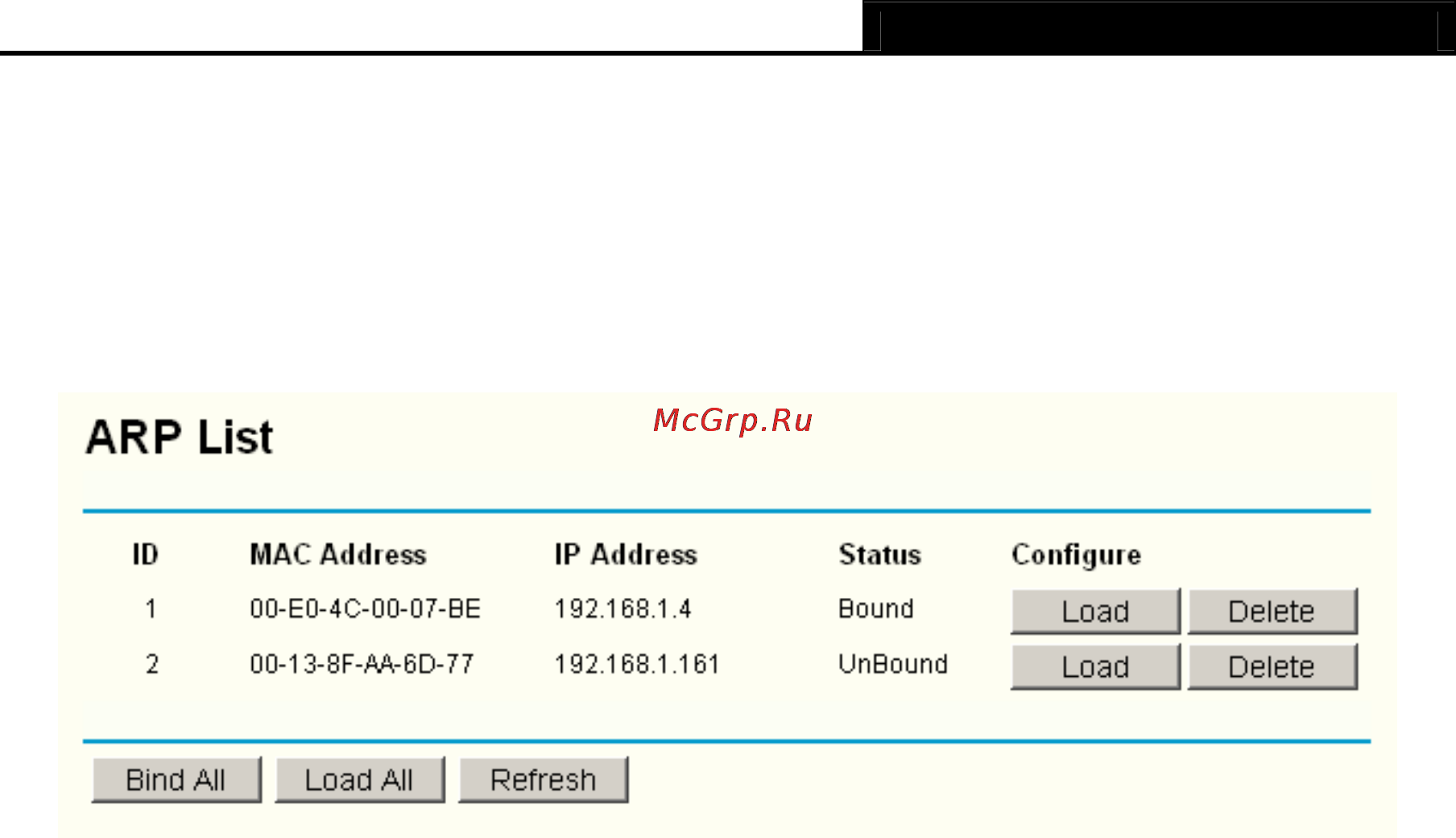

Figure 3-49 ARP List

¾ MAC Address - The MAC address of the controlled computer in the LAN.

¾ IP Address - The assigned IP address of the controlled computer in the LAN.

¾ Status - Enabled or Disabled of the MAC address and IP address binding.

¾ Configure - Load or delete item.

¾ Load - Load the item to the IP & MAC Binding list.

¾ Delete - Delete the item.

1. Click the Bind All button to bind all the current items, available after enable.

2. Click the Load All button to load all items to the IP & MAC Binding list.

3. Click the Refresh button to refresh all items.

)

Note:

An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been

loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without

interference to the IP & MAC Binding list

3.10 Routing

A static route is a pre-determined path that network information must travel to reach a specific

host or network. To add or delete a route, work in the area under the Static Routing page (shown

in Figure 3-50).
