TL-WR340G/TL-WR340GD 54M Wireless Router User Guide
45
¾ Web Management Port - Web browser access normally uses the standard HTTP service
port 80. This router’s default remote management Web port number is 80. For greater
security, you can change the remote management Web interface to a custom port by
entering that number in this box provided. Choose a number between 1024 and 65534, but
do not use the number of any common service port.
¾ Remote Management IP Address - This is the current address you will use when
accessing your router from the Internet. The default IP Address is 0.0.0.0. It means this
function is disabled. To enable this function, change the default IP Address to another IP
Address as desired.
To access the router, you will type your router's WAN IP Address into your browser's Address
(in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For
example, if your Router's WAN address is 202.96.12.8 and you use port number 8080, enter in
your browser: http://202.96.12.8:8080. You will be asked for the router's password. After
successfully entering the password, you will be able to access the router's Web-based utility.
)
Note:
Be sure to change the router's default password to a very secure password.
3.8.6 Advanced Security
Using Advanced Security page (shown in Figure 3-43), you can protect the router from being
attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood from LAN.

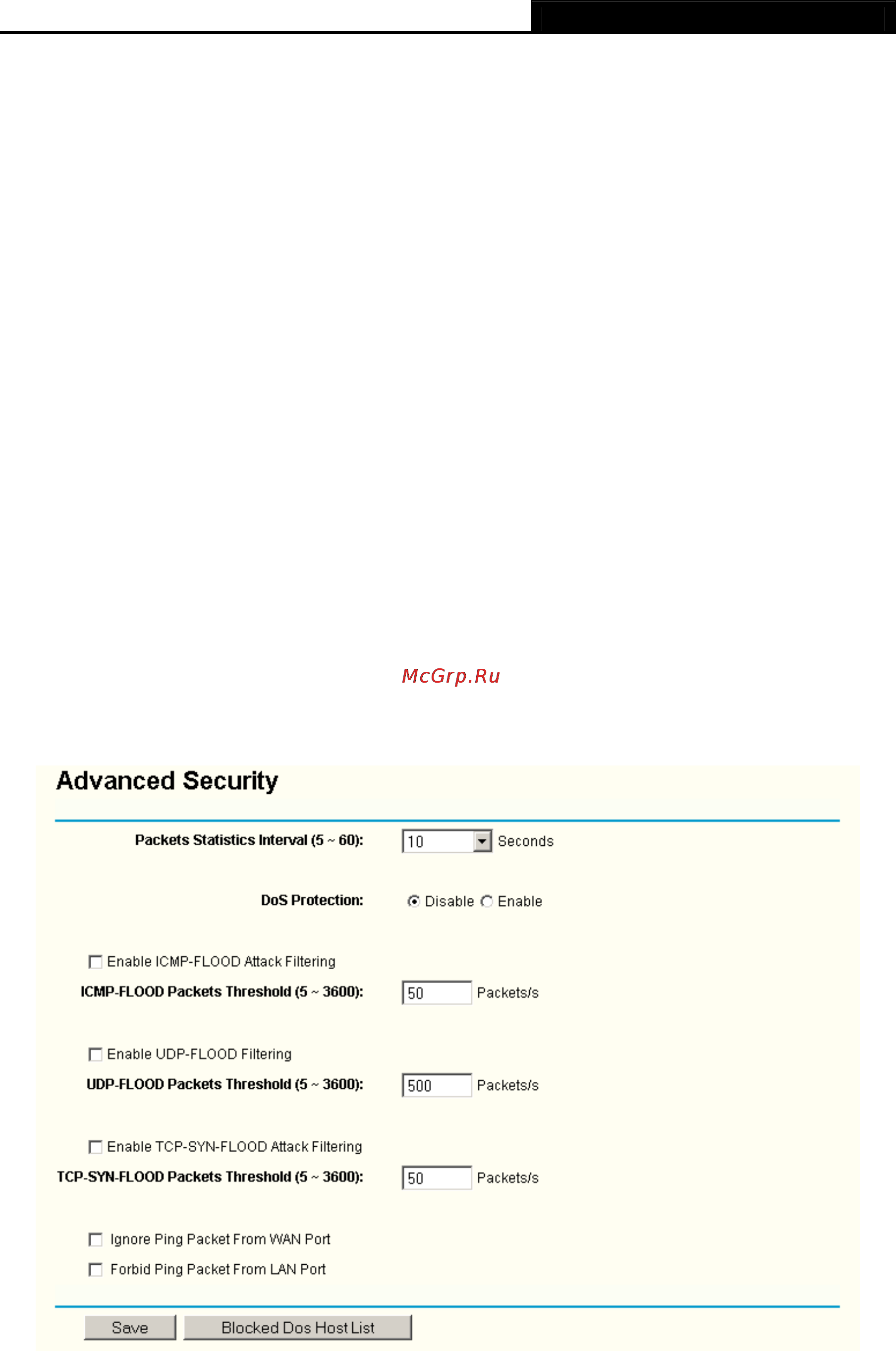

Figure 3-43 Advanced Security settings
¾ Packets Statistic interval (5 ~ 60) - The default value is 10. Select a value between 5 and
