TL-WR340G/TL-WR340GD 54M Wireless Router User Guide

Now, you can run the Ping command in the command prompt to verify the network

connection between your PC and the Router. The following example is in Windows XP

Operating System.

2. Open a command prompt, From the Start menu on your desktop, select run tab, type

cmd in the field, and type ping 192.168.1.1 on the screen that appears, and then press

Enter.

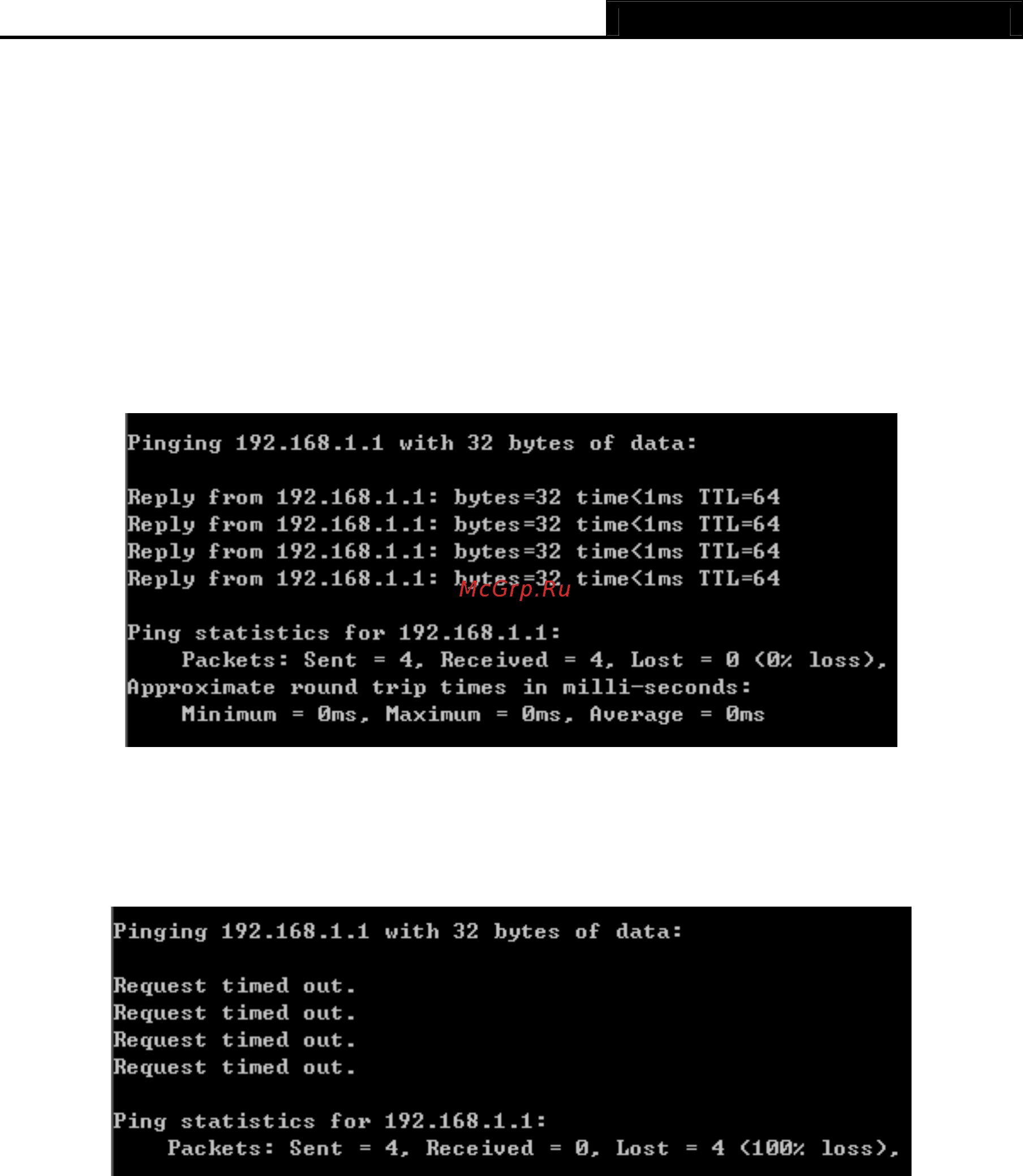

If the result displayed is similar to that shown in Figure below, the connection between your PC

and the Router has been established.

Figure 2-8

If the result displayed is similar to that shown in figure below, it means that your PC has not

connected to the Router.

Figure 2-9

Please check it following these steps:

)

Note:

¾ If the connection between your PC and the Router is correct?

The LEDs of LAN port which you link to on the devicer and LEDs on your PC's adapter should be

lit.

¾ If the TCP/IP configuration for your PC is correct?

If the Router's IP address is 192.168.1.1, your PC's IP address must be within the range of

192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1.
