TL-WR340G/TL-WR340GD 54M Wireless Router User Guide
36

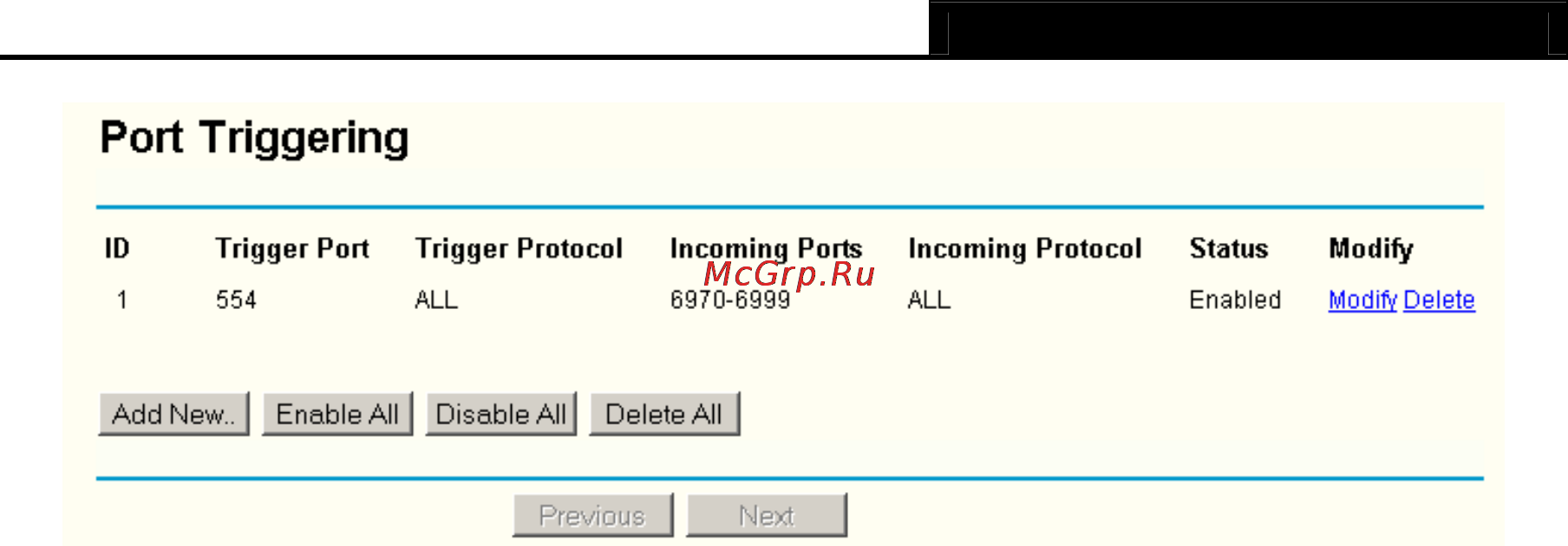

Figure 3-30 Port Triggering
Once configured, operation is as follows:
1. A local host makes an outgoing connection using a destination port number defined in the
Trigger Port field.
2. The router records this connection, opens the incoming port or ports associated with this
entry in the Port Triggering table, and associates them with the local host.
3. When necessary the external host will be able to connect to the local host using one of the
ports defined in the Incoming Ports field.
¾ Trigger Port - The port for outgoing traffic. An outgoing connection using this port will
"Trigger" this rule.
¾ Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all
protocols supported by the router).
¾ Incoming Ports Range - The port or port range used by the remote system when it
responds to the outgoing request. A response using one of these ports will be forwarded to
the PC that triggered this rule. You can input at most 5 groups of ports (or port section).
Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085,
3010-3030.
¾ Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or
ALL (all protocols supported by the router).
¾ Status - The status of this entry either Enabled or Disabled.
To add a new rule, enter the following data on the Port Triggering screen.
1. Click the Add New button. (pop-up Figure 3-31)
2. Enter a port number used by the application when it generates an outgoing request.
3. Select the protocol used for Trigger Port from the pull-down list, either TCP, UDP, or All.
4. Enter the range of port numbers used by the remote system when it responds to the PC's
request.
5. Select the protocol used for Incoming Ports Range from the pull-down list, either TCP or
UDP, or All.
6. Select the Enable checkbox to enable.
7. Click the Save button to save the new rule.
