10/100 Fast Ethernet Switch User’s Guide
4
Desktop or Shelf Installation
When installing the Switch on a desktop or shelf, the rubber feet
included with the device must be first attached. Attach these cushioning
feet on the bottom at each corner of the device. Allow enough ventilation
space between the device and the objects around it.

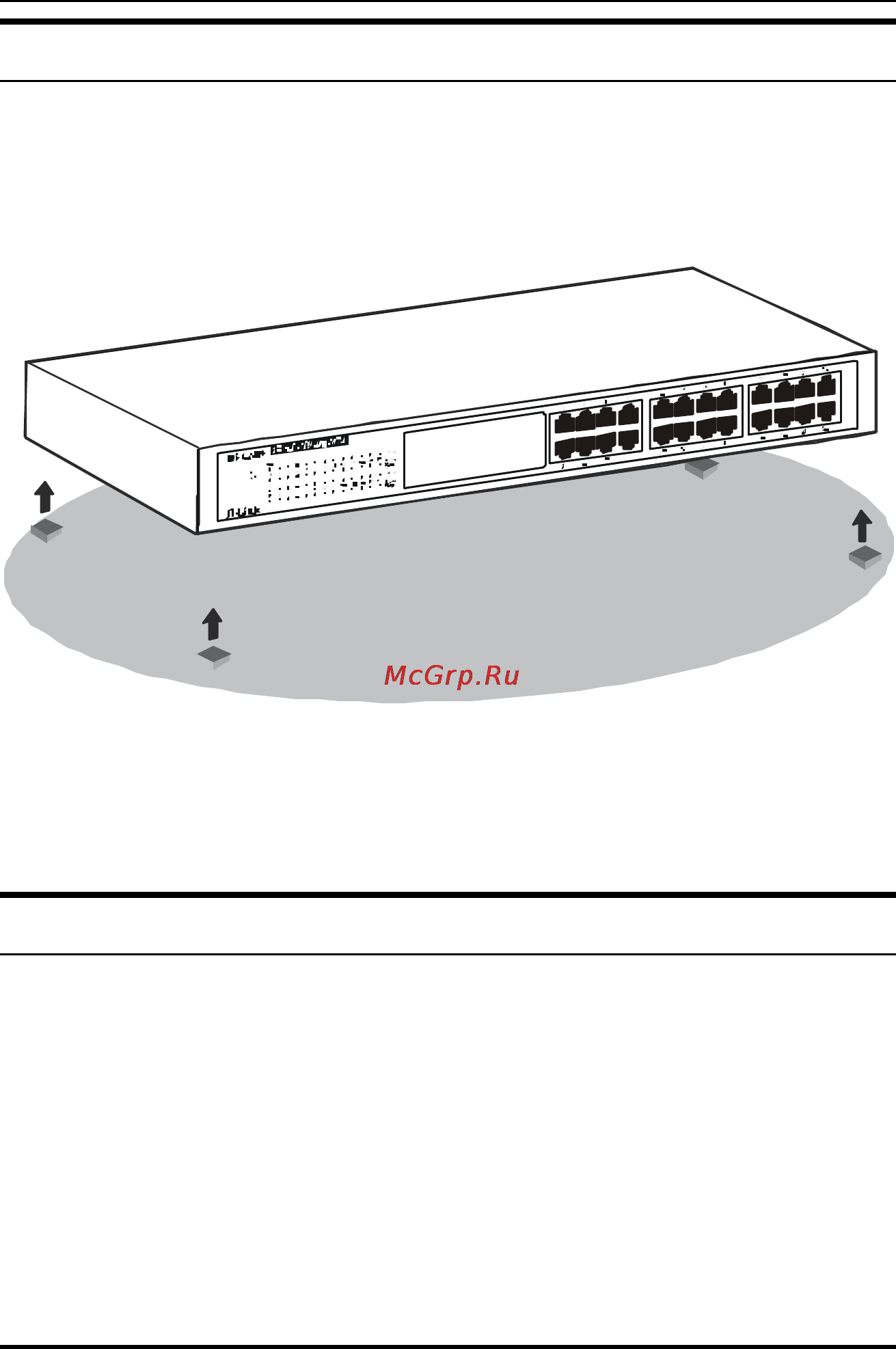

Figure 2.1 10/100 Fast Ethernet Switch installed on a Desktop or
Shelf
Rack Installation
The Switch can be mounted in an EIA standard size, 19-inch rack,
which can be placed in a wiring closet with other equipment. To install,
attach the mounting brackets on the switch’s front panel (one on each
side) and secure them with the screws provided.
