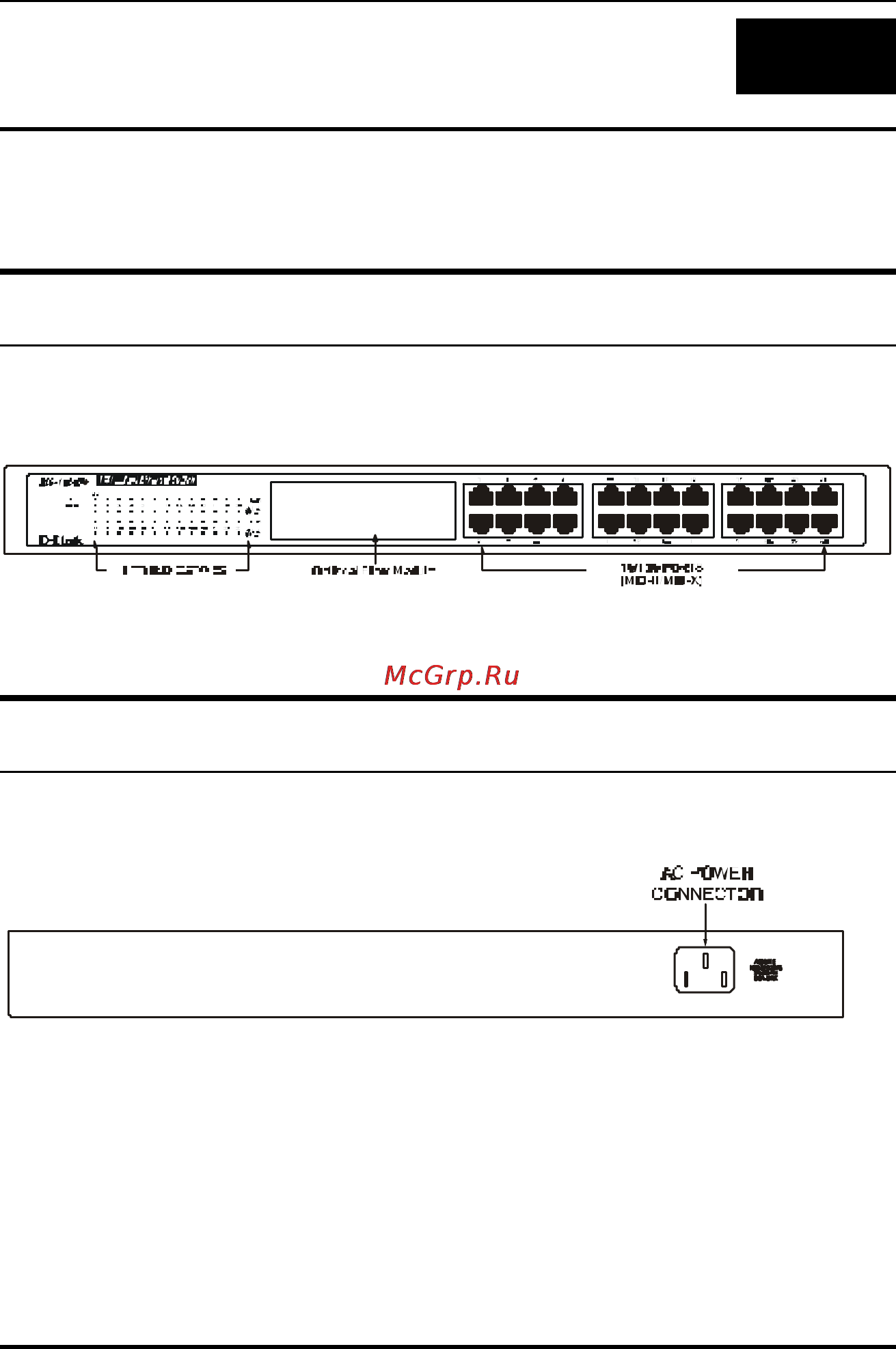

D-Link DES-1016R+ [13/20] Front panel

10/100 Fast Ethernet Switch User’s Guide

2 IDENTIFYING EXTERNAL

COMPONENTS

Front Panel

The front panel of the Switch consists of 16 (DES-1016R+) or 24

(DES-1024R+) 10/100 Mbps MDI-II/MDI-X ports and LED indicators.

Figure 3.1 Front panel view of the DES-1024R+ Switch

Rear Panel

The rear panel of the Switch consists of an AC power connector.

Figure 3.2 Rear panel view of the DES-1024R+ switch

♦ AC Power Connector This is a three-pronged connector that

supports the power cord. Plug in the female connector of the

provided power cord into this connector, and the male into a

power outlet. Supported input voltages range from 100 ~ 240 VAC

at 50 ~ 60 Hz.
